Hood Primary and Secondary Latch Replacement

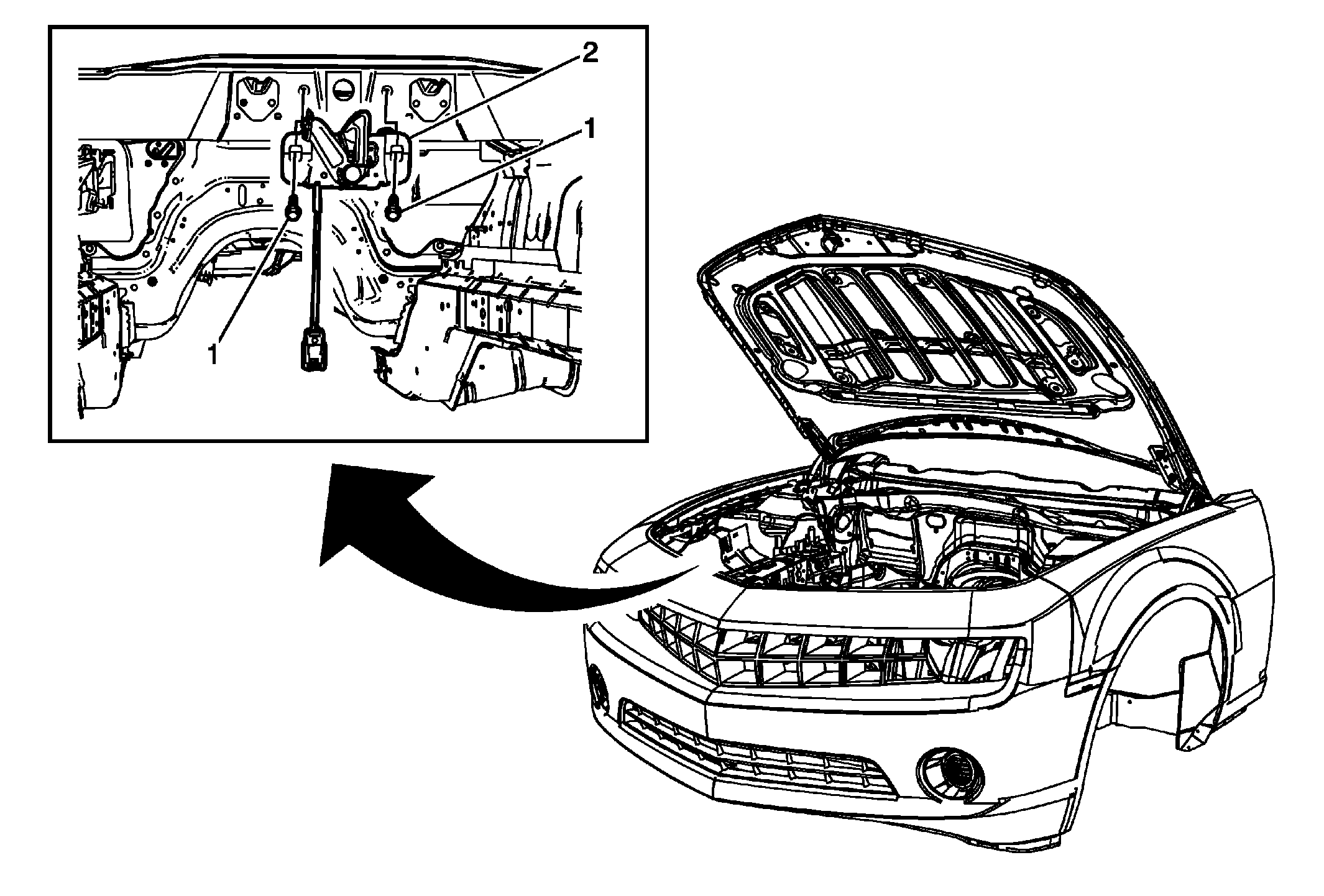

Fig 1: Hood Primary & Secondary Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement .
1	Hood Primary and Secondary Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
2	Hood Primary and Secondary Latch Procedure  Disconnect the hood release cable and the electrical connector.
