Hood Insulator Replacement

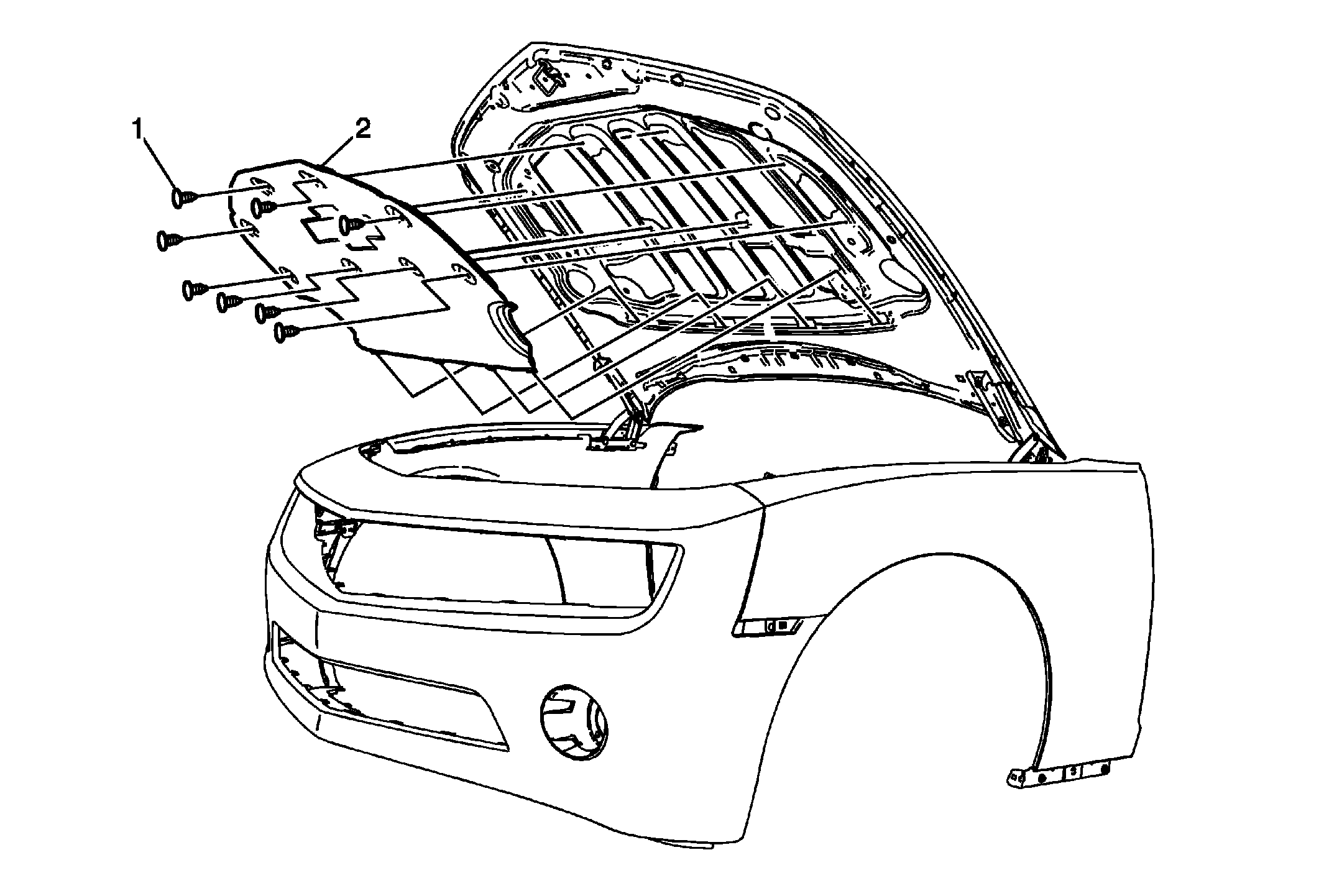

Fig 1: Hood Insulator And Retainers
GM2166573Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Hood Insulator Plastic Retainer (Qty: 8)
2 Hood Insulator
Procedure
Ensure the 4 integral tabs are secured to the hood.
