Fuel Tank Filler Pipe Housing Replacement

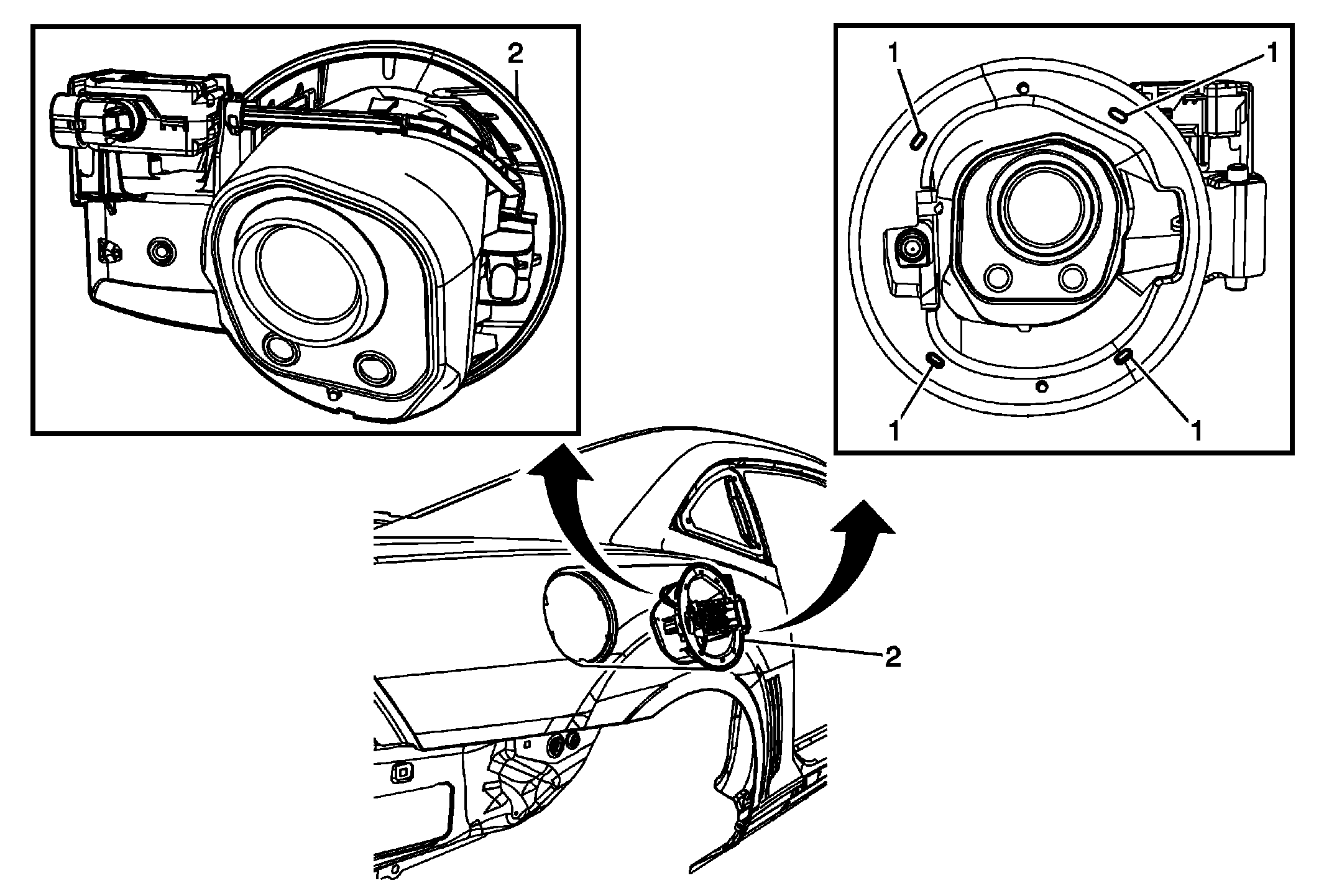

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the filler pipe. Refer to Fuel Tank Filler Pipe Replacement , for the 3.6L engine or Fuel Tank Filler Pipe Replacement for the 6.2L, or 7.0L engine. |
|
| 1 | Fuel Tank Filler Pipe Housing Retainer (Qty: 4) Procedure Using a flat-bladed tool that fits into the 4 depression, break through the 4 depressions with light pressure and then pry the clips free to release the fuel tank filler pipe housing from the panel. TIP: The fuel tank filler pipe housing once removed cannot be reused and must be replaced with a NEW fuel tank filler pipe housing. |
| 2 | Fuel Tank Filler Pipe Housing TIP: Disconnect the electrical connector. |
