Front Side Door Lower Auxiliary Weatherstrip Replacement

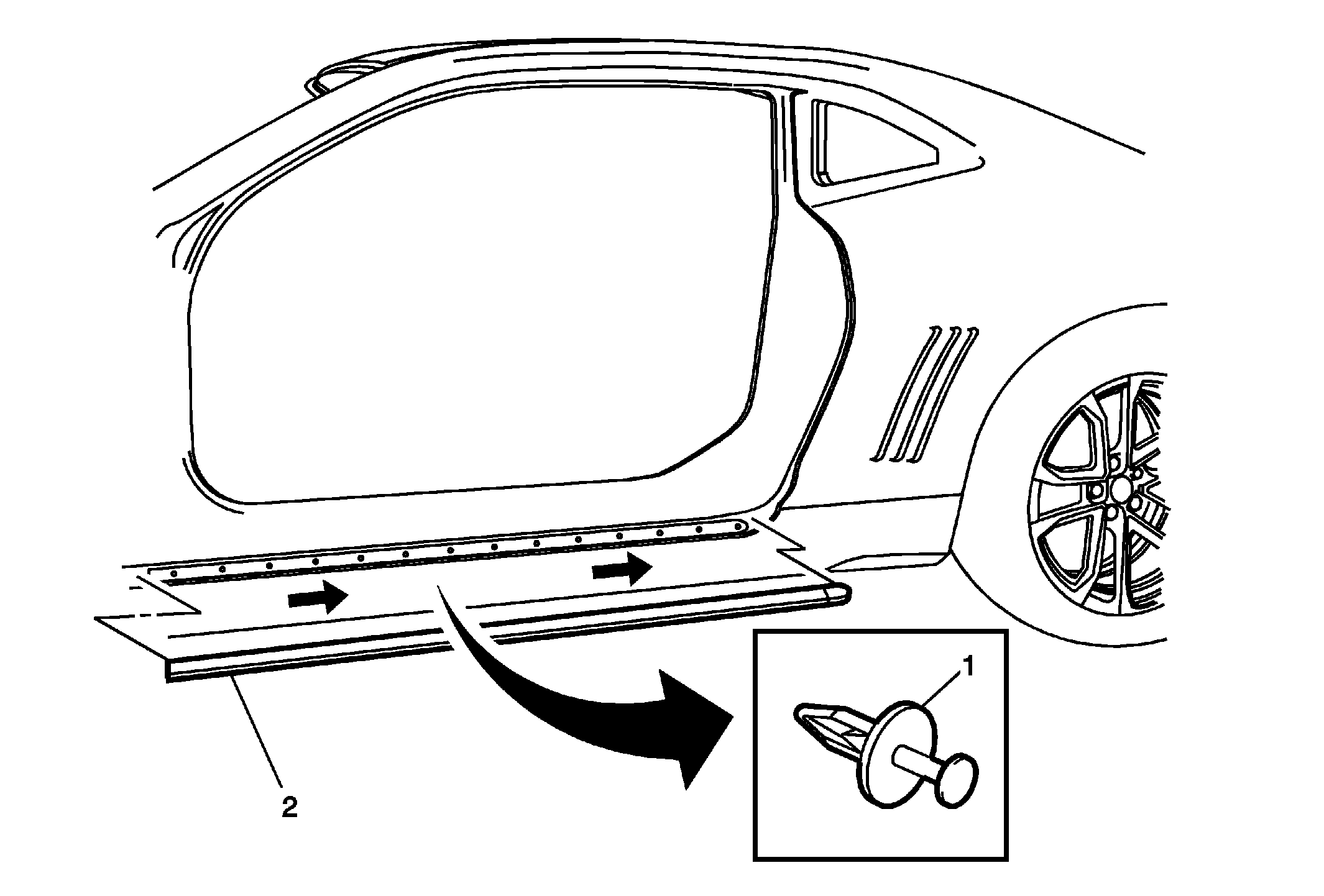

Fig 1: Front Side Door Lower Auxiliary Weatherstrip & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Lower Auxiliary Weatherstrip Retainer (Qty: 14) Procedure Open the front side door that the weatherstrip is being serviced. Using a suitable tool, removal of the weatherstrip and retainers. Using a suitable solution, clean the top surface of the rocker molding with a clean damp shop cloth.
2	Front Side Door Lower Auxiliary Weatherstrip Procedure Install the auxiliary weatherstrip to the front top edge the rocker molding first then work the auxiliary weatherstrip rearward installing the retainers.

Callout

Component Name

Front Side Door Lower Auxiliary Weatherstrip Retainer (Qty: 14)

Procedure

Open the front side door that the weatherstrip is being serviced.
Using a suitable tool, removal of the weatherstrip and retainers.
Using a suitable solution, clean the top surface of the rocker molding with a clean damp shop cloth.

Front Side Door Lower Auxiliary Weatherstrip
Procedure
Install the auxiliary weatherstrip to the front top edge the rocker molding first then work the auxiliary weatherstrip rearward installing the retainers.
