Clutch Pedal Position Sensor Replacement

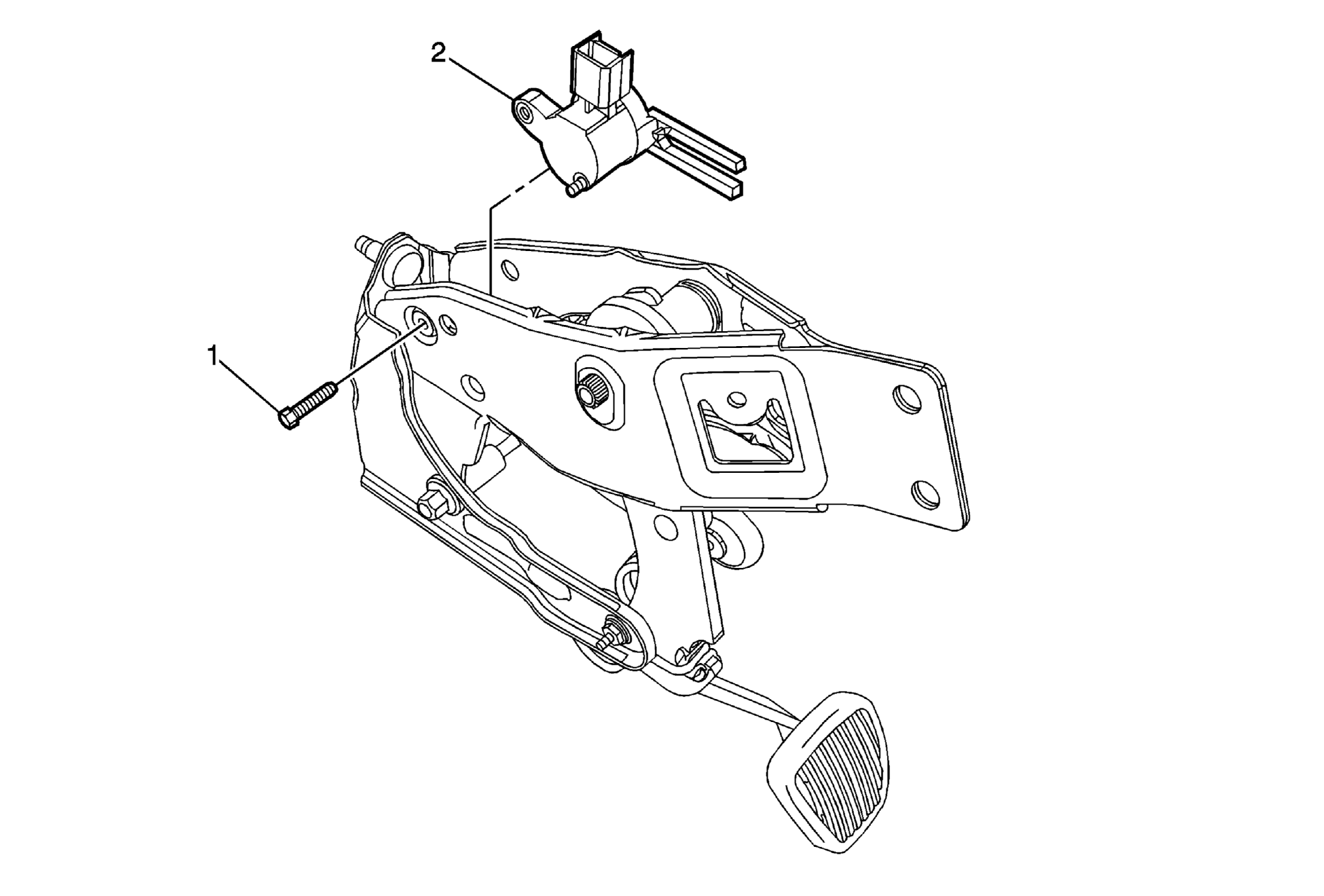

Fig 1: Clutch Pedal Position Sensor And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the clutch pedal assembly from the vehicle. Refer to Clutch Pedal Replacement
1	Clutch Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Clutch Pedal Position Sensor Procedure  Perform the clutch pedal position sensor learn procedure. For the V6 engine refer to Clutch Pedal Position Sensor Learn , or Clutch Pedal Position Sensor Learn for the V8 engine.
