Transmission Fluid Cooler Pipe Replacement - Rear Transmission Cooler Outlet Pipe to Differential Oil Cooler Hose/Pipe (LSA)

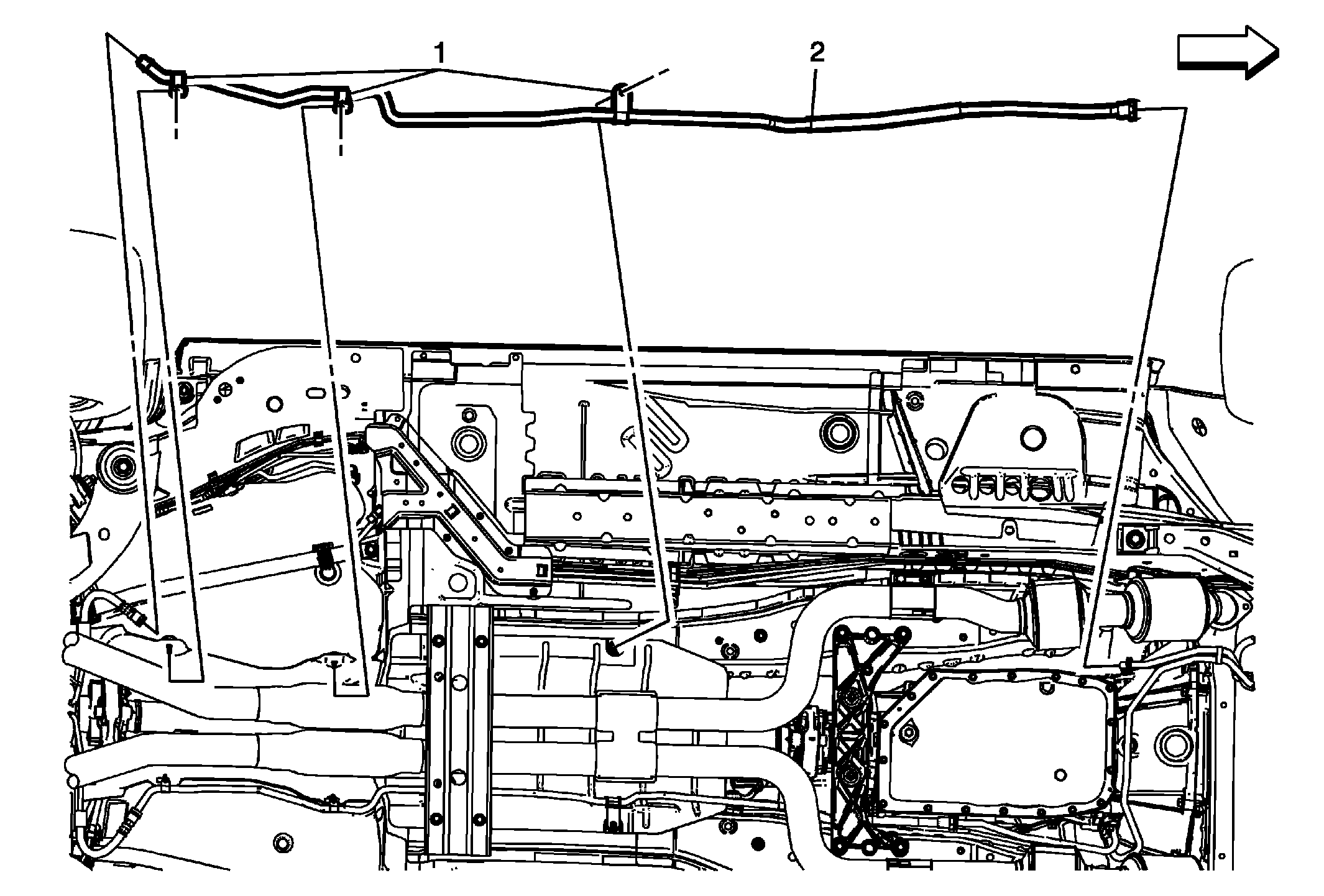

Fig 1: Rear Transmission Cooler Outlet Pipe to Differential Oil Cooler Hose/Pipe & Retainers (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody brace. Refer to Underbody Brace Replacement (Coupe and Convertible)Underbody Brace Replacement (Convertible Only) . Place a drain pan under the front transmission fluid cooler pipe. Cap the fittings and plug the holes when removing the transmission fluid cooler outlet pipe.
1	Rear Transmission Cooler Outlet Pipe to Differential Oil Cooler Hose Retainers (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Transmission Cooler Outlet Pipe to Differential Oil Cooler Hose Procedure Disconnect the quick connect fittings from the front transmission cooler pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection . Disconnect the quick connect fittings from the differential oil cooler outlet hose. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection . Check the transmission fluid level and fill the transmission to the proper level. Refer to Transmission Fluid Level and Condition Check . Check transmission hoses and pipes for leaks.

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the underbody brace. Refer to Underbody Brace Replacement (Coupe and Convertible)Underbody Brace Replacement (Convertible Only) .
Place a drain pan under the front transmission fluid cooler pipe.
Cap the fittings and plug the holes when removing the transmission fluid cooler outlet pipe.

Rear Transmission Cooler Outlet Pipe to Differential Oil Cooler Hose Retainers (Qty: 3)

CAUTION:

Tighten
10 N.m (89 lb in)

Rear Transmission Cooler Outlet Pipe to Differential Oil Cooler Hose

Procedure

Disconnect the quick connect fittings from the front transmission cooler pipe. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
Disconnect the quick connect fittings from the differential oil cooler outlet hose. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
Check the transmission fluid level and fill the transmission to the proper level. Refer to Transmission Fluid Level and Condition Check .
Check transmission hoses and pipes for leaks.
