Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LSA, LS3, LS7, L99)

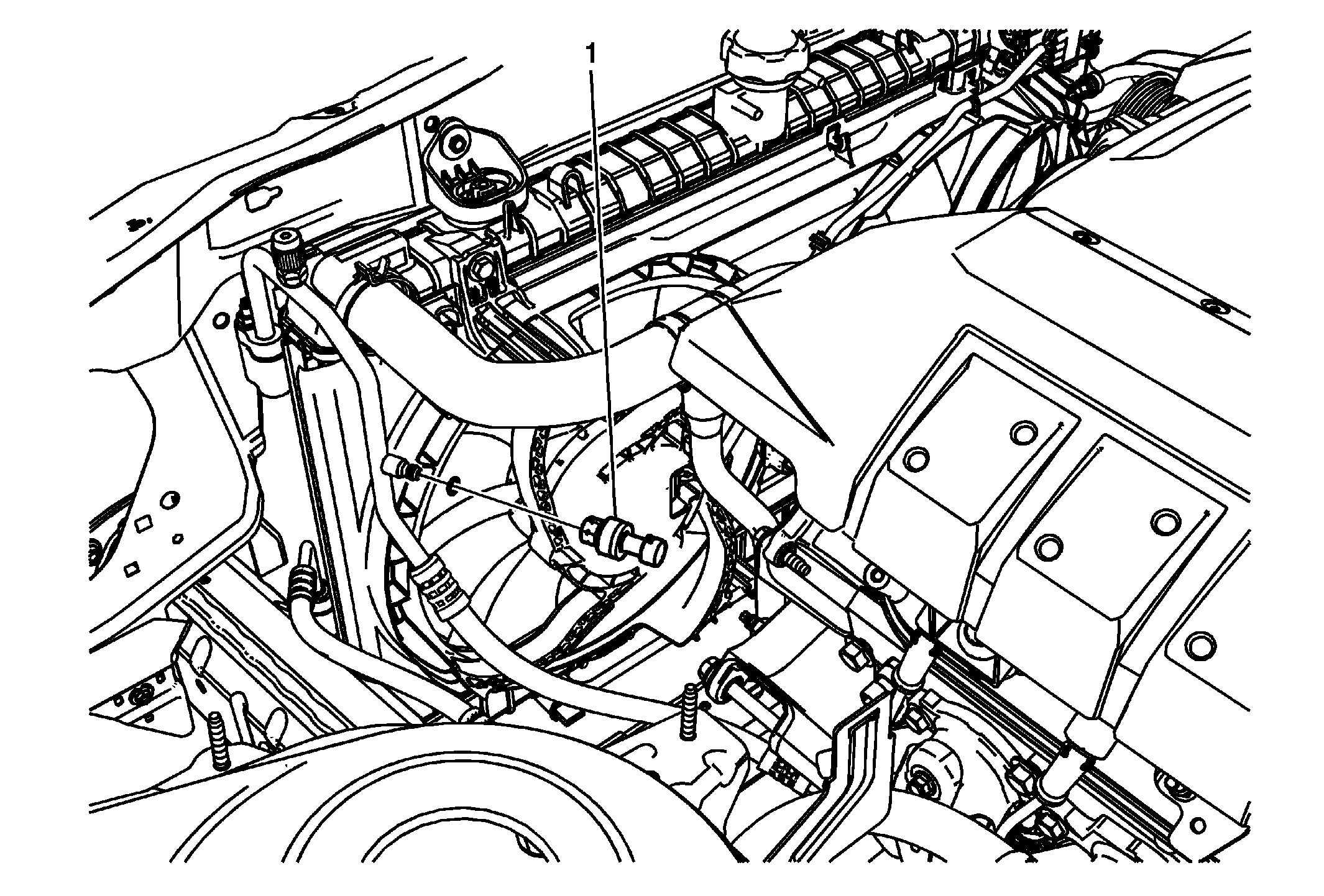

Fig 1: Air Conditioning Refrigerant Pressure Sensor (LSA LS3, LS7, L99)
GM2209232Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Disconnect the electrical connector from the pressure sensor.
1 A/C Refrigerant Pressure Sensor
CAUTION:

Refer to Fastener Caution .

NOTE:

Remove and discard the O-ring. Refer to Air Conditioning O-Ring Seal Replacement


Tighten
6 N.m (53 lb in)
