Supercharger Air Inlet Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

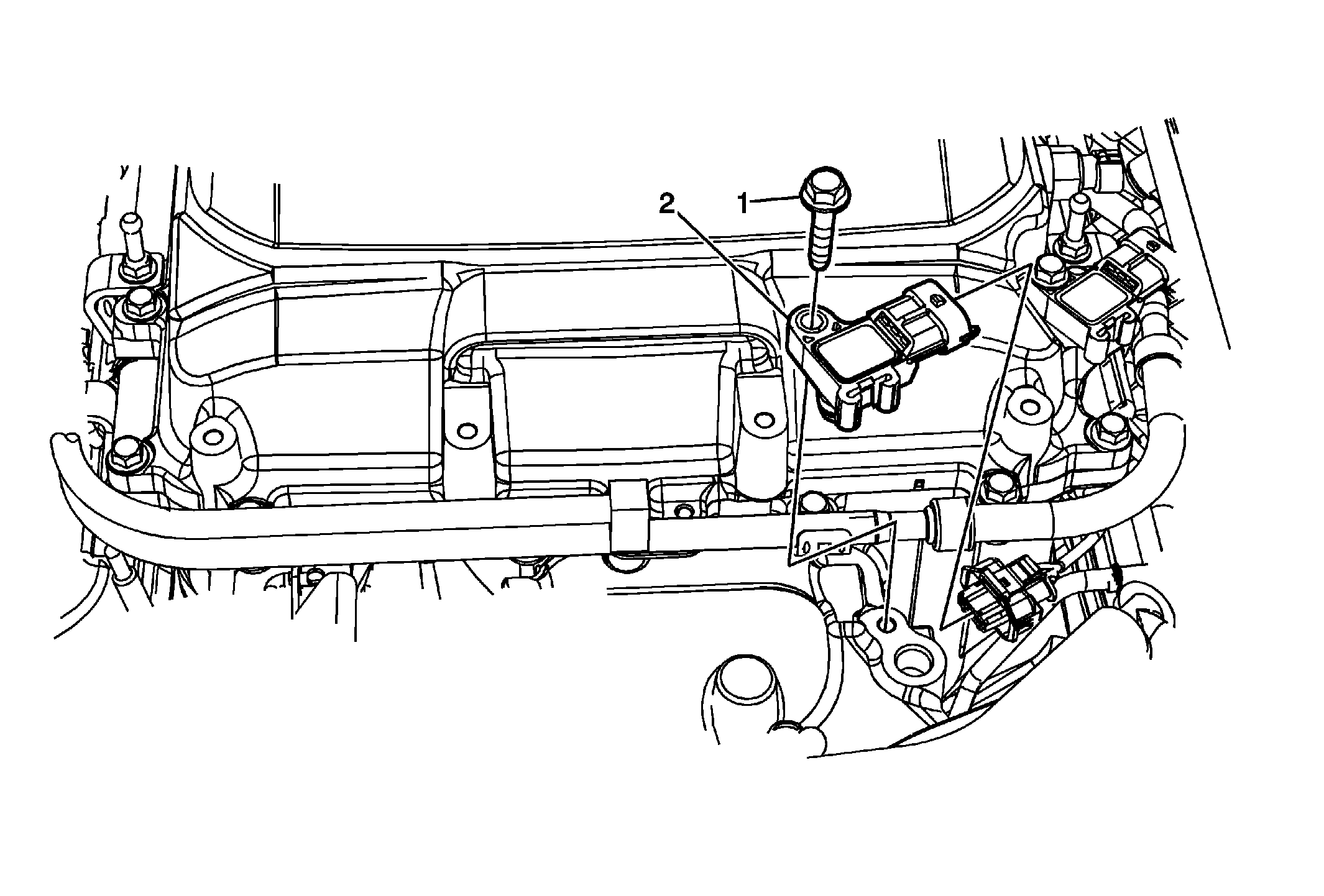

Fig 1: Identifying Supercharger Air Inlet Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Supercharger Air Inlet Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Supercharger Air Inlet Pressure Sensor Procedure Disconnect the electrical wiring harness connector from the supercharger air inlet pressure sensor. Install the NEW O-ring provided with the sensor.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Supercharger Air Inlet Pressure Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Supercharger Air Inlet Pressure Sensor

Procedure

Disconnect the electrical wiring harness connector from the supercharger air inlet pressure sensor.
Install the NEW O-ring provided with the sensor.
