Fuel Feed and Return Front Pipe Heat Shield Replacement

WARNING: This page is about a different variant/trim than selected.

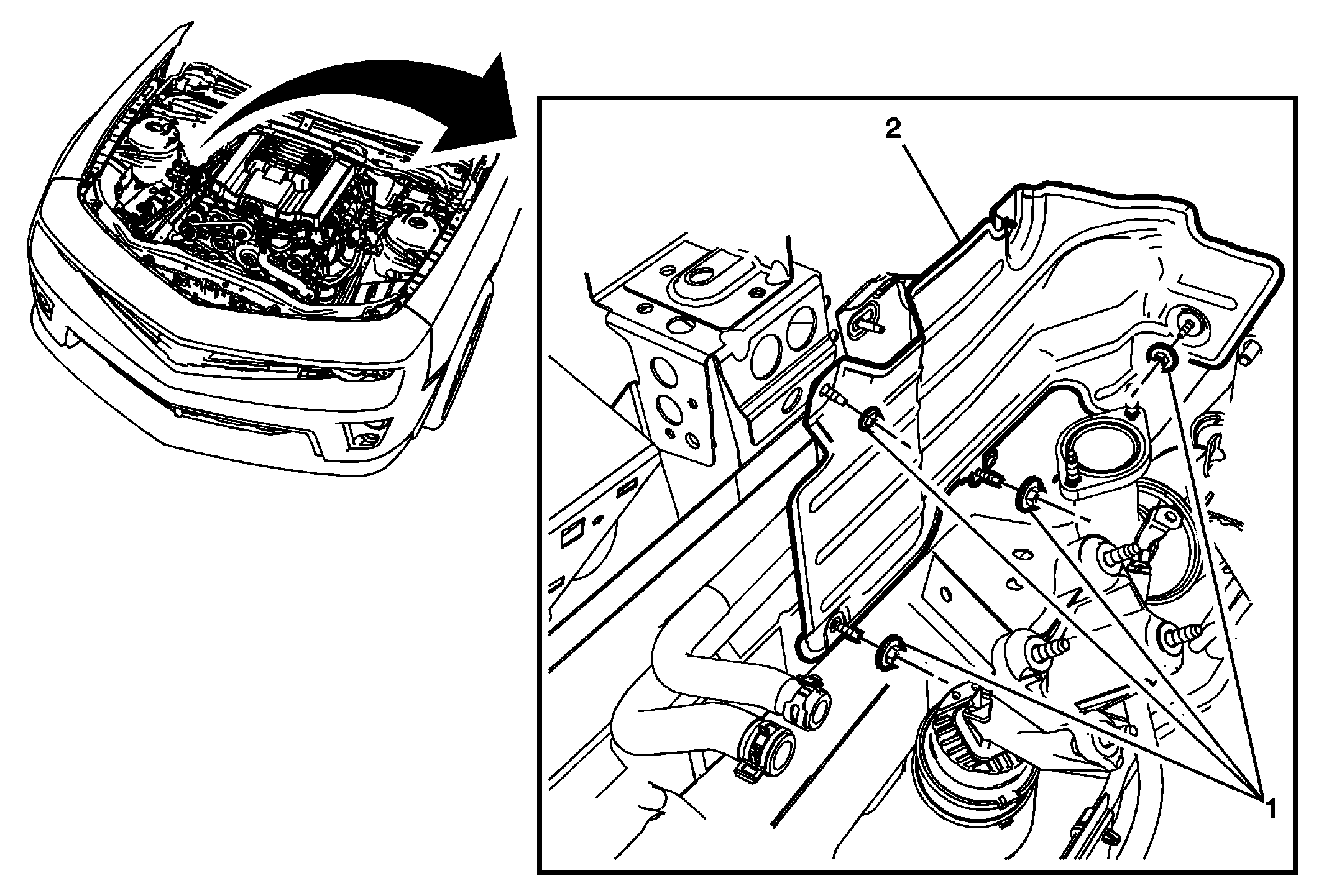

Fig 1: Fuel Feed & Return Front Pipe Heat Shield
GM2728154Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuel Feed and Return Front Pipe Heat Shield Fasteners
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Fuel Feed and Return Front Pipe Heat Shield
