Evaporative Emission Canister Purge Tube Replacement (LSA)

WARNING: This page is about a different variant/trim than selected.

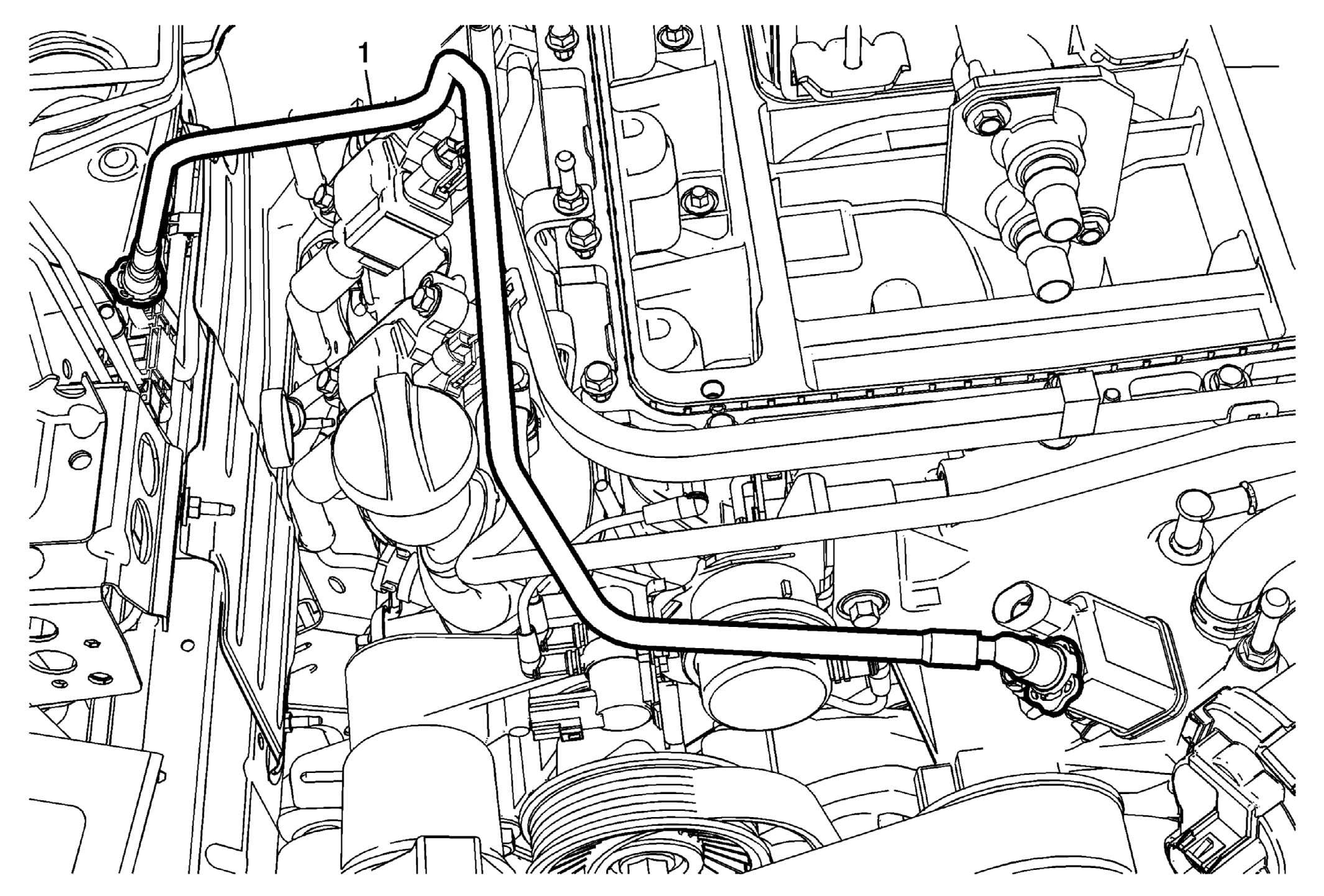

Fig 1: Evaporative Emission Canister Purge Tube (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Evaporative Emission Canister Purge Tube Procedure Disconnect the EVAP canister purge tube from the purge valve. Disconnect the EVAP canister purge tube from the EVAP canister purge Pipe.

Callout

Component Name

Preliminary Procedure
Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Evaporative Emission Canister Purge Tube

Procedure
