Evaporative Emission Canister Purge Solenoid Valve Replacement (Except LS7)

WARNING: This page is about a different variant/trim than selected.

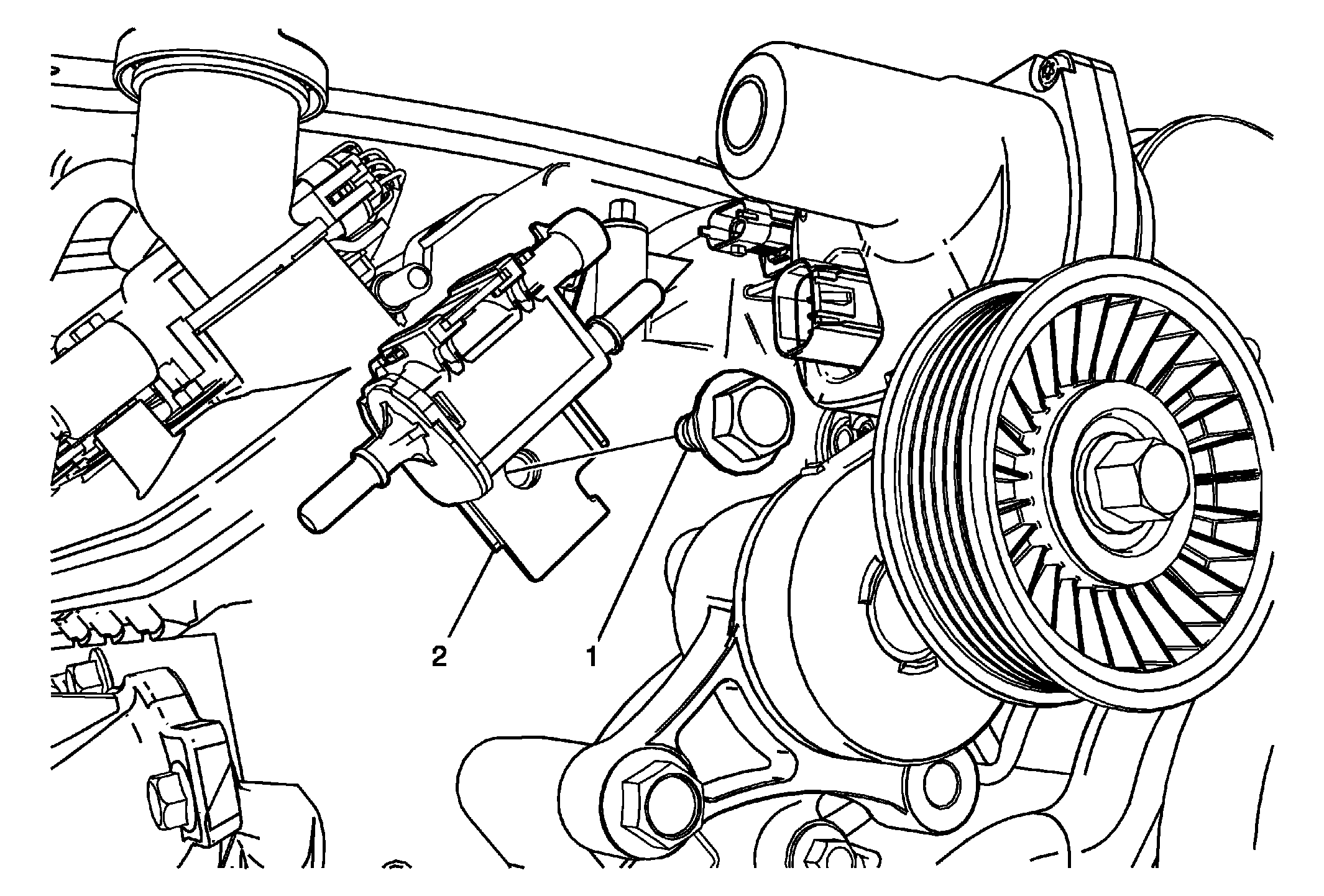

Fig 1: Evaporative Emission Canister Purge Solenoid Valve (Except LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine cover. Refer to Engine Cover Replacement . Disconnect the quick disconnects. Refer to Plastic Collar Quick Connect Fitting Service .
1	Evaporative Emission Canister Purge Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Evaporative Emission Canister Purge Solenoid Valve Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Remove the engine cover. Refer to Engine Cover Replacement .
Disconnect the quick disconnects. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister Purge Solenoid Valve Fastener

CAUTION:

Tighten
50 N.m (37 lb ft)

Evaporative Emission Canister Purge Solenoid Valve
Procedure
Disconnect the electrical connector.
