Fuel Controls - Evaporative Emission Controls

WARNING: This page is about a different variant/trim than selected.

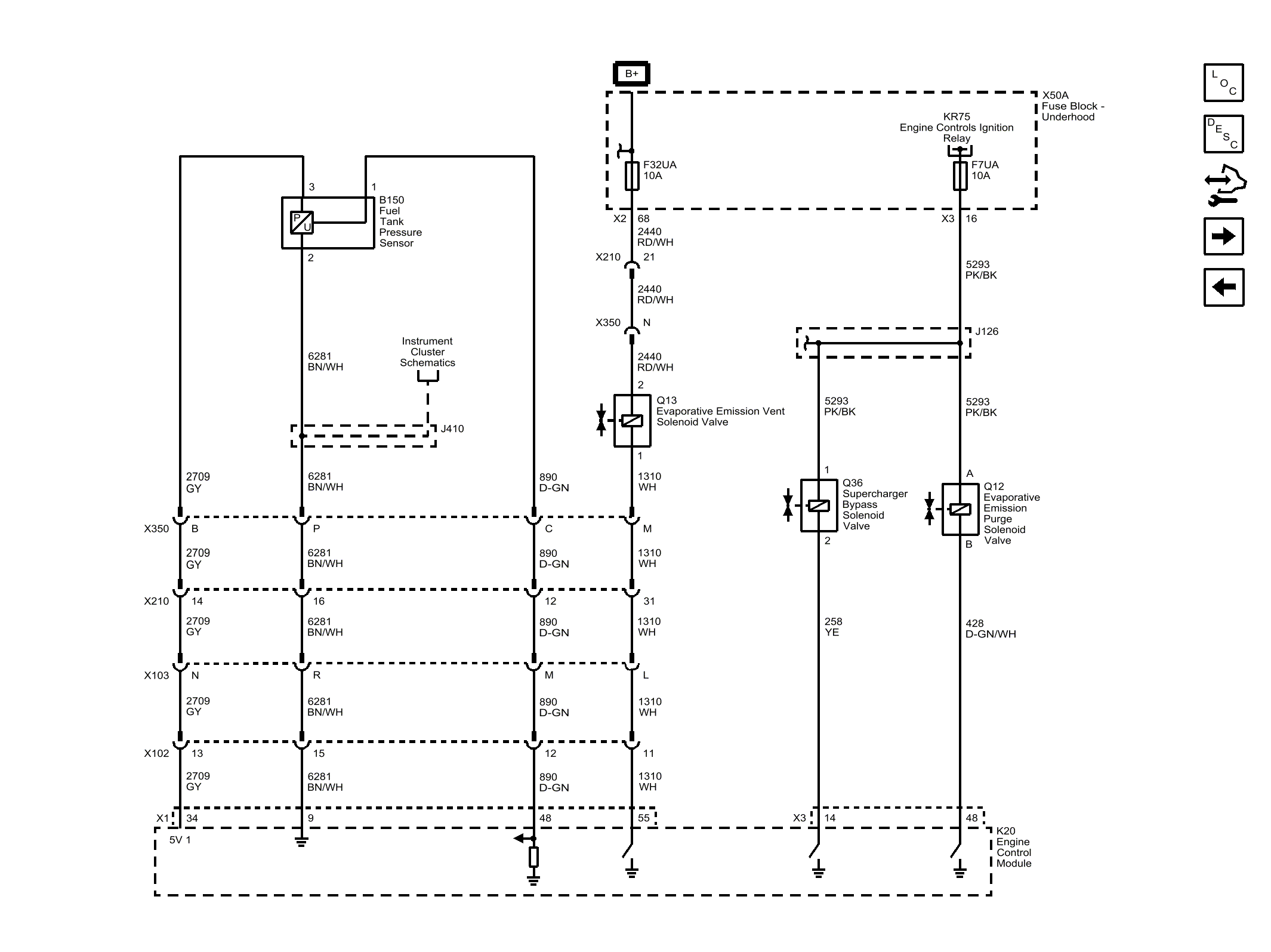

Fig 1: Fuel Controls - Evaporative Emission Controls
GM3708310Courtesy of GENERAL MOTORS COMPANY
