5V1, 5V2, and Low Reference Bus (1 of 2)

WARNING: This page is about a different variant/trim than selected.

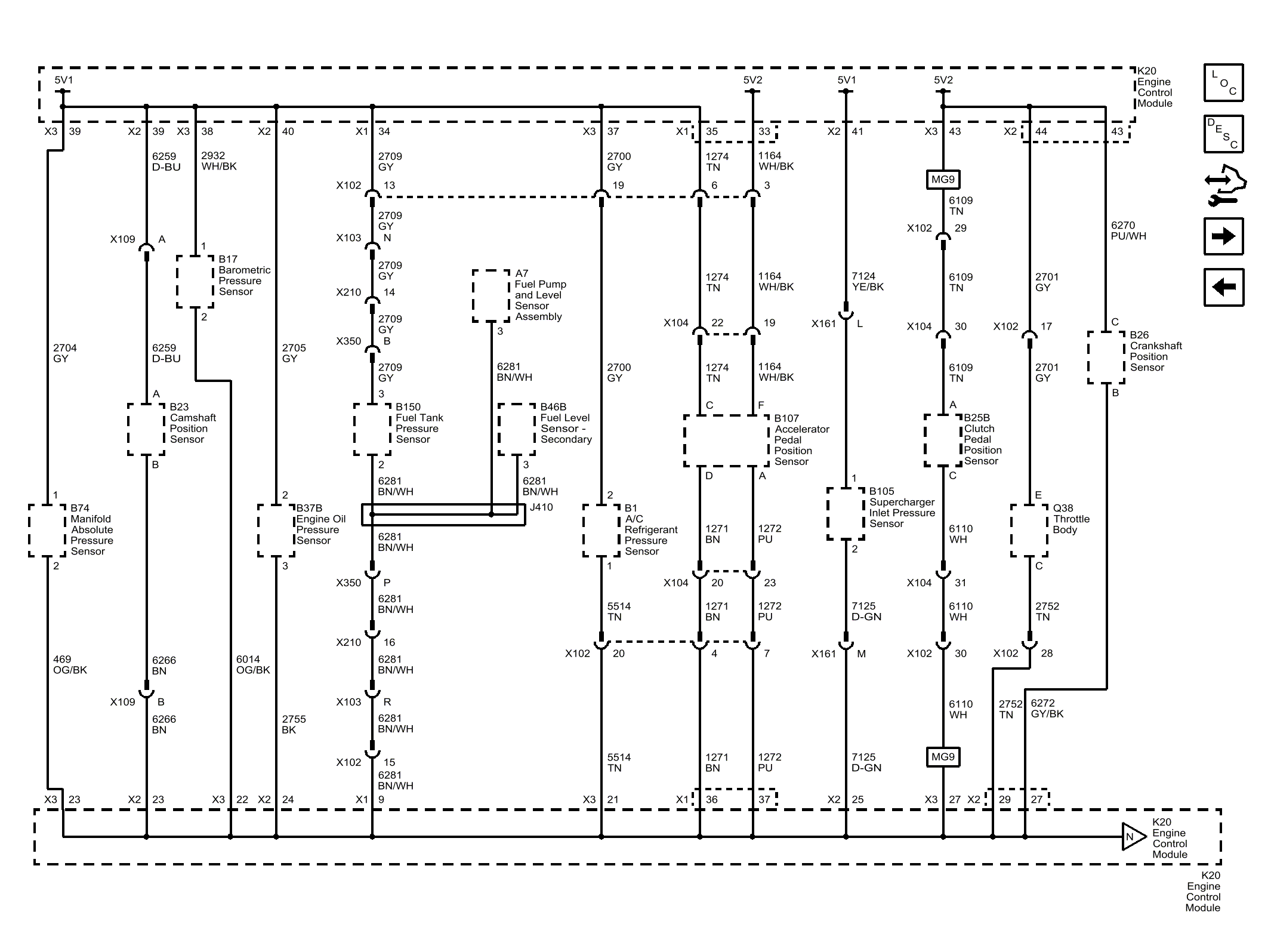

Fig 1: 5V1, 5V2, and Low Reference Bus (1 of 2)

GM3708278

Courtesy of GENERAL MOTORS COMPANY
