5V1, 5V2 and Low Reference Bus (2 of 3)

WARNING: This page is about a different variant/trim than selected.

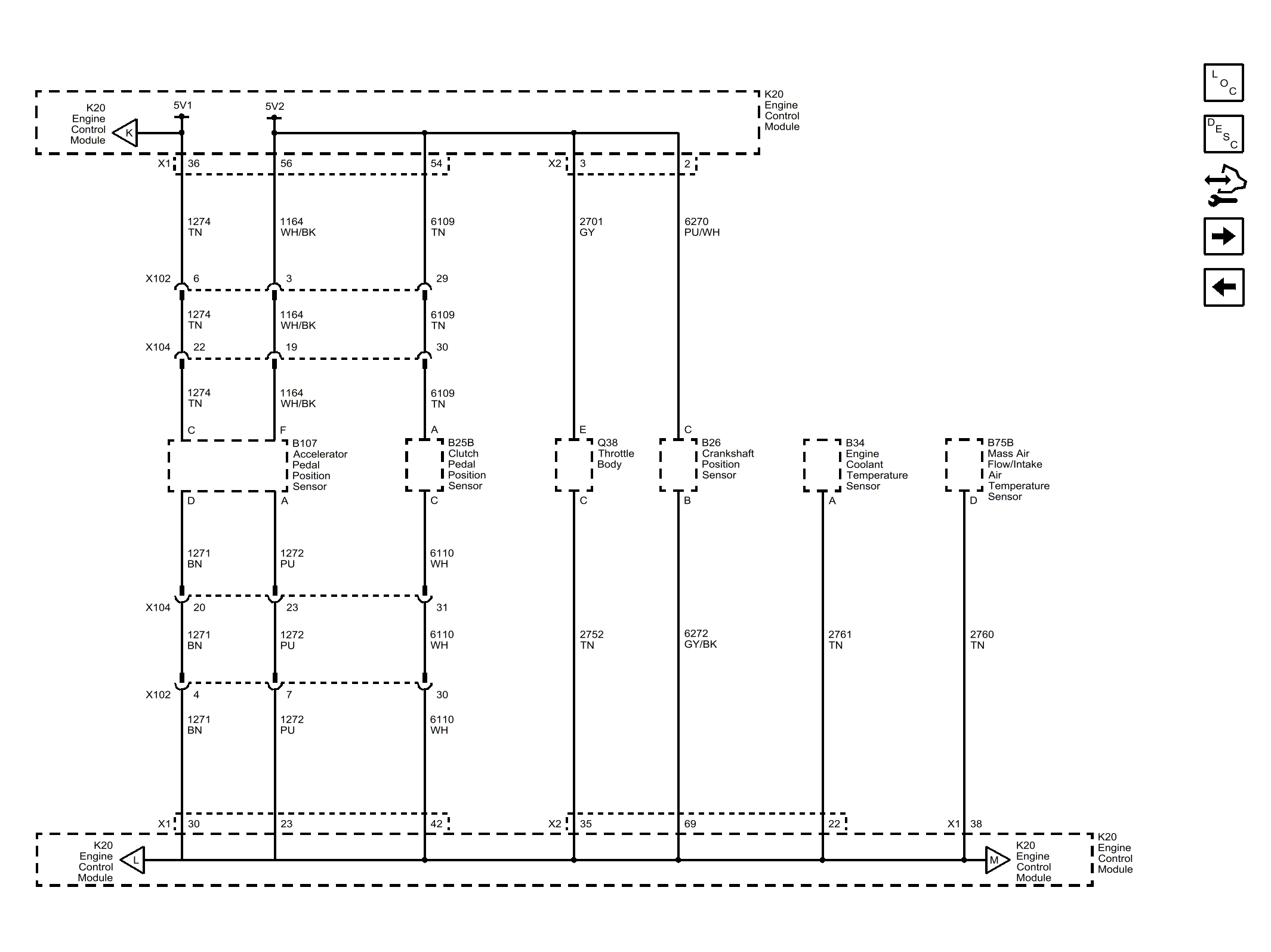

Fig 1: 5V1, 5V2 and Low Reference Bus (2 of 3)
GM3708200Courtesy of GENERAL MOTORS COMPANY
