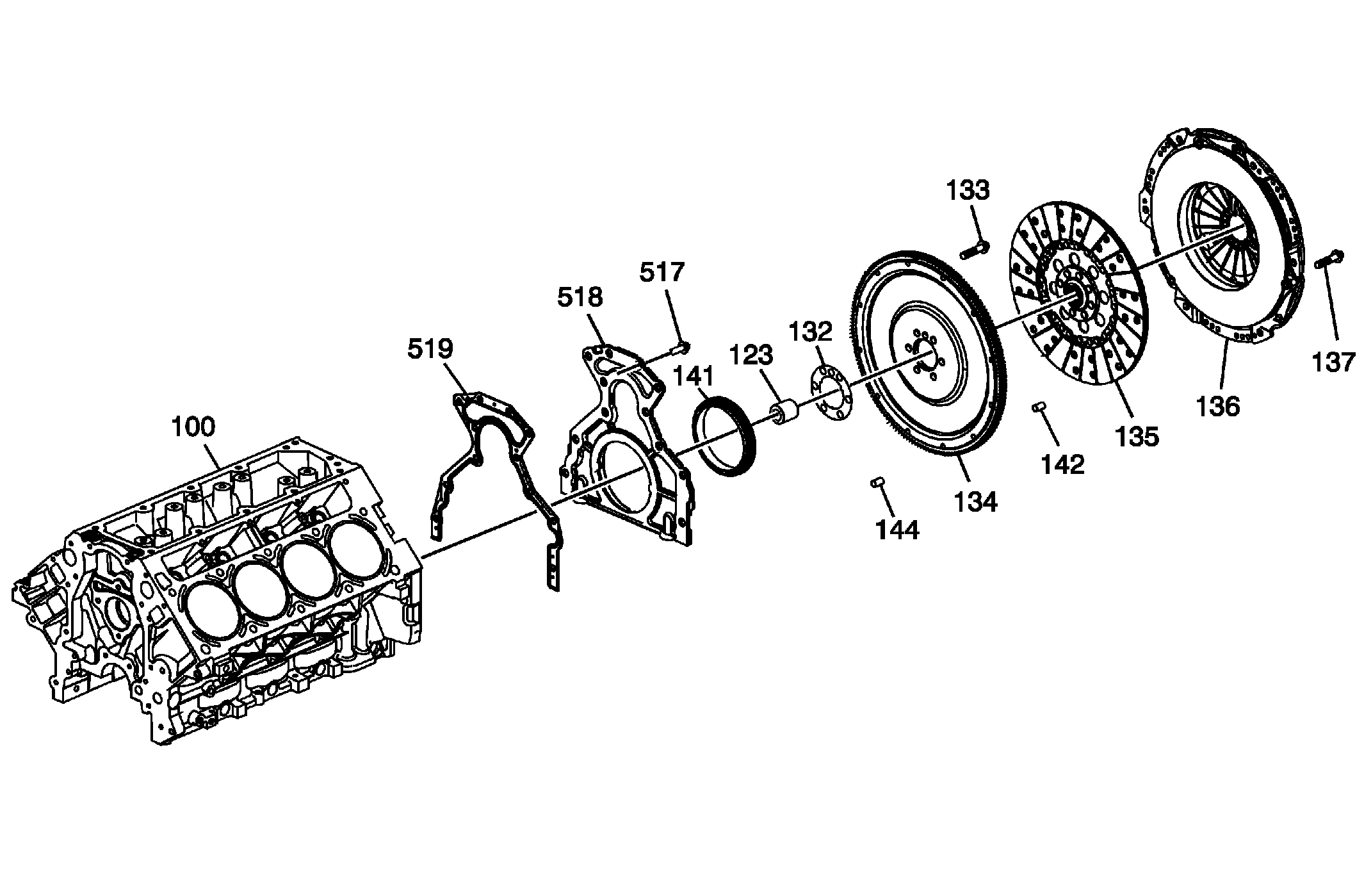

Rear of Engine
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 100 | Engine Block |
| 123 | Transmission Pilot Bearing |
| 132 | Washer |
| 133 | Bolt |
| 134 | Flywheel - Manual Transmission |
| 135 | Clutch Drive Plate - Manual Transmission |
| 136 | Clutch Pressure Plate - Manual Transmission |
| 137 | Bolt |
| 141 | Crankshaft Rear Oil Seal |
| 142 | Clutch Pressure Plate Locating Pin - Manual Transmission |
| 144 | Balance Weight - Flywheel |
| 517 | Bolt |
| 518 | Crankshaft Rear Oil Seal Housing |
| 519 | Crankshaft Rear Oil Seal Housing Gasket |
