Intake Manifold/Upper Engine
WARNING: This page is about a different variant/trim than selected.

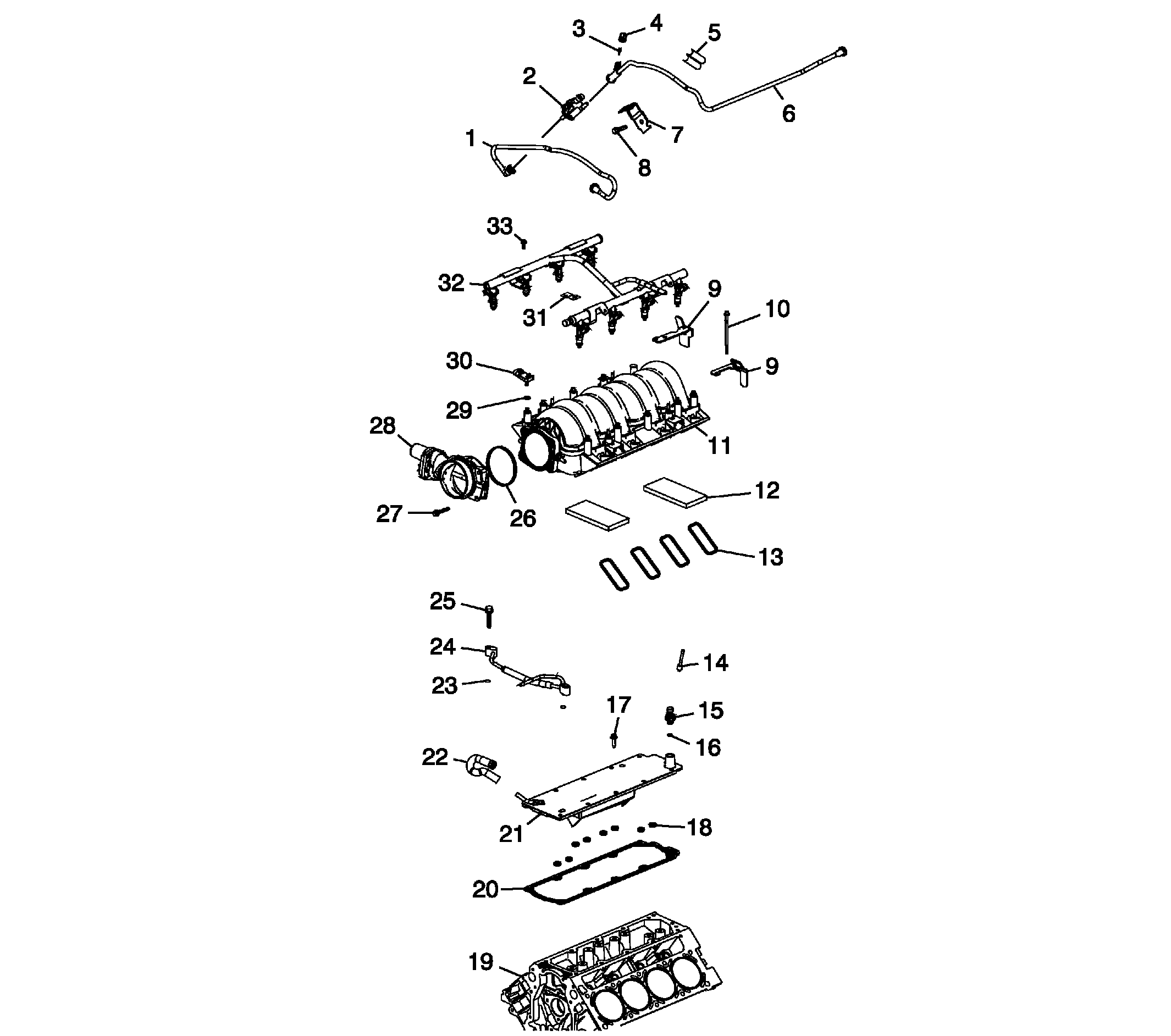

| Callout | Component Name |
|---|---|
| 1 | Evaporative (EVAP) Emission Canister Purge Tube |
| 2 | EVAP Canister Purge Solenoid Valve |
| 3 | EVAP Service Valve |
| 4 | EVAP Service Valve Cap |
| 5 | EVAP Canister Purge Tube Clip |
| 6 | EVAP Canister Purge Tube |
| 7 | EVAP Canister Purge Solenoid Valve Bracket |
| 8 | EVAP Canister Purge Solenoid Valve Bracket Bolt |
| 9 | Fuel Injection Fuel Rail Stop |
| 10 | Fuel Injection Fuel Rail Stop Bolt |
| 11 | Intake Manifold |
| 12 | Intake Manifold Seal |
| 13 | Intake Manifold Gasket |
| 14 | Engine Coolant Air Bleed Plug |
| 15 | Engine Oil Pressure Sensor |
| 16 | Engine Oil Pressure Sensor Seal |
| 17 | Engine Block Valley Cover Bolt |
| 18 | Engine Block Valley Cover High Pressure Port Seal |
| 19 | Engine Block |
| 20 | Engine Block Valley Cover Gasket |
| 21 | Engine Block Valley Cover |
| 22 | Positive Crankcase Ventilation (PCV) Hose- Dirty Air |
| 23 | Engine Coolant Air Bleed Pipe Seal |
| 24 | Engine Coolant Air Bleed Pipe |
| 25 | Engine Coolant Air Bleed Pipe Bolt |
| 26 | Throttle Body Seal |
| 27 | Throttle Body Bolt |
| 28 | Throttle Body |
| 29 | Manifold Absolute Pressure (MAP) Sensor Seal |
| 30 | MAP Sensor |
| 31 | Fuel Injection Fuel Rail Bracket |
| 32 | Fuel Rail Assembly- Multi-Port |
| 33 | Fuel Rail Assembly Bolt |
