Engine Block Plugs/Sensors
WARNING: This page is about a different variant/trim than selected.

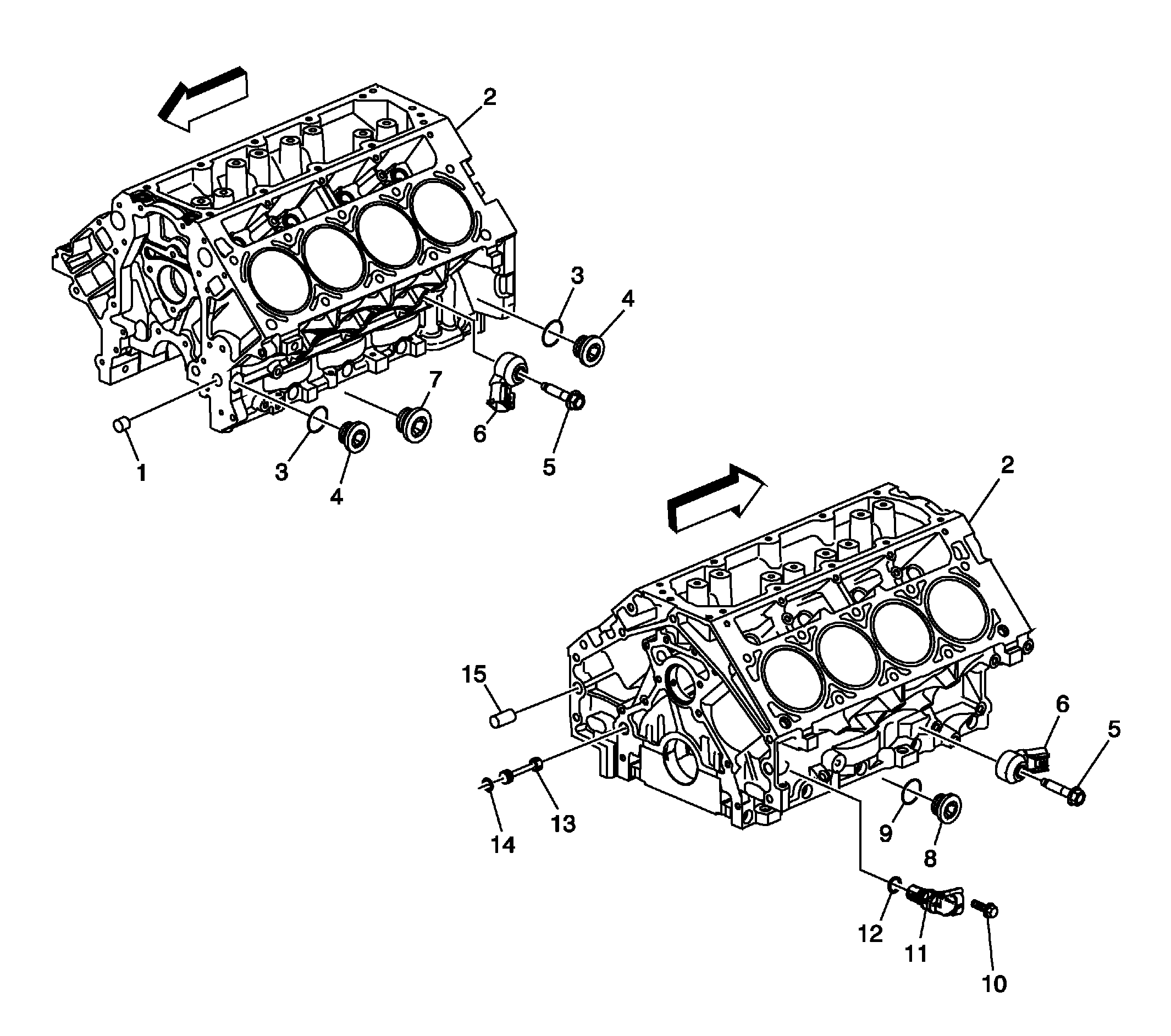

| Callout | Component Name |
|---|---|
| 1 | Oil Gallery Plug - Front |
| 2 | Engine Block |
| 3 | Oil Gallery Plug Washer |
| 4 | Oil Gallery Plug - Side - M16 |
| 5 | Knock Sensor Bolt |
| 6 | Knock Sensor |
| 7 | Engine Block Coolant Drain Hole Plug - M28 |
| 8 | Engine Block Coolant Drain Hole Plug - M16 |
| 9 | Engine Block Coolant Drain Hole Plug Washer |
| 10 | Crankshaft Position (CKP) Sensor Bolt |
| 11 | CKP Sensor |
| 12 | CKP Sensor O-Ring |
| 13 | Oil Gallery Plug - Rear |
| 14 | Oil Gallery Plug O-Ring |
| 15 | Transmission Housing Locating Pin |
