Supercharger/Upper Engine
WARNING: This page is about a different variant/trim than selected.

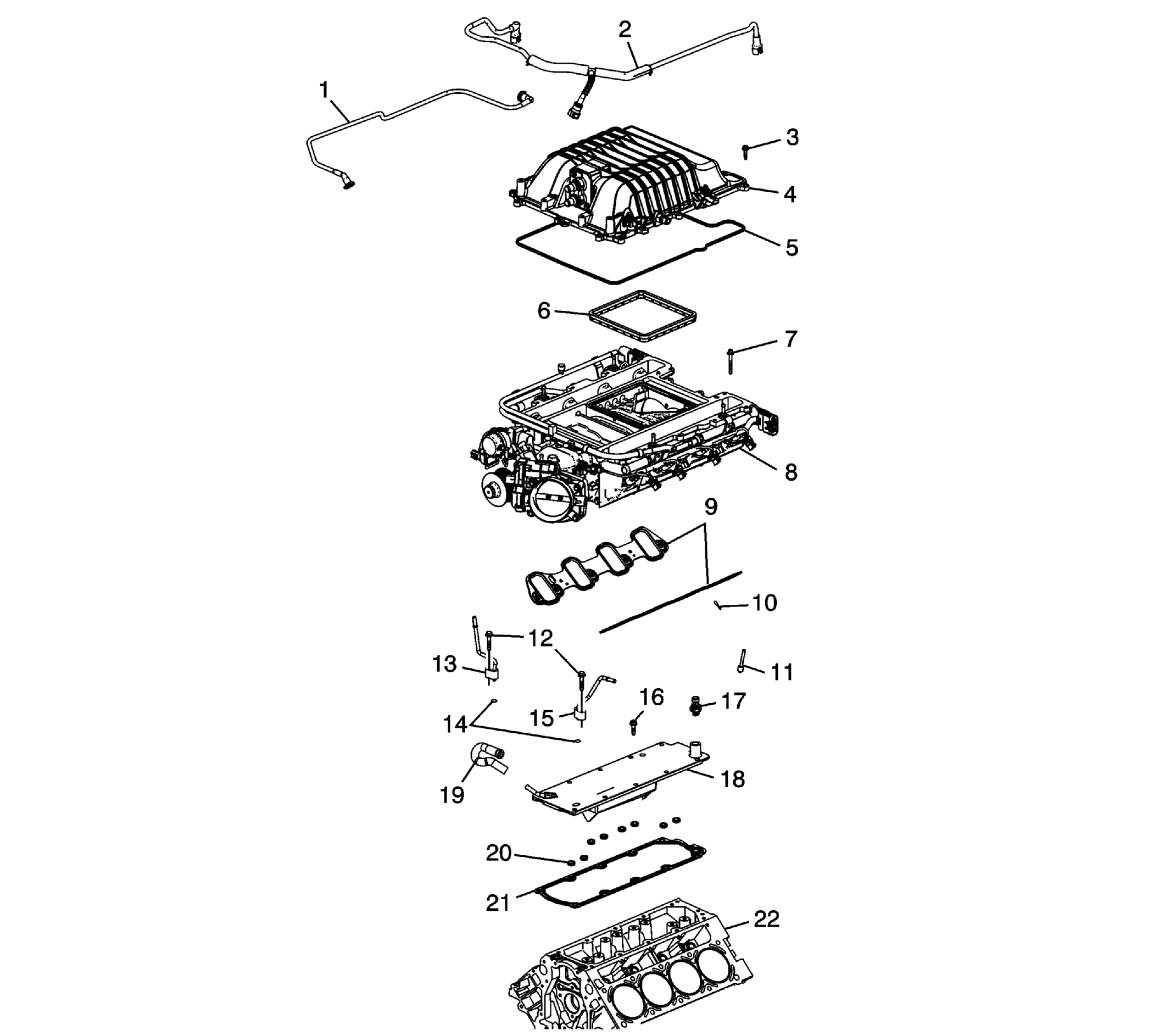

| Callout | Component Name |
|---|---|
| 1 | Evaporative (EVAP) Emission Canister Purge Tube |
| 2 | Positive Crankcase Ventilation (PCV) Tube - Fresh Air |
| 3 | Supercharger Cover Bolts |
| 4 | Supercharger Cover |
| 5 | Supercharger Cover Seal |
| 6 | Supercharger Insulator Seal |
| 7 | Supercharger Bolts |
| 8 | Supercharger |
| 9 | Supercharger Gasket |
| 10 | Supercharger Gasket Rivet |
| 11 | Engine Coolant Air Bleed Plug |
| 12 | Engine Coolant Air Bleed Pipe Bolt |
| 13 | Engine Coolant Air Bleed Pipe |
| 14 | Engine Coolant Air Bleed Pipe Seal |
| 15 | Engine Coolant Air Bleed Pipe |
| 16 | Valley Cover Bolt |
| 17 | Engine Oil Pressure Sensor |
| 18 | Valley Cover |
| 19 | PCV Hose - Dirty Air |
| 20 | Valley Cover Seal |
| 21 | Valley Cover Gasket |
