Supercharger Cover Assembly
WARNING: This page is about a different variant/trim than selected.

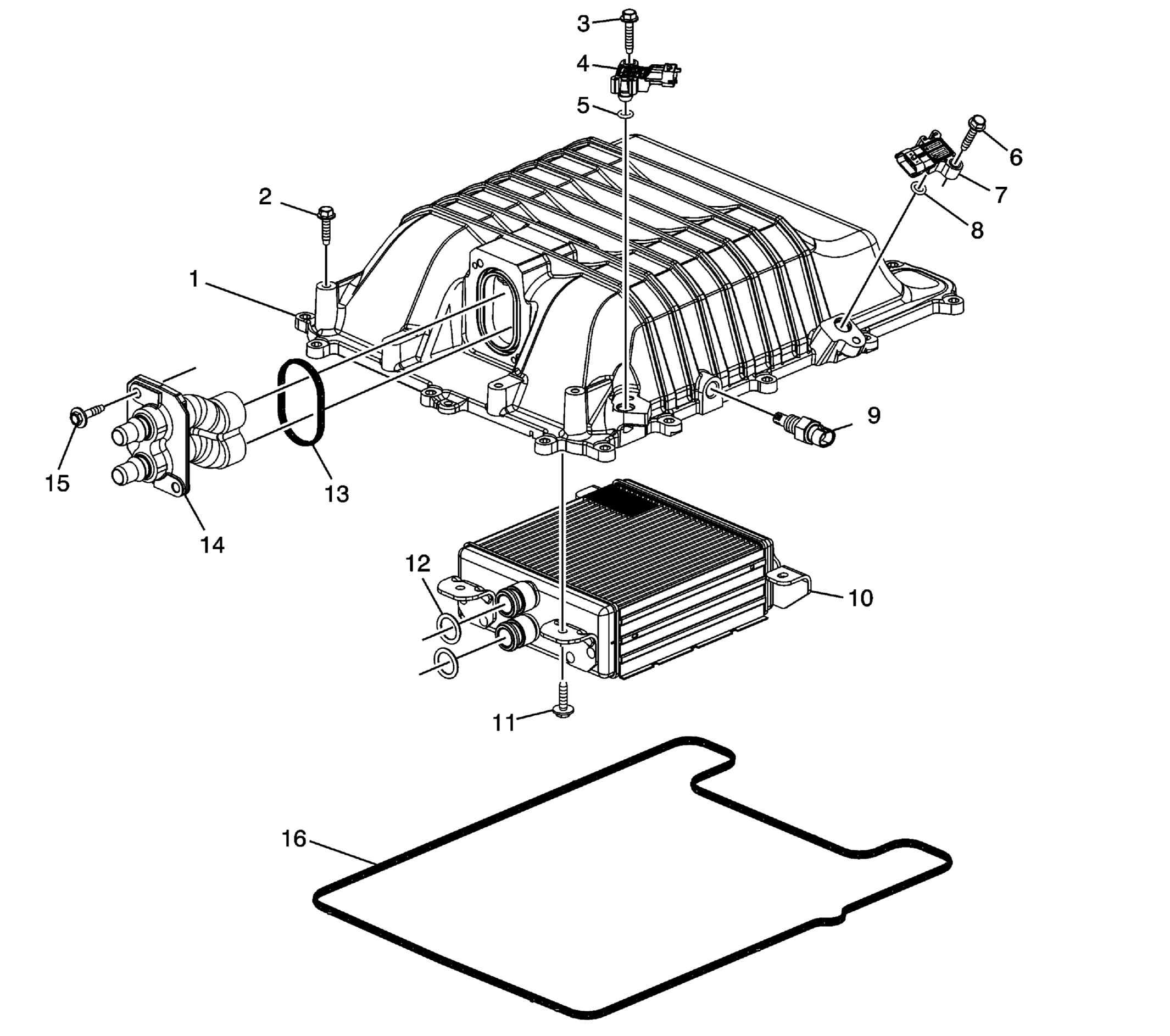

| Callout | Component Name |
|---|---|
| 1 | Charge Air Cooler Cover |
| 2 | Charge Air Cooler Cover Bolt |
| 3 | Barometric Pressure Sensor Bolt |
| 4 | Barometric Pressure Sensor |
| 5 | Barometric Pressure Sensor Seal |
| 6 | Supercharger Air Outlet Pressure Sensor Bolt |
| 7 | Supercharger Air Outlet Pressure Sensor |
| 8 | Supercharger Air Outlet Pressure Sensor Seal |
| 9 | Intake Air Temperature Sensor |
| 10 | Charge Air Cooler |
| 11 | Charge Air Cooler Bolt |
| 12 | Charge Air Cooler Coolant Pipe Seal |
| 13 | Charge Air Cooler Coolant Outlet Pipe Assembly Seal |
| 14 | Charge Air Cooler Coolant Outlet Pipe Assembly |
| 15 | Charge Air Cooler Coolant Outlet Pipe Assembly Bolt |
| 16 | Charge Air Cooler Cover Seal |
