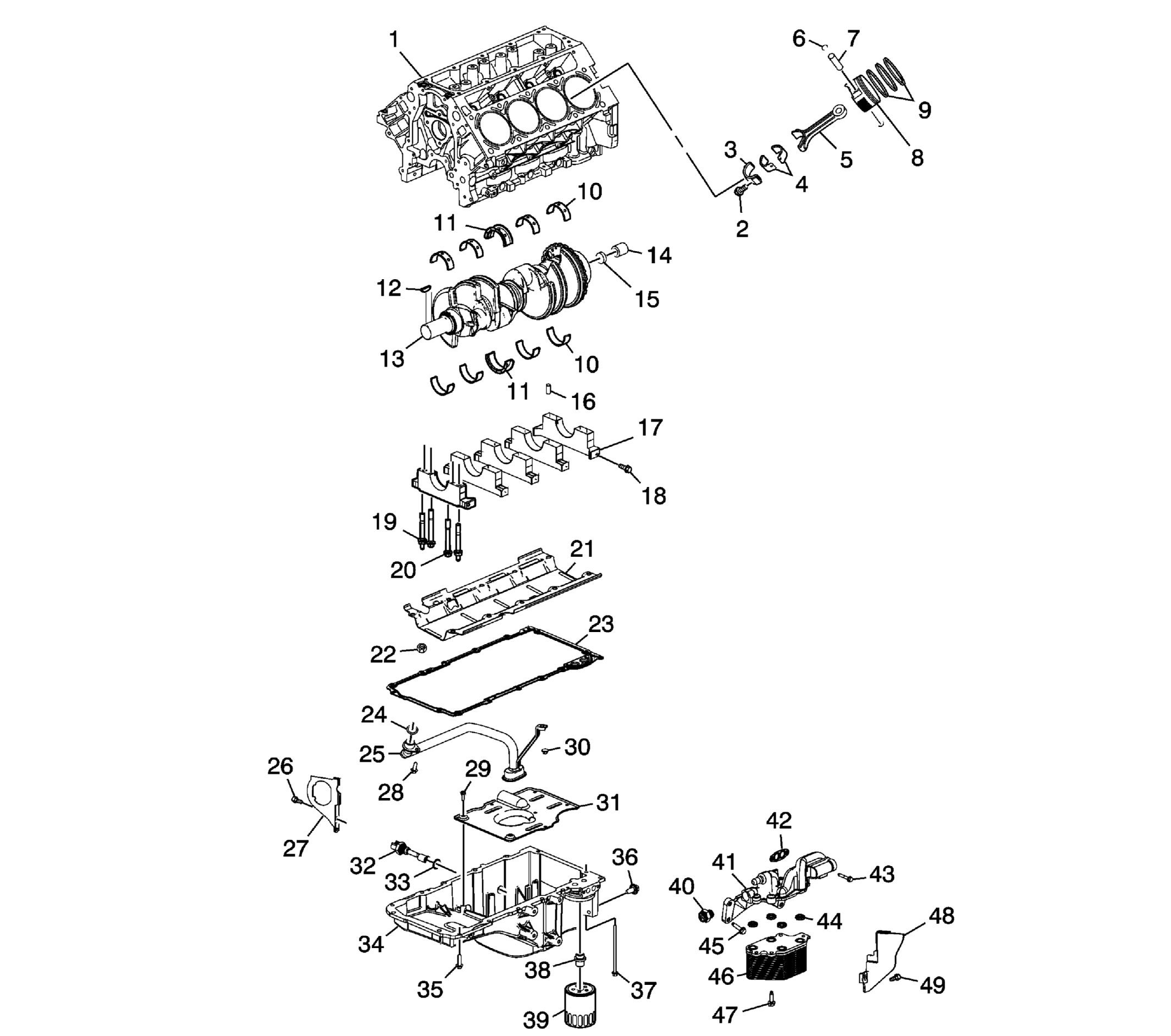

Lower Engine Assembly
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Engine Block |
| 2 | Bolt |
| 3 | Connecting Rod Cap |
| 4 | Connecting Rod Bearing |
| 5 | Connecting Rod |
| 6 | Piston Pin Retainer |
| 7 | Piston Pin |
| 8 | Piston |
| 9 | Piston Ring Set |
| 10 | Crankshaft Bearing |
| 11 | Crankshaft Bearing - Thrust |
| 12 | Crankshaft Sprocket Key |
| 13 | Crankshaft |
| 14 | Transmission Pilot Bearing - Manual Transmission |
| 15 | Crankshaft Hole Plug |
| 16 | Crankshaft Bearing Cap Locating Pin |
| 17 | Crankshaft Bearing Cap |
| 18 | Bolt - M8 |
| 19 | Stud - M10 |
| 20 | Bolt - M10 |
| 21 | Crankshaft Oil Deflector |
| 22 | Crankshaft Oil Deflector Nut |
| 23 | Oil Pan Gasket |
| 24 | Oil Pump Suction Pipe Seal |
| 25 | Oil Pump Suction Pipe |
| 26 | Bolt |
| 27 | Engine Cover - Right |
| 28 | Oil Pump Suction Pipe Bolt |
| 29 | Oil Pan Baffle Bolt |
| 30 | Oil Pump Suction Pipe Nut |
| 31 | Oil Pan Baffle |
| 32 | Engine Oil Level Sensor |
| 33 | Engine Oil Level Sensor Seal |
| 34 | Oil Pan |
| 35 | Oil Pan Bolt |
| 36 | Oil Pan Drain Plug |
| 37 | Oil Pan Bolt |
| 38 | Oil Filter Fitting |
| 39 | Oil Filter |
| 40 | Engine Oil Cooler Coolant Fitting |
| 41 | Engine Oil Cooler Housing |
| 42 | Engine Oil Cooler Gasket |
| 43 | Engine Oil Cooler-to-Oil Pan Bolt - M6 |
| 44 | Engine Oil Cooler Core Seal |
| 45 | Engine Oil Cooler-to-Oil Pan Bolt - M8 |
| 46 | Engine Oil Cooler Core |
| 47 | Engine Oil Cooler Core-to-Housing Bolt |
| 48 | Oil Pan Cover - Left |
| 49 | Bolt |
