Engine Block Plugs/Sensors
WARNING: This page is about a different variant/trim than selected.

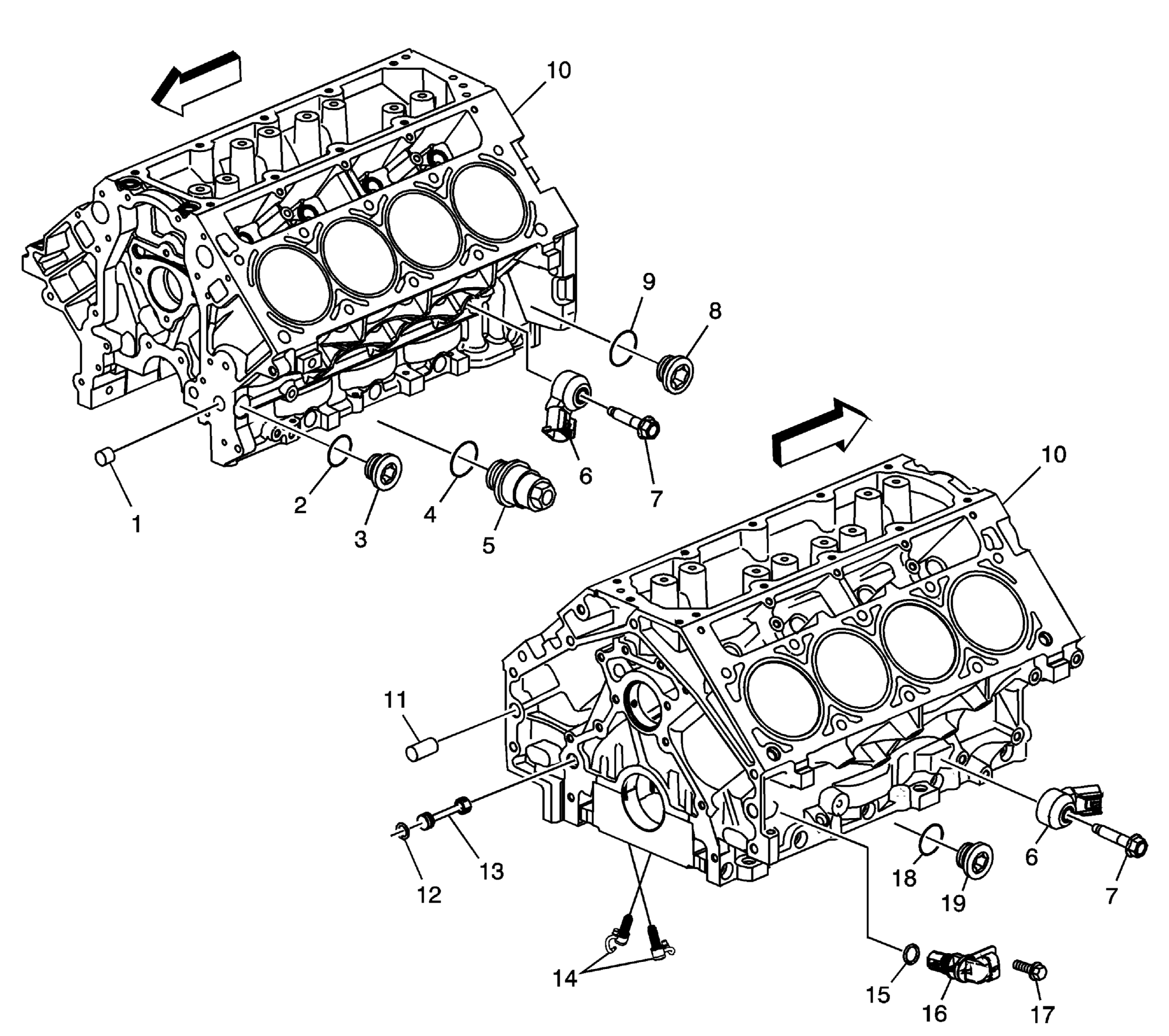

| Callout | Component Name |
|---|---|
| 1 | Engine Block Oil Gallery Plug - Front |
| 2 | Engine Block Oil Gallery Plug Seal |
| 3 | Engine Block Oil Gallery Plug - Side |
| 4 | Engine Block Coolant Heater Seal |
| 5 | Engine Block Coolant Heater |
| 6 | Knock Sensor |
| 7 | Bolt |
| 8 | Engine Block Oil Gallery Plug - Side |
| 9 | Engine Block Oil Gallery Plug Seal |
| 10 | Engine Block |
| 11 | Transmission Locating Pin |
| 12 | Engine Block Oil Gallery Plug Seal |
| 13 | Engine Block Oil Gallery Plug - Rear |
| 14 | Piston Oil Nozzle |
| 15 | Crankshaft Position (CKP) Sensor Seal |
| 16 | CKP Sensor |
| 17 | CKP Sensor Bolt |
| 18 | Engine Block Coolant Drain Hole Plug Seal |
| 19 | Engine Block Coolant Drain Hole Plug - Side |
