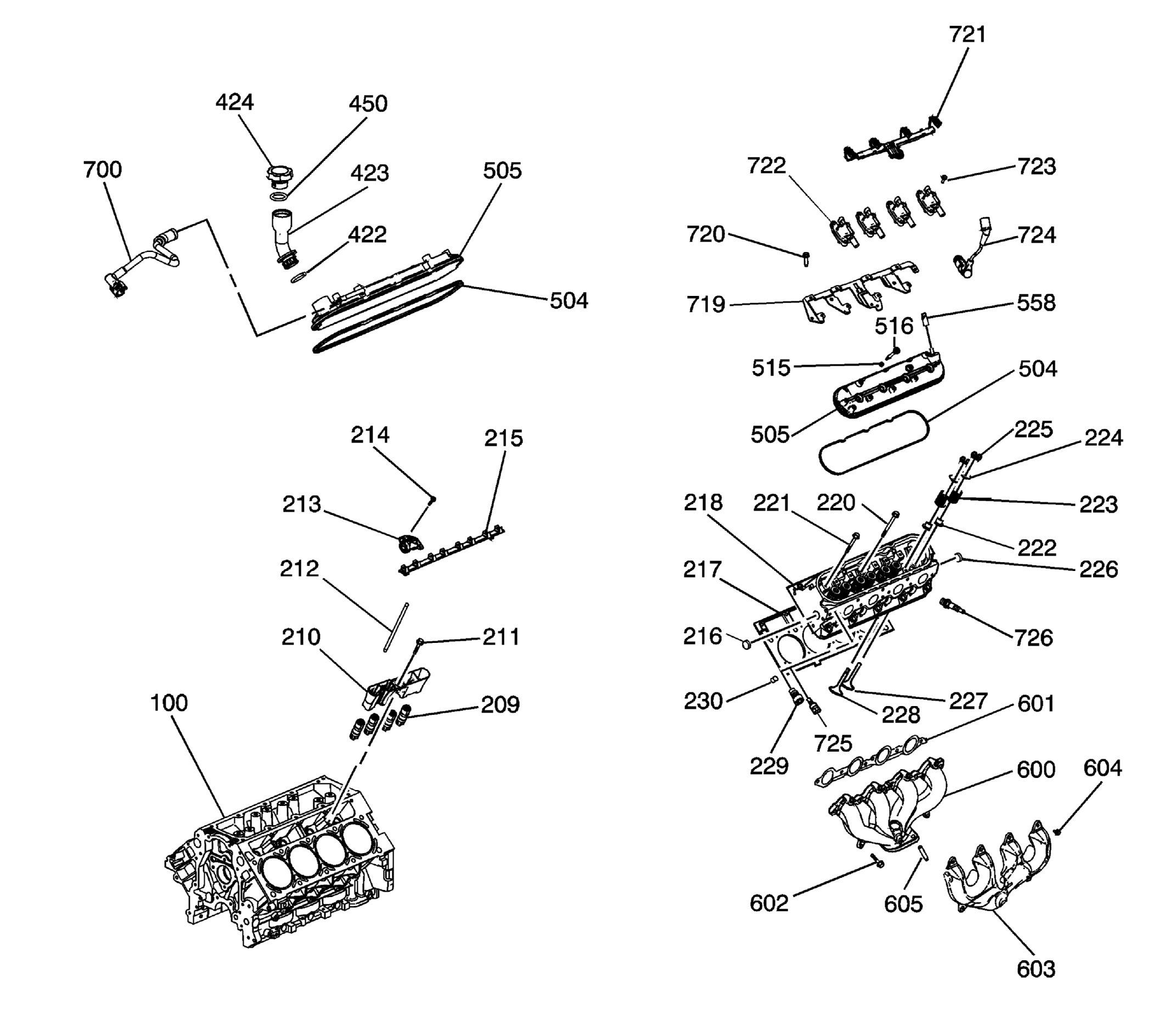

Cylinder Head/Upper Engine
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 100 | Engine Block |
| 209 | Valve Lifter |
| 210 | Valve Lifter Guide |
| 211 | Bolt |
| 212 | Pushrod |
| 213 | Valve Rocker Arm |
| 214 | Bolt |
| 215 | Valve Rocker Arm Pivot Support |
| 216 | Core Hole Plug |
| 217 | Cylinder Head Gasket |
| 218 | Cylinder Head |
| 220 | Cylinder Head Bolt - M11 |
| 221 | Cylinder Head Bolt - M8 |
| 222 | Valve Stem Oil Seal |
| 223 | Valve Spring |
| 224 | Valve Spring Cap |
| 225 | Valve Stem Key |
| 226 | Core Hole Plug |
| 227 | Intake Valve |
| 228 | Exhaust Valve |
| 229 | Cylinder Head Plug |
| 230 | Cylinder Head Locating Pin |
| 422 | O-ring |
| 423 | Oil Fill Tube |
| 424 | Oil Fill Cap |
| 450 | O-ring |
| 504 | Valve Rocker Arm Cover Gasket |
| 504 | Valve Rocker Arm Cover Gasket |
| 505 | Valve Rocker Arm Cover |
| 505 | Valve Rocker Arm Cover |
| 515 | Bolt Grommet |
| 516 | Bolt |
| 558 | Plug |
| 600 | Exhaust Manifold |
| 601 | Exhaust Manifold Gasket |
| 602 | Bolt |
| 603 | Exhaust Manifold Heat Shield |
| 604 | Bolt |
| 605 | Stud |
| 700 | Positive Crankcase Ventilation (PCV) Hose - Fresh Air |
| 719 | Ignition Coil Bracket |
| 720 | Stud |
| 721 | Ignition Coil Wire Harness Assembly |
| 722 | Ignition Coil |
| 723 | Bolt |
| 724 | Spark Plug Wire |
| 725 | Coolant Temperature Sensor (CTS) |
| 726 | Spark Plug |
