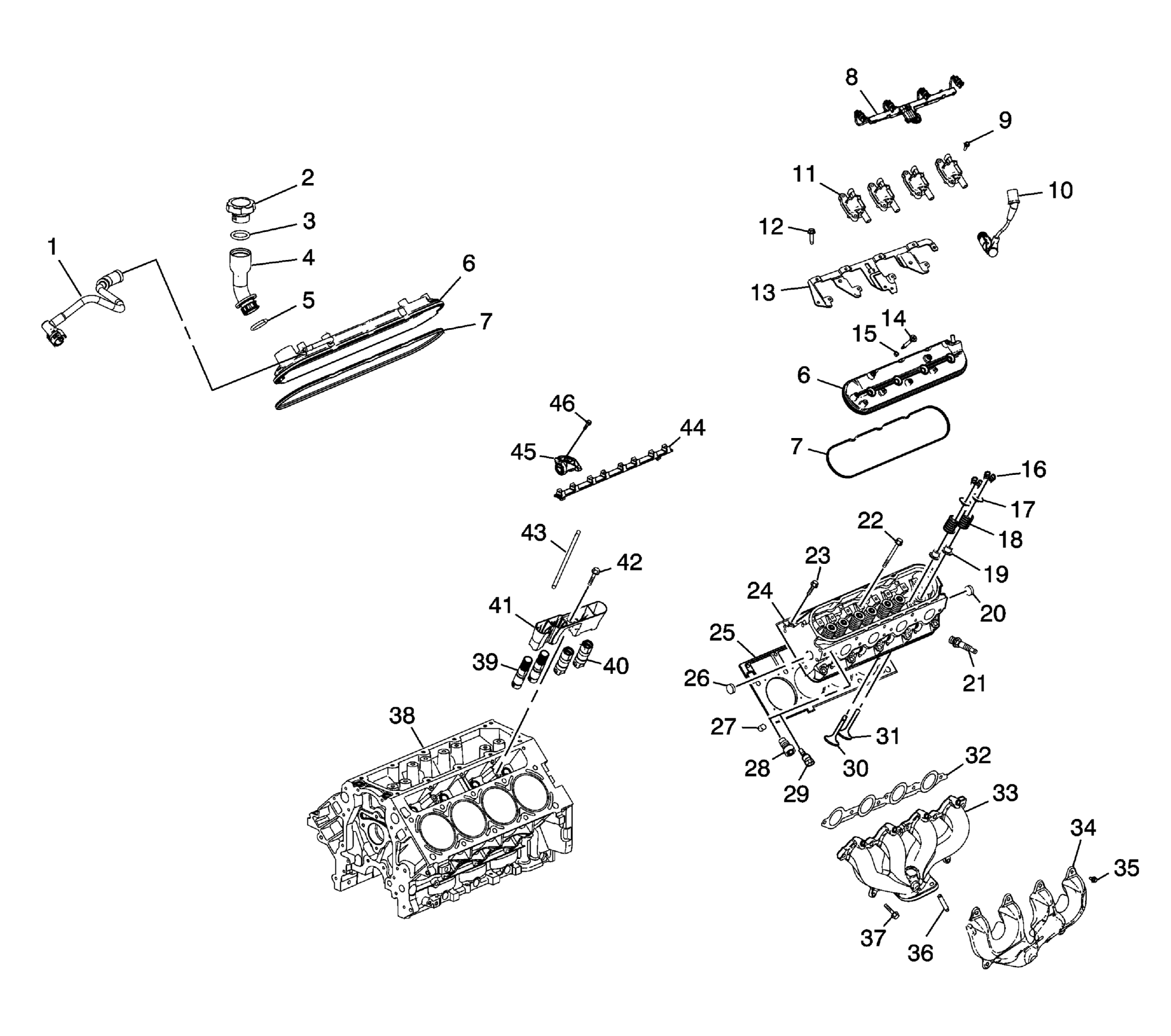

Cylinder Head/Upper Engine
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation (PCV) Hose - Fresh Air |
| 2 | Oil Fill Cap |
| 3 | O-ring |
| 4 | Oil Fill Tube |
| 5 | O-ring |
| 6 | Valve Rocker Arm Cover |
| 6 | Valve Rocker Arm Cover |
| 7 | Valve Rocker Arm Cover Gasket |
| 7 | Valve Rocker Arm Cover Gasket |
| 8 | Ignition Coil Wire Harness Assembly |
| 9 | Bolt |
| 10 | Spark Plug Wire |
| 11 | Ignition Coil |
| 12 | Bolt |
| 13 | Ignition Coil Bracket |
| 14 | Bolt |
| 15 | Bolt Grommet |
| 16 | Valve Stem Key |
| 17 | Valve Spring Cap |
| 18 | Valve Spring |
| 19 | Valve Stem Oil Seal |
| 20 | Core Hole Plug |
| 21 | Spark Plug |
| 22 | Cylinder Head Bolt - M11 |
| 23 | Cylinder Head Bolt - M8 |
| 24 | Cylinder Head |
| 25 | Cylinder Head Gasket |
| 26 | Core Hole Plug |
| 27 | Cylinder Head Locating Pin |
| 28 | Cylinder Head Plug |
| 29 | Coolant Temperature Sensor (CTS) |
| 30 | Exhaust Valve |
| 31 | Intake Valve |
| 32 | Exhaust Manifold Gasket |
| 33 | Exhaust Manifold |
| 34 | Exhaust Manifold Heat Shield |
| 35 | Bolt |
| 36 | Stud |
| 37 | Bolt |
| 38 | Engine Block |
| 39 | Valve Lifter - Active Fuel Management |
| 40 | Valve Lifter - Non-Active Fuel Management |
| 41 | Valve Lifter Guide |
| 42 | Bolt |
| 43 | Pushrod |
| 44 | Valve Rocker Arm Pivot Support |
| 45 | Valve Rocker Arm |
| 46 | Bolt |
