Valve Rocker Arm Cover Installation - Right Side (LSA)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Valve Rocker Arm Cover Gasket
    GM1272820Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • All gasket surfaces should be free of oil or other foreign material during assembly.
    • DO NOT use the valve rocker arm cover gasket again.
  1. Install NEW valve rocker arm cover grommets and use NEW valve rocker arm cover bolts if they are serviced with the grommet.
  2. Install a NEW gasket (504) into the valve rocker arm cover.

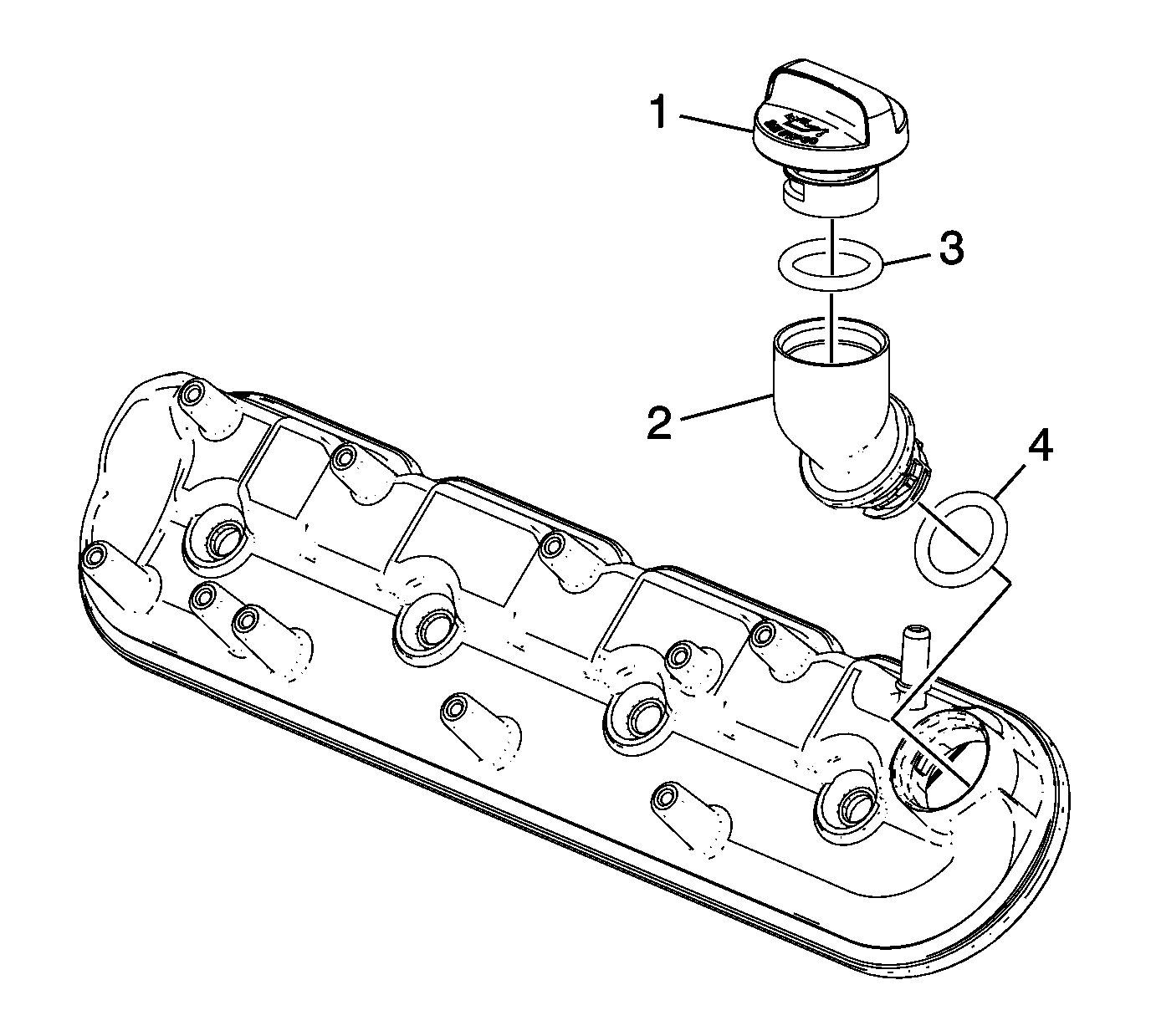

    3. Fig 2: Identifying Cover Components (Right Side)
    GM2156776Courtesy of GENERAL MOTORS COMPANY
  3. Install a NEW oil cap (1), oil fill tube (2) and seals (3, 4) to the valve rocker arm cover, as required.

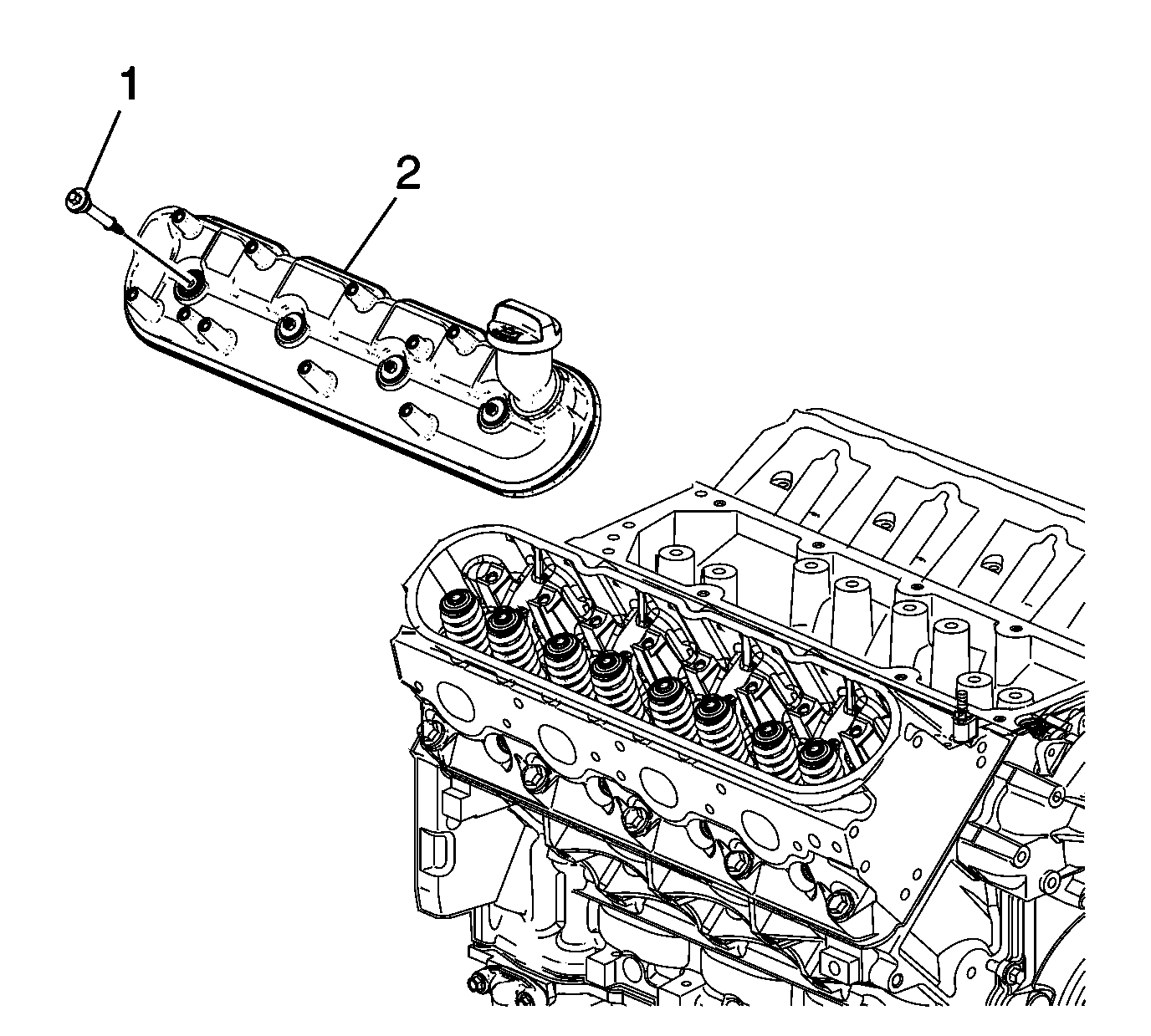

    4. Fig 3: Identifying Valve Rocker Arm Cover
    GM2156771Courtesy of GENERAL MOTORS COMPANY
  4. Install the valve rocker arm cover (2) onto the cylinder head.
    5. CAUTION:

    Refer to Fastener Caution .

  5. Install the cover bolts (1) with NEW grommets and tighten to 12 N.m (106 lb in).

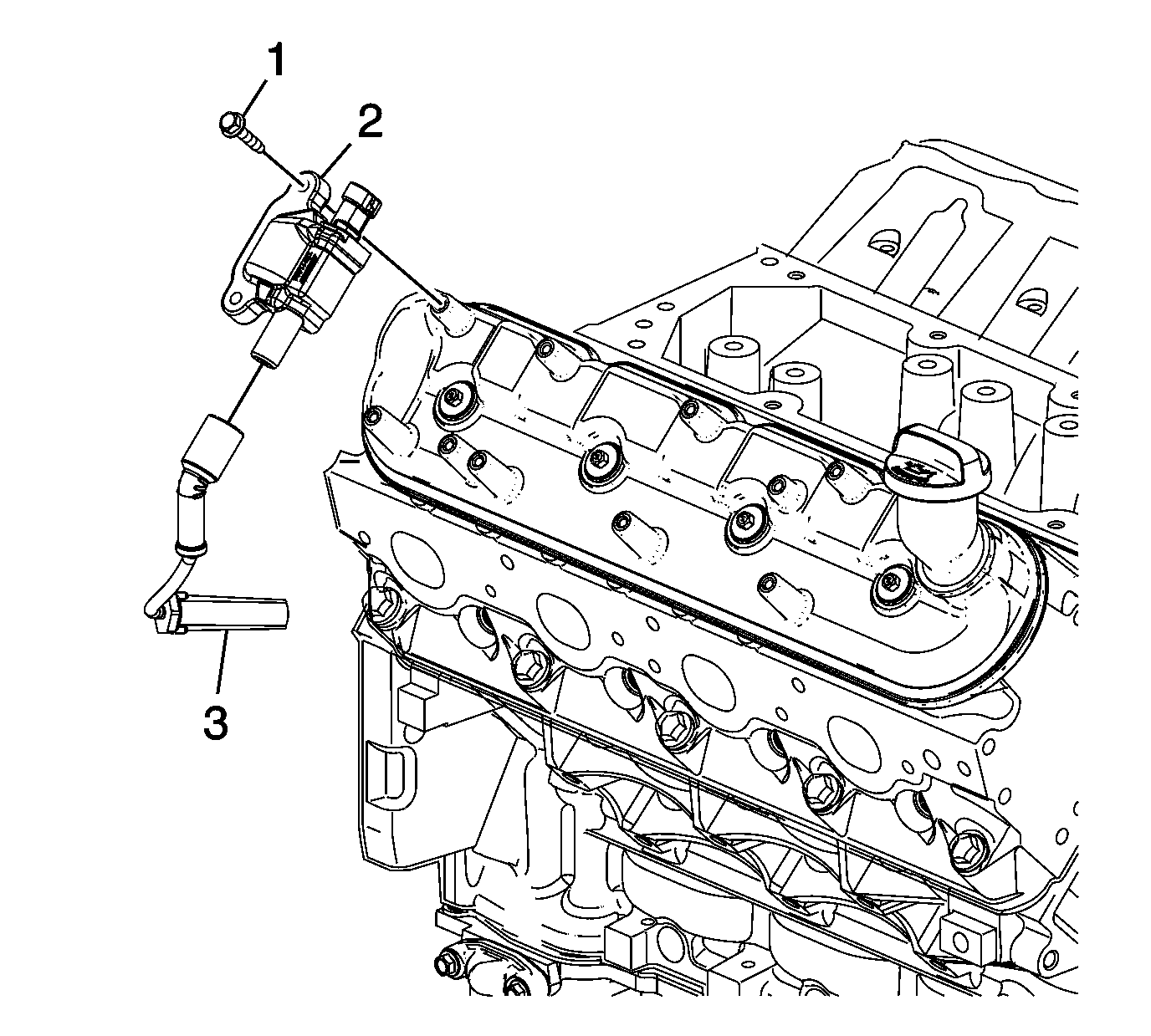

    6. Fig 4: Identifying Ignition Coil, Bolt & Spark Plug Wire (Right Side)
    GM2156766Courtesy of GENERAL MOTORS COMPANY
  6. Apply threadlock GM P/N 12345382 (Canadian P/N 10953489), or equivalent, to the threads of the ignition coil bolts (1).
  7. Install the ignition coils (2) and bolts (1) and tighten to 12 N.m (106 lb in).
  8. Install the spark plug wires (3).
