Valve Rocker Arm Cover Cleaning and Inspection (LS7)

WARNING: This page is about a different variant/trim than selected.

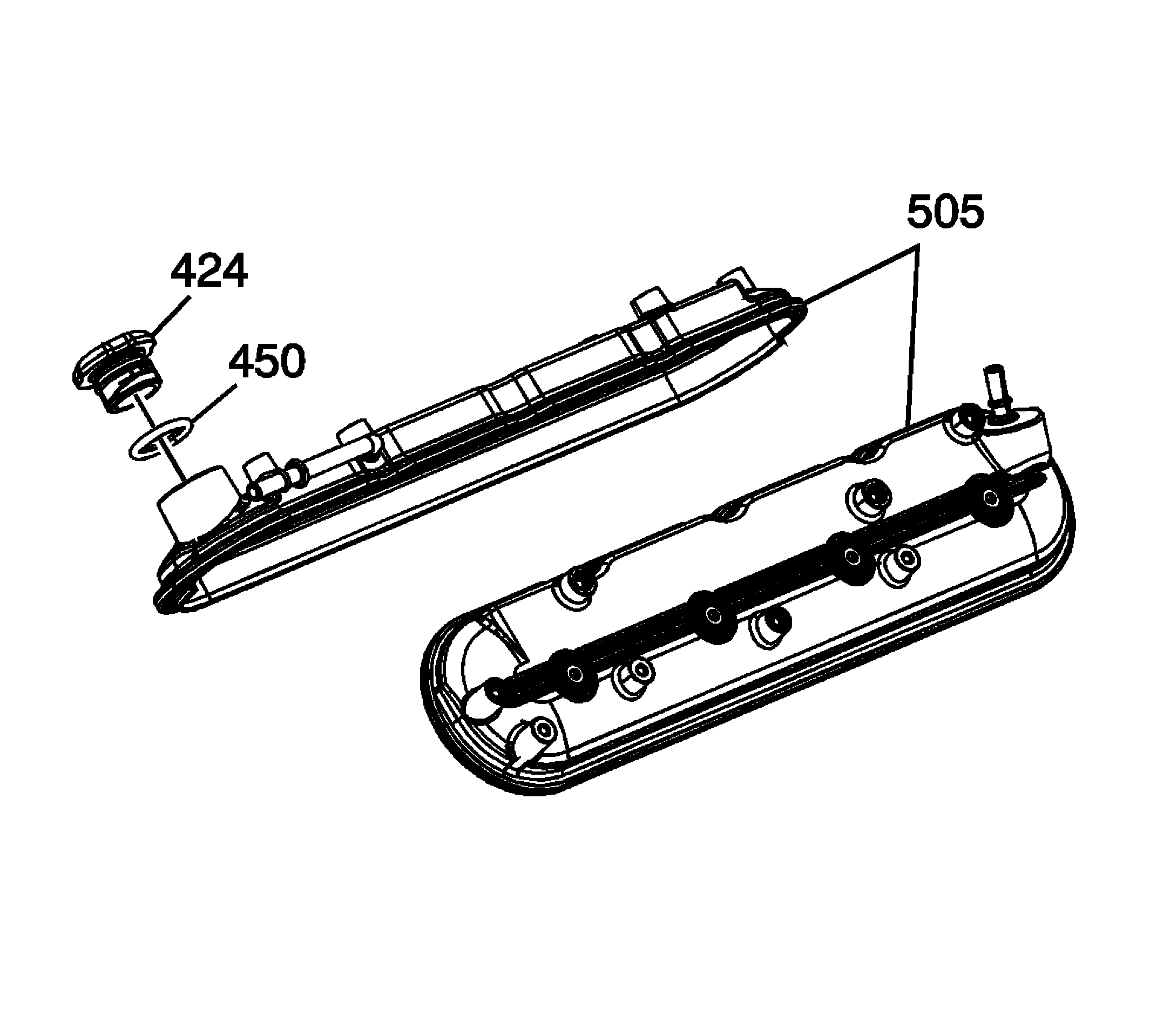

    Fig 1: Inspecting The Oil Cap For A Loose Fit, Leakage, Or Damage
    GM1552462Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Do not use the valve rocker arm cover gasket again. Install a NEW gasket during assembly.
    • Remove the ignition coils before cleaning the cover in solvent. Do not submerge the ignition coils in solvent.
    • Do not remove the oil cap from the right valve rocker arm cover, unless service is required. If the cap is removed, install a NEW cap during assembly.
  1. Inspect the oil cap (424) for a loose fit, leakage, or damage.
  2. Inspect the covers (505) for the following conditions:
    • Scoring or damage to the gasket surfaces
    • Ventilation system passages for restrictions
    • Threaded bolt holes for damage or debris
    • Leakage at the oil cap seal (450)
