Throttle Body Assembly Installation (LSA)

WARNING: This page is about a different variant/trim than selected.

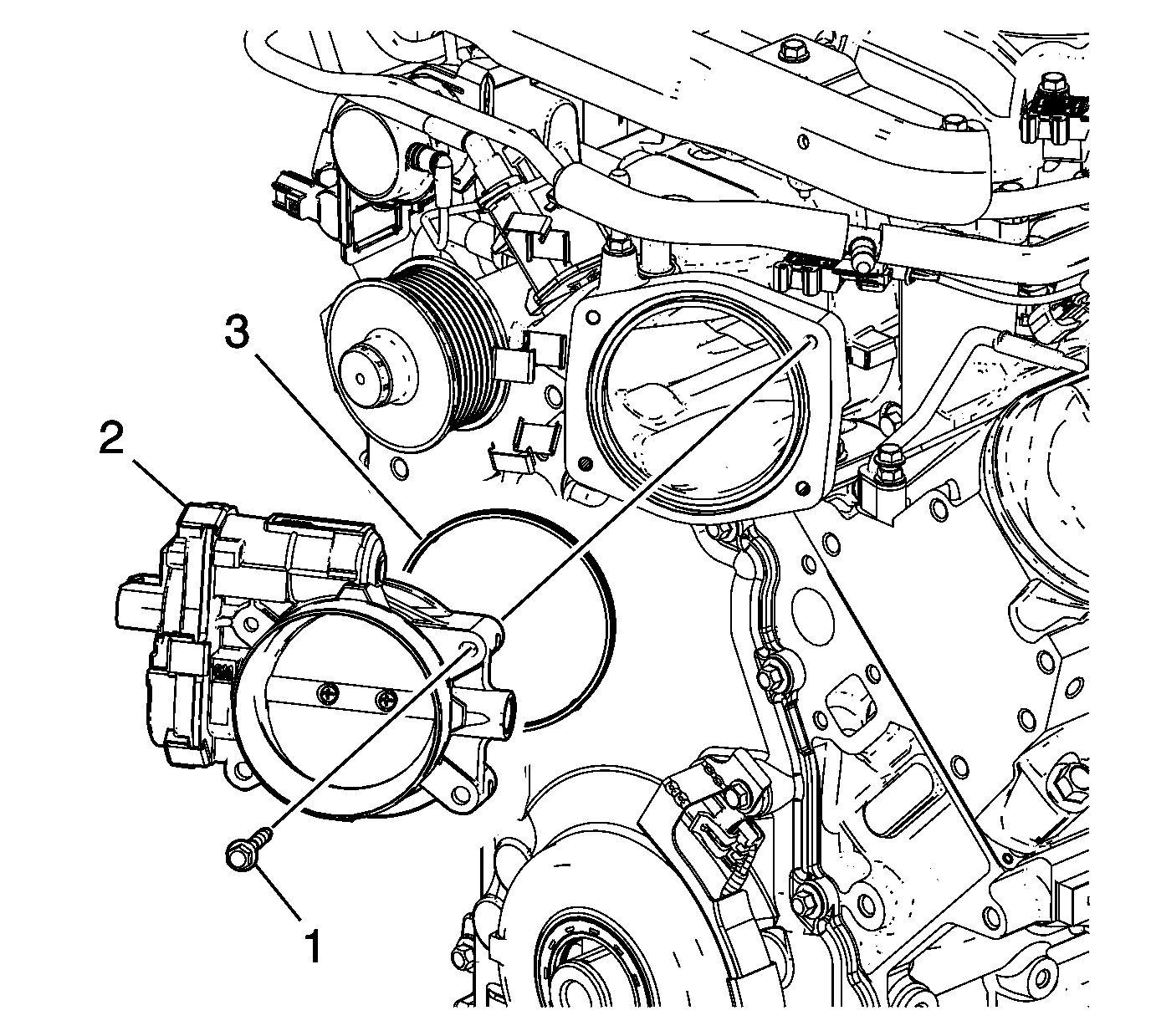

    Fig 1: Identifying Throttle Body Components
    GM2156351Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

  1. Install the throttle body gasket (3) to the supercharger.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the throttle body (2) and bolts (1) and tighten to 10 N.m (89 lb in).
