Connecting Rod Bearing Installation Procedure

WARNING: This page is about a different variant/trim than selected.

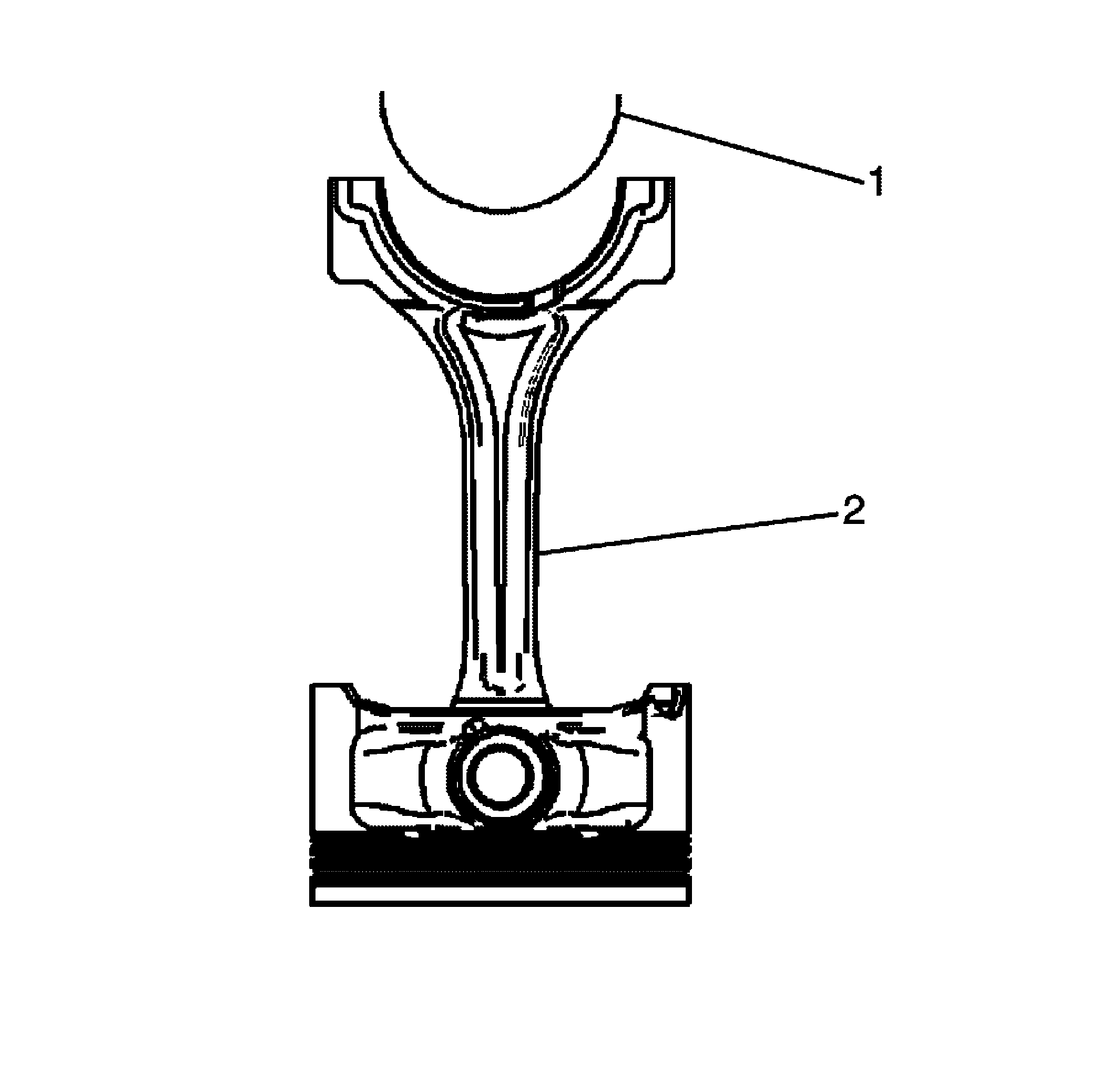

    Fig 1: Locating Second Ring, Oil Control Ring Expander, Top Ring, Lower & Upper Oil Control Ring
    GM1960683Courtesy of GENERAL MOTORS COMPANY
  1. Clean the connecting rod (2) and the connecting rod cap bearing bore with a lint-free cloth.
  2. Clean all the oil from behind the connecting rod bearing (1) halves.
  3. Install new upper connecting rod bearings (1) into position. Roll the connecting rod bearings (1) into position so that the lock tang engages the alignment slot. The connecting rod bearings (1) must fit flush in the connecting rod (2).

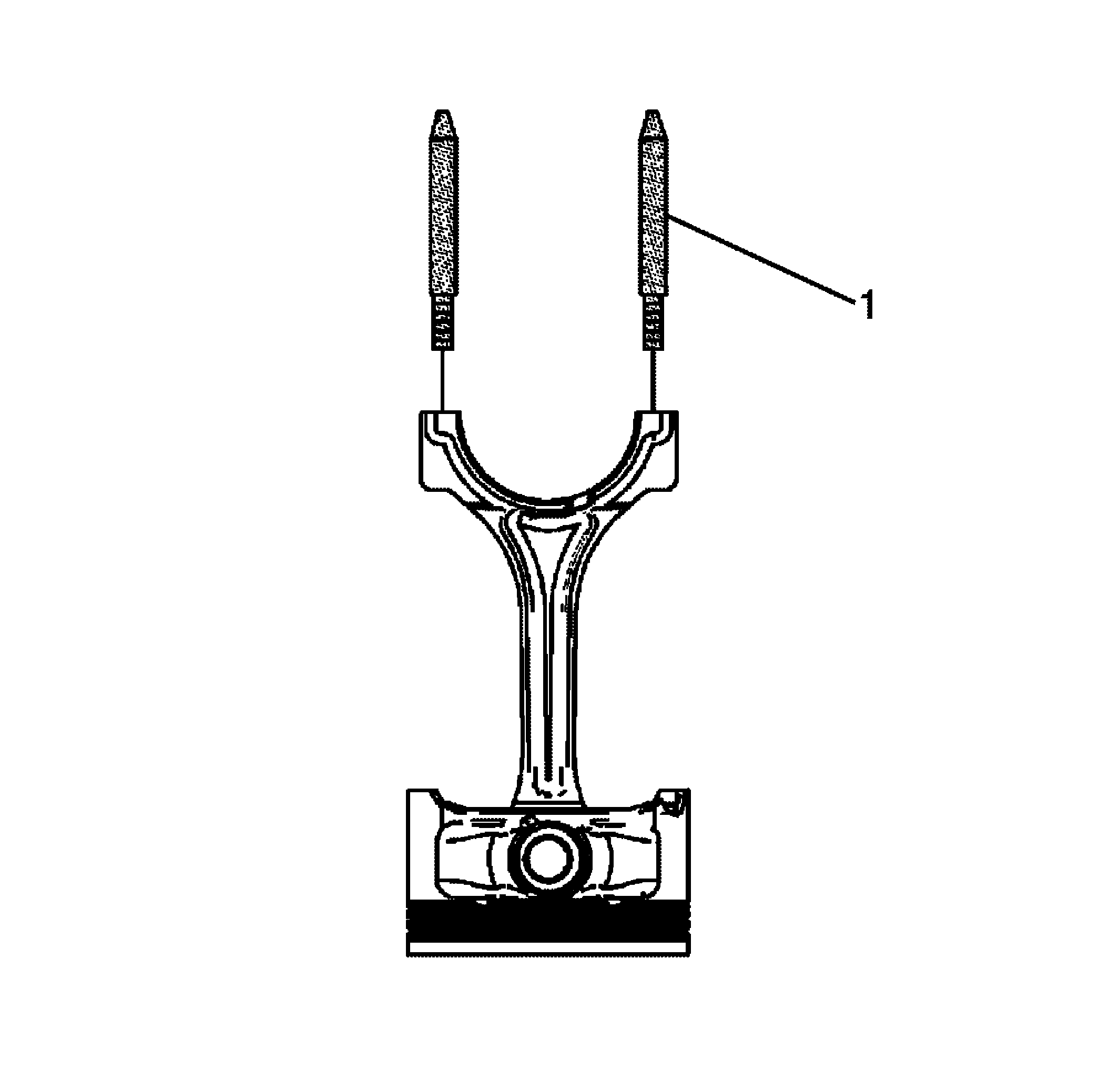

    4. Fig 2: View Of EN 46121
    GM1960684Courtesy of GENERAL MOTORS COMPANY
  4. Install the J 41556  guide set (1) into the connecting rod bolt holes.

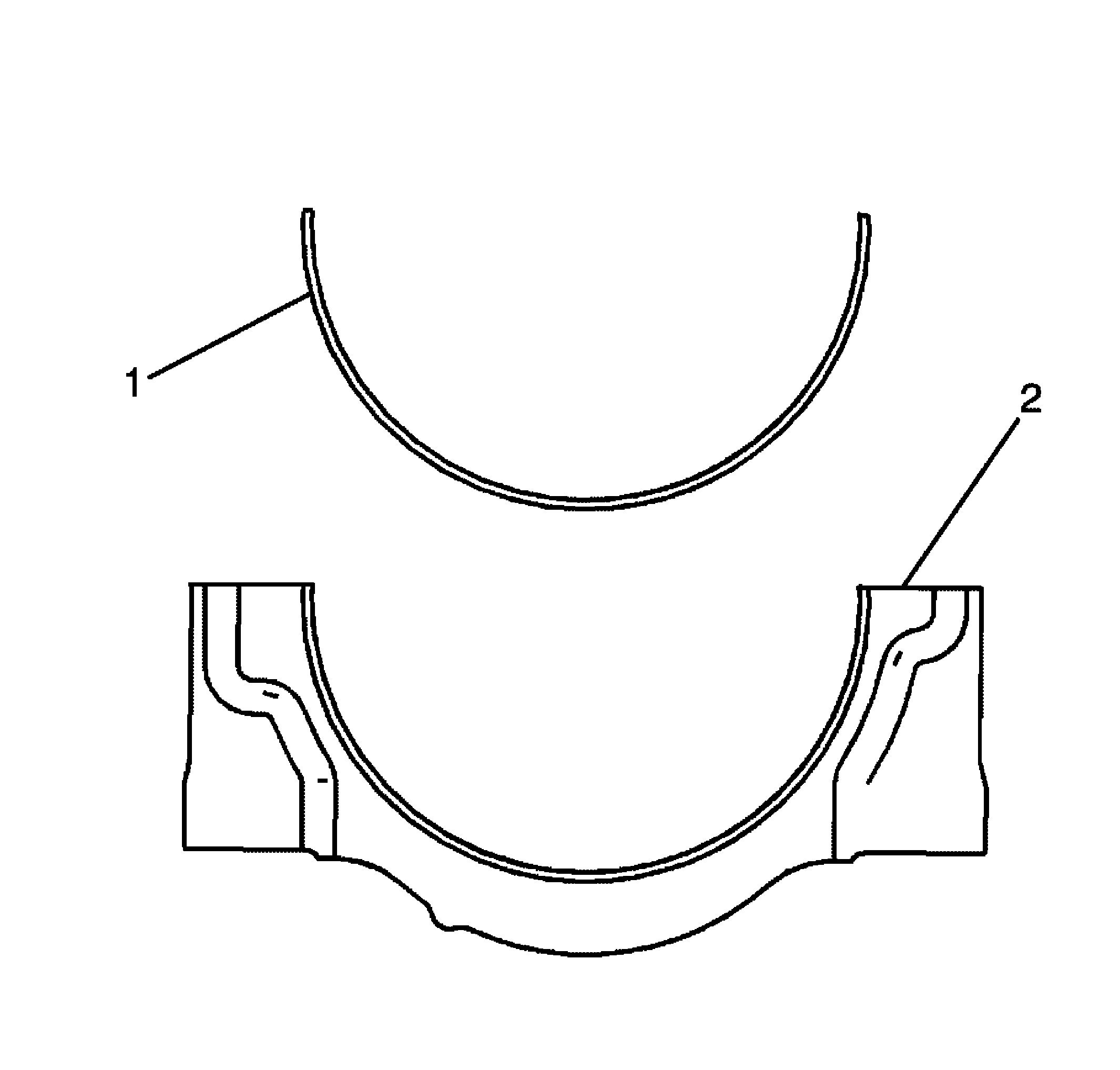

    5. Fig 3: Identifying Lower Connecting Rod Bearings & Connecting Rod Cap
    GM1960686Courtesy of GENERAL MOTORS COMPANY
  5. Install new lower connecting rod bearings (1) into position in the connecting rod cap (2). Roll the connecting rod bearings (1) into position so that the lock tang engages the alignment slot. The bearings must fit flush with the connecting rod cap (2).
