Upper Engine Oil Tank and Components Disassemble

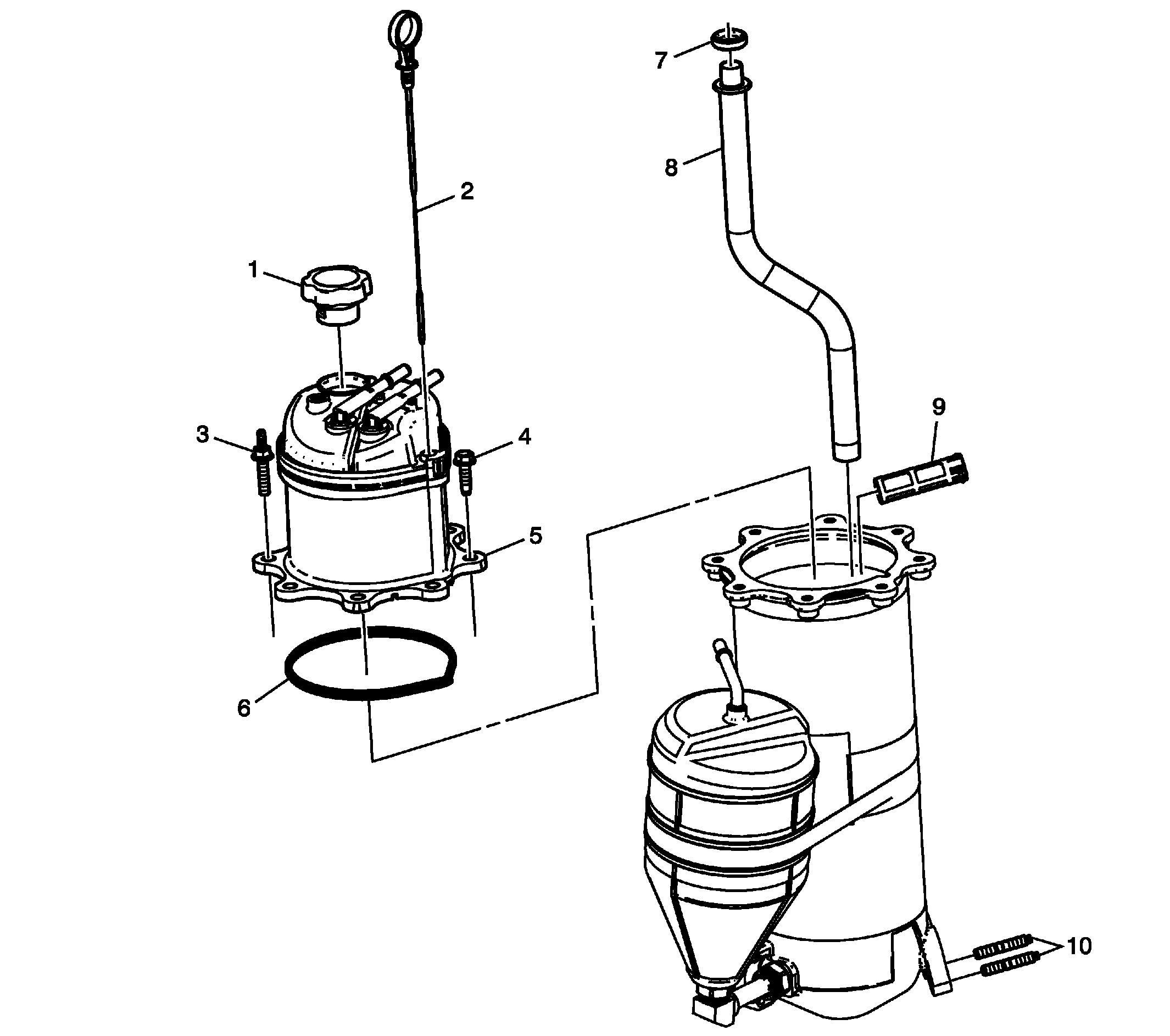

| Callout | Component Name |
|---|---|
|
CAUTION:
Preliminary Procedure Prior to disassembly, mark the upper and lower portions of the large tank for proper reassembly. Mark the tank on the area below the oil fill cap.Refer to Engine Oil Tank Debris Caution . |
|
| 1 | Oil Filler Cap |
| 2 | Oil Level Indicator |
| 3 | Engine Oil Tank Bolt/Stud
NOTE:
Note the locations of the bolt/studs for reassembly. |
| 4 | Engine Oil Tank Bolt
NOTE:
Note the locations of the bolt/studs for reassembly. |
| 5 | Engine Oil Tank (Upper) |
| 6 | Engine Oil Tank Gasket
NOTE:
Discard gasket. It is not reusable. |
| 7 | Engine Oil/Air Separator Seal |
| 8 | Oil Transfer Tube |
| 9 | Oil Pump Screen Procedure Reaching inside and into the bottom of the tank, pull the screen into the tank in order to remove.
NOTE:
The screen locking tabs may break upon removal from the oil tank. If the screen cannot be properly cleaned or has a broken locking tab, replace with a new screen. |
| 10 | Engine Oil Tank Studs |
