Lower and Auxiliary Engine Oil Tanks Disassemble

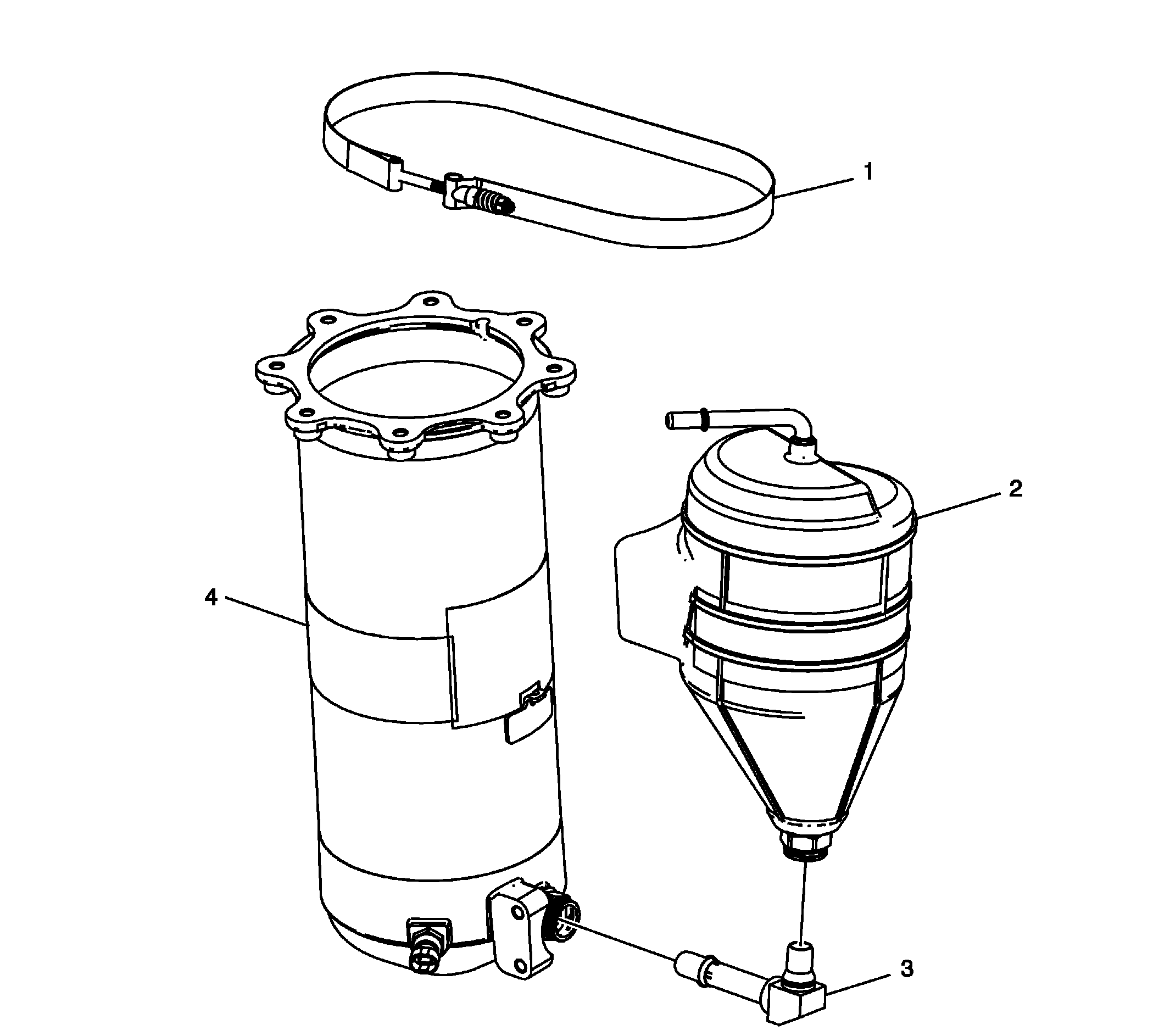

| Callout | Component Name |
|---|---|
| 1 | Engine Oil Tank Clamp |
| 2 | Engine Oil Tank (Auxiliary)
NOTE:
Remove the fittings from the tanks as required. |
| 3 | Oil Transfer Tube
NOTE:
Remove the retaining clips from the transfer tube fittings. |
| 4 | Engine Oil Tank (Lower Tank)
NOTE:
Remove the fittings from the tanks as required. |
