Lower and Auxiliary Engine Oil Tanks Assemble
WARNING: This page is about a different variant/trim than selected.
Lower and Auxiliary Engine Oil Tanks Assemble

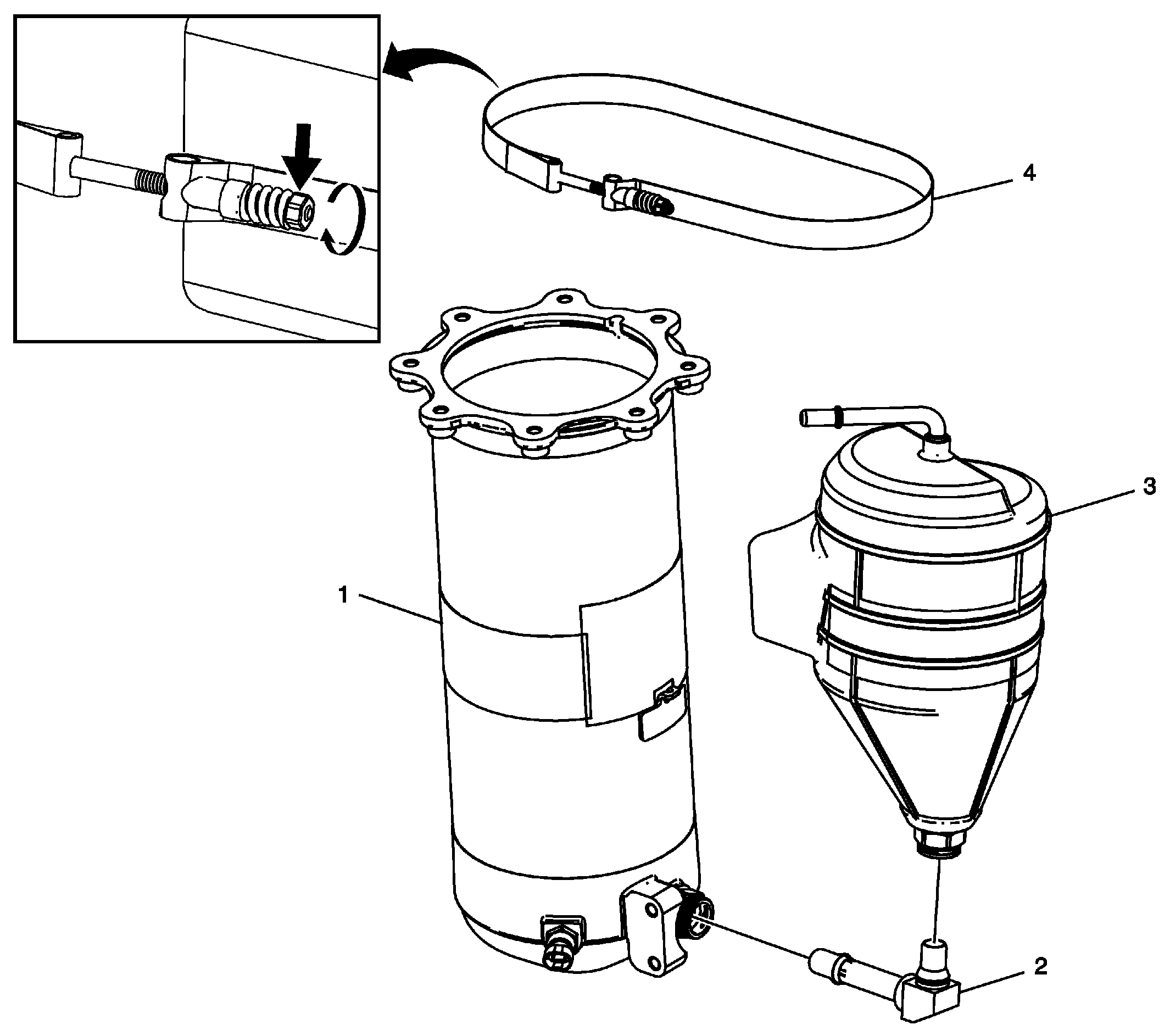

| Callout | Component Name |
|---|---|
|
CAUTION:
Preliminary Procedure If the oil transfer tube fittings were removed, then install to the large and small oil tanks and tighten to 35 (26 ft lb) .Refer to Engine Oil Tank Debris Caution . |
|
| 1 | Engine Oil Tank (Lower Tank)
CAUTION:
Refer to Engine Oil Cooler Debris Caution . |
| 2 | Oil Transfer Tube
CAUTION:
Refer to Fastener Caution . |
| 3 | Engine Oil Tank (Auxiliary) |
| 4 | Engine Oil Tank Clamp Procedure Tighten the nut . With the nut of the clamp positioned so that the face of the nut is flush with the end of the bolt, rotate the nut clockwise 21 complete turns to apply tension to the clamp. |
