Oil Pan Removal (LS7)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Left Closeout Cover & Bolt
    GM178477Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The original oil pan gasket is retained and aligned to the oil pan by rivets. When installing a new gasket, it is not necessary to install new oil pan gasket rivets.
    • DO NOT use the oil pan gasket again. When installing the oil pan, install a NEW oil pan gasket.
  1. Remove the left closeout cover and bolt.

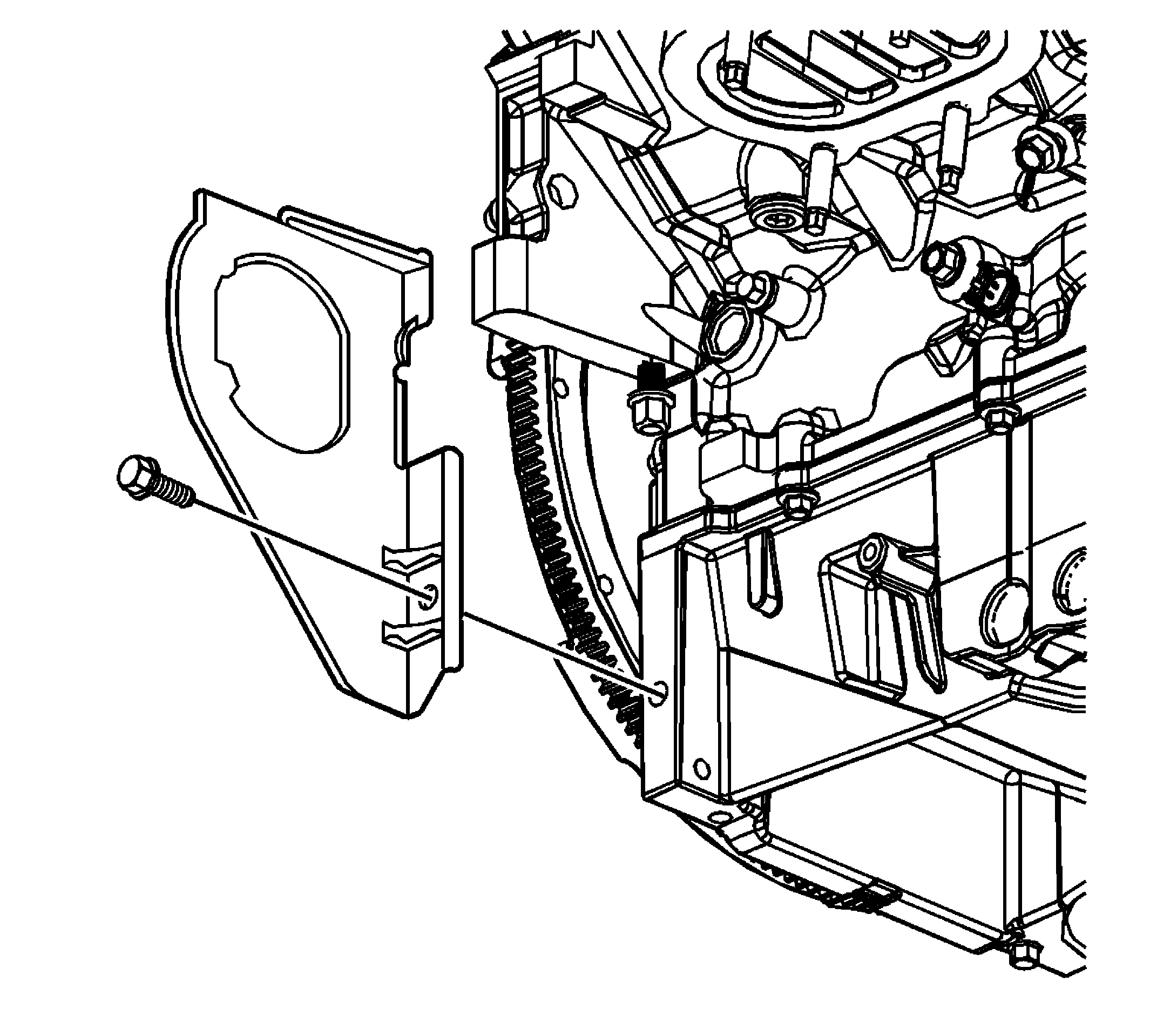

    2. Fig 2: Removing The Right Closeout Cover And Bolt
    GM1552541Courtesy of GENERAL MOTORS COMPANY
  2. Remove the right closeout cover and bolt.
    3. Fig 3: View Of Oil Pan & Bolts
    GM1552542Courtesy of GENERAL MOTORS COMPANY
  3. Remove the oil pan bolts (439, 453).
  4. Remove the oil pan (400).
    5. Fig 4: Drilling Out Oil Pan Gasket Retaining Rivets
    GM1272840Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • DO NOT allow foreign material to enter the oil passages of the oil pan. Cap or cover the openings, as required.
    • Use care not to gouge, score, or damage the oil pan sealing surface.
  5. Drill (2) out the oil pan gasket retaining rivets (1), if required.
  6. Remove the gasket (426) from the pan.
  7. Discard the gasket and rivets.
