Oil Pan Cleaning and Inspection (LSA)
WARNING: This page is about a different variant/trim than selected.

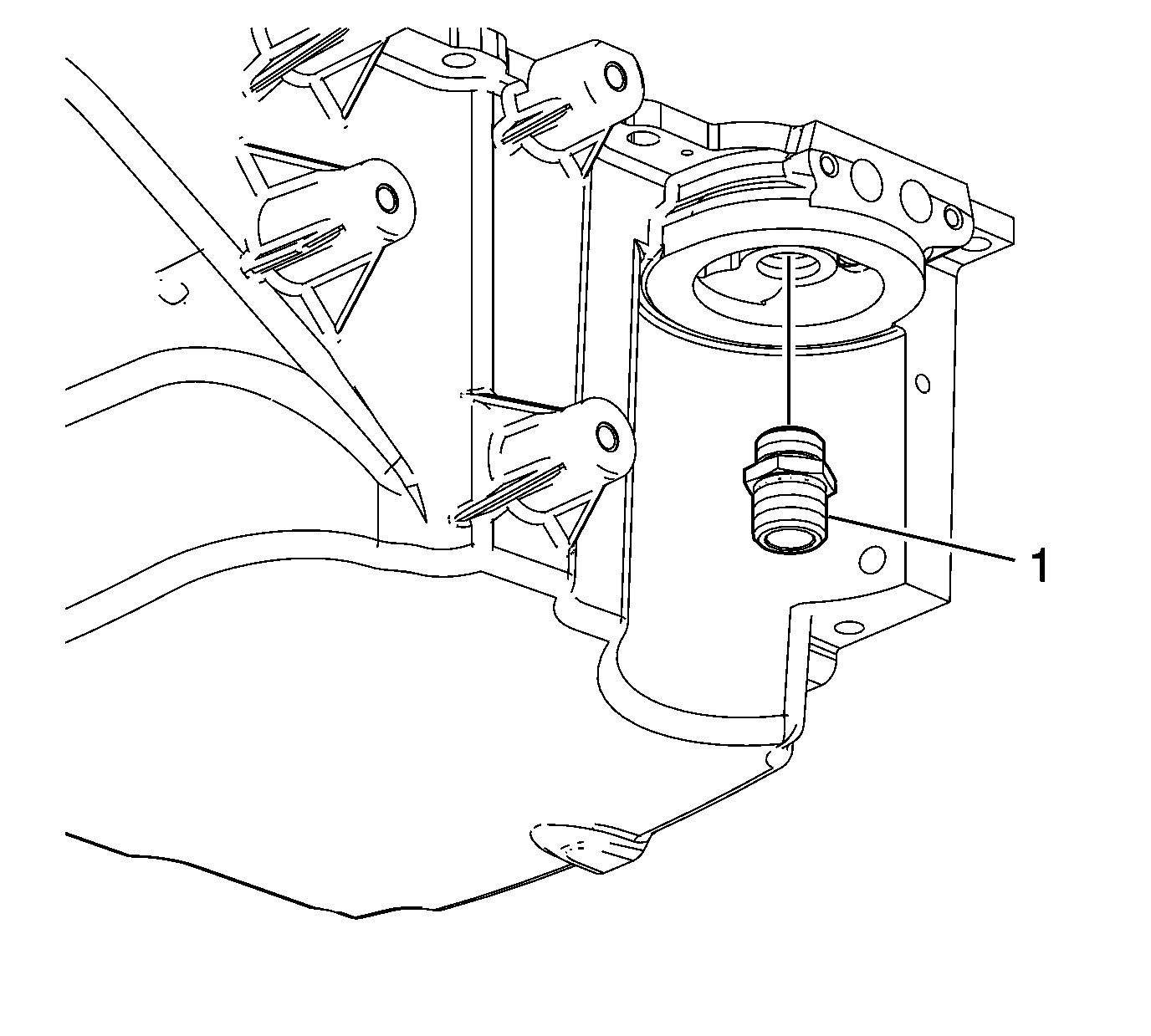

- Remove the oil filter fitting (1), as required.
- Clean the oil pan in solvent.
- Dry the oil pan with compressed air.

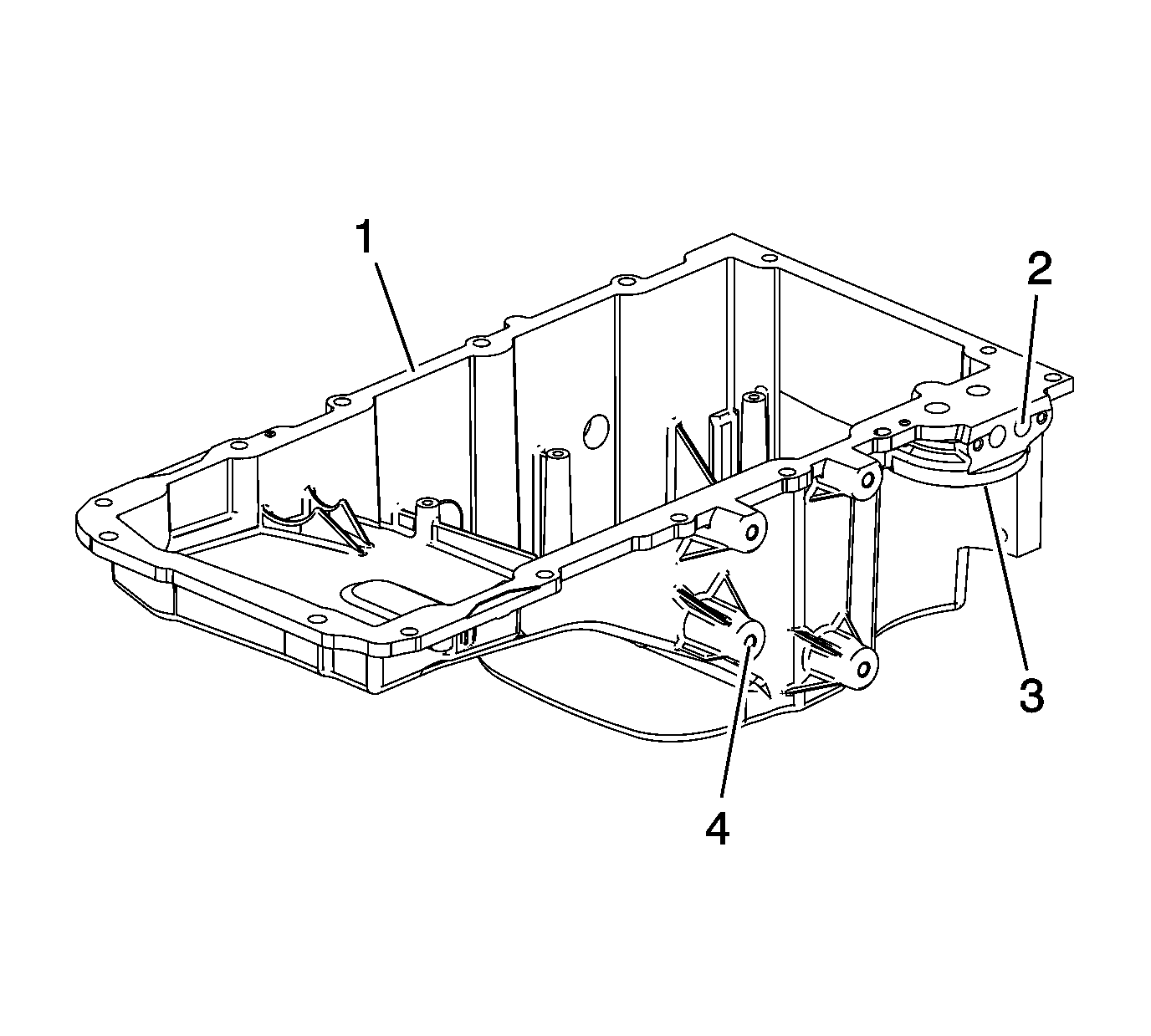

- Inspect the oil pan for the following conditions:
- Damaged gasket surfaces (1)
- Restrictions within the oil passages (2) of the pan
- Damaged oil filter seal surface (3)
- Threaded bolt holes (4) for damage
- Install the oil filter fitting (1), as required, and tighten to 55 N.m (40 lb ft).
WARNING:
Refer to Safety Glasses Warning .
CAUTION:
Refer to Fastener Caution .
