Oil Pan Cleaning and Inspection (LS3 or L99)

WARNING: This page is about a different variant/trim than selected.

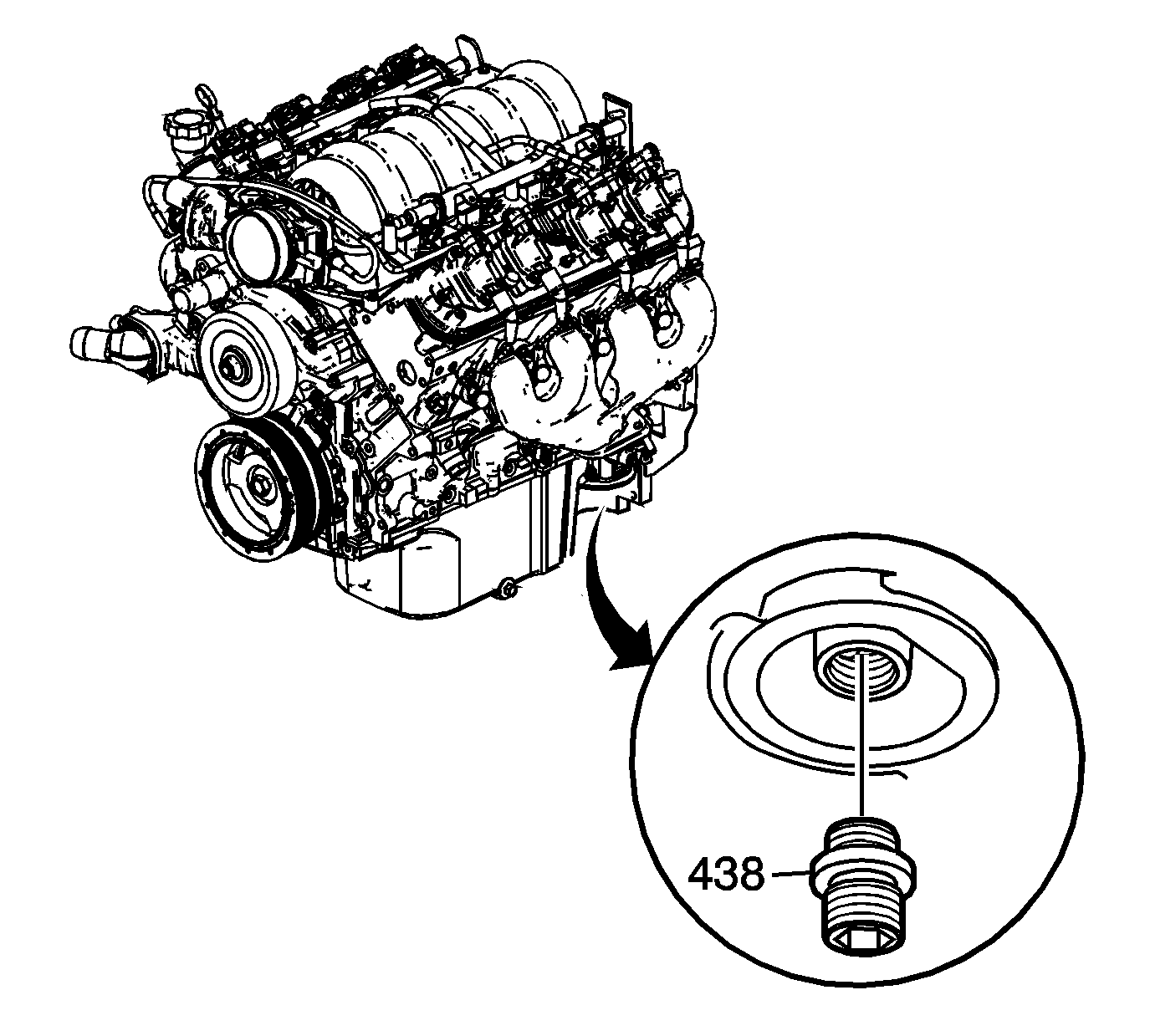

    Fig 1: Oil Filter Fitting
    GM1565281Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil filter fitting (438) as required.

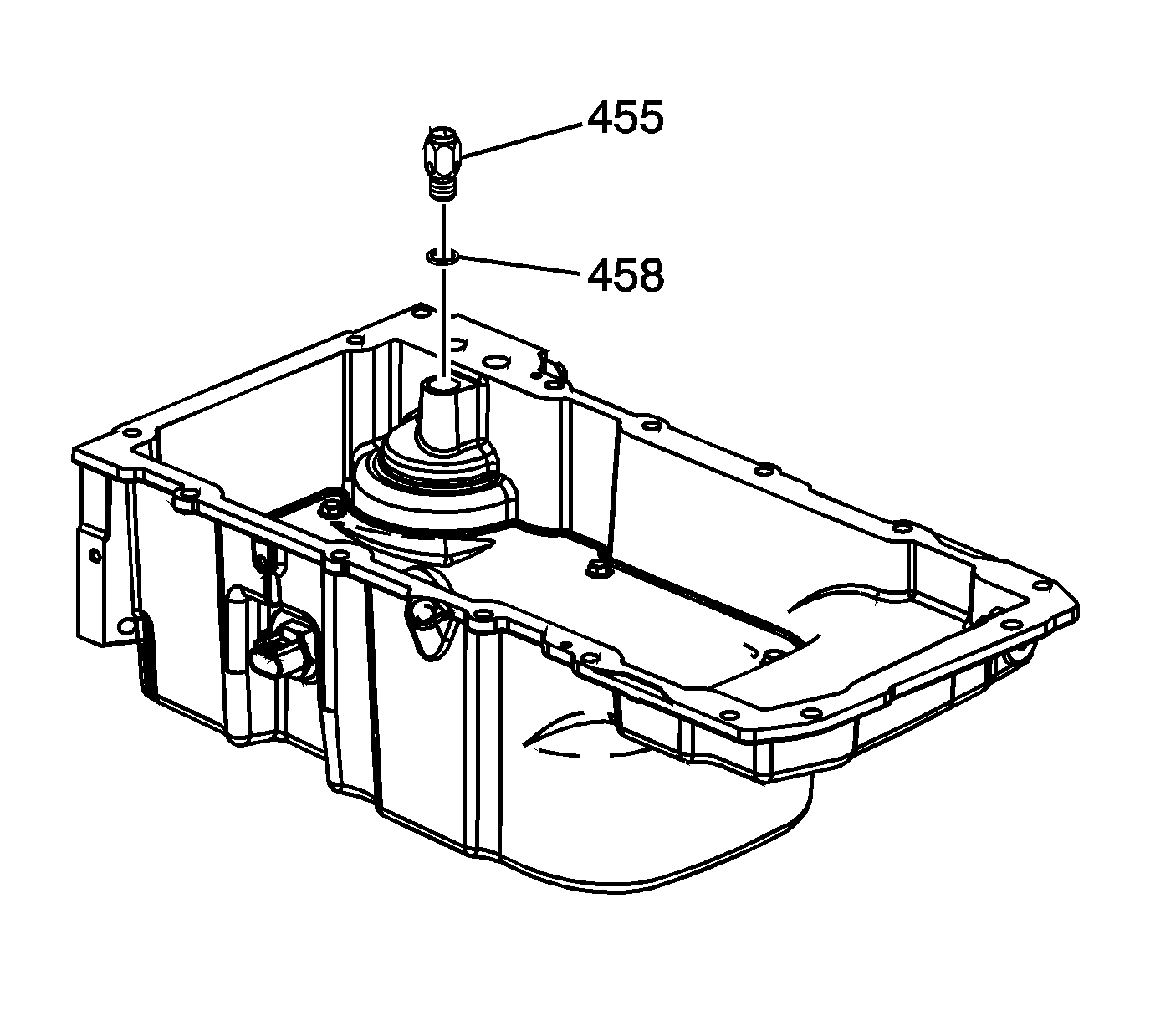

    2. Fig 2: Oil Pressure Relief Valve & Washer
    GM1593663Courtesy of GENERAL MOTORS COMPANY
  2. Remove the active fuel management oil pressure relief valve (455) and washer (458).

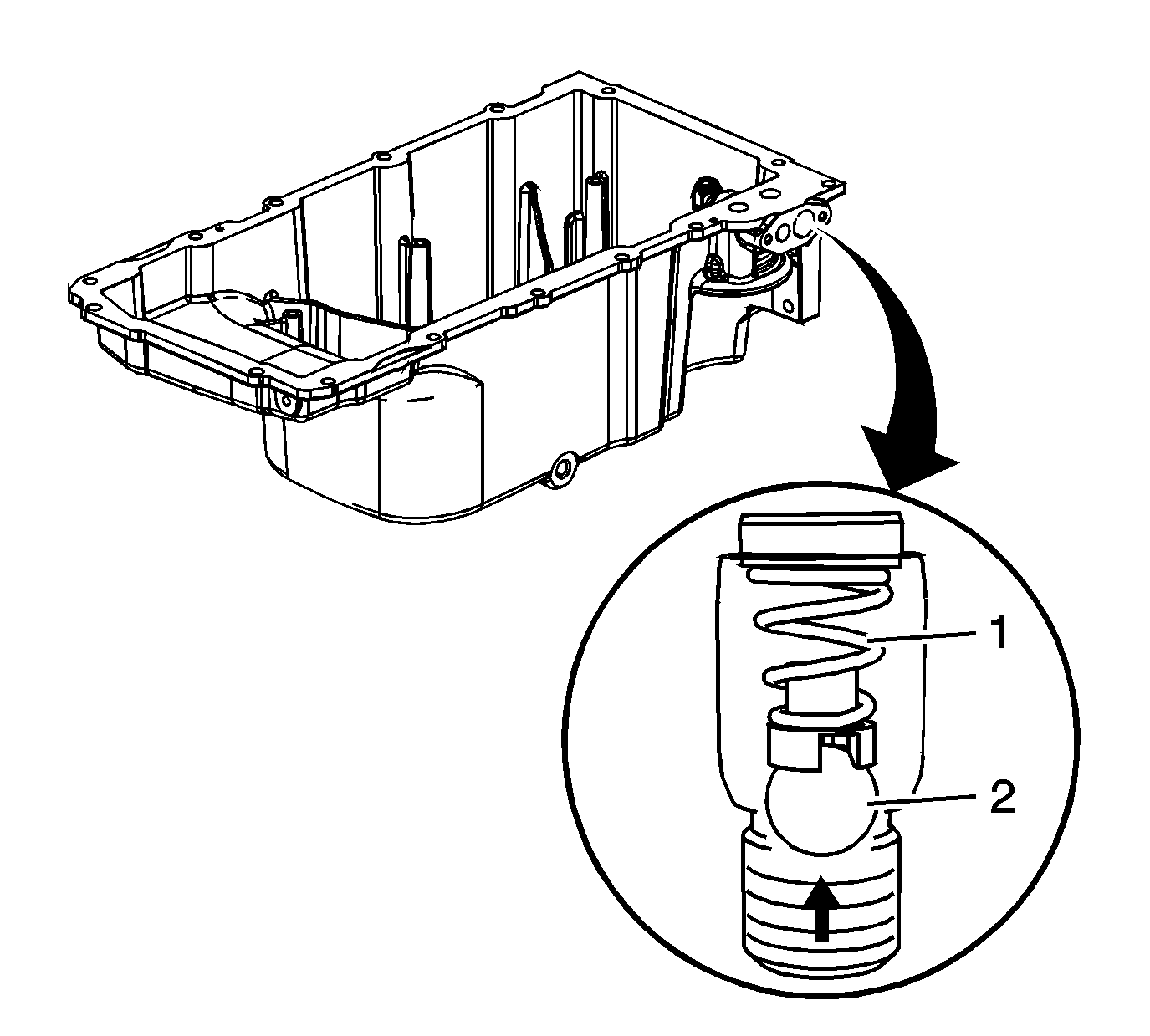

    3. Fig 3: Ball & Spring
    GM1565291Courtesy of GENERAL MOTORS COMPANY
  3. Inspect the active fuel management oil pressure relief valve for proper operation. Lightly depress the ball (2). The valve spring (1) should seat the ball to the proper closed position.

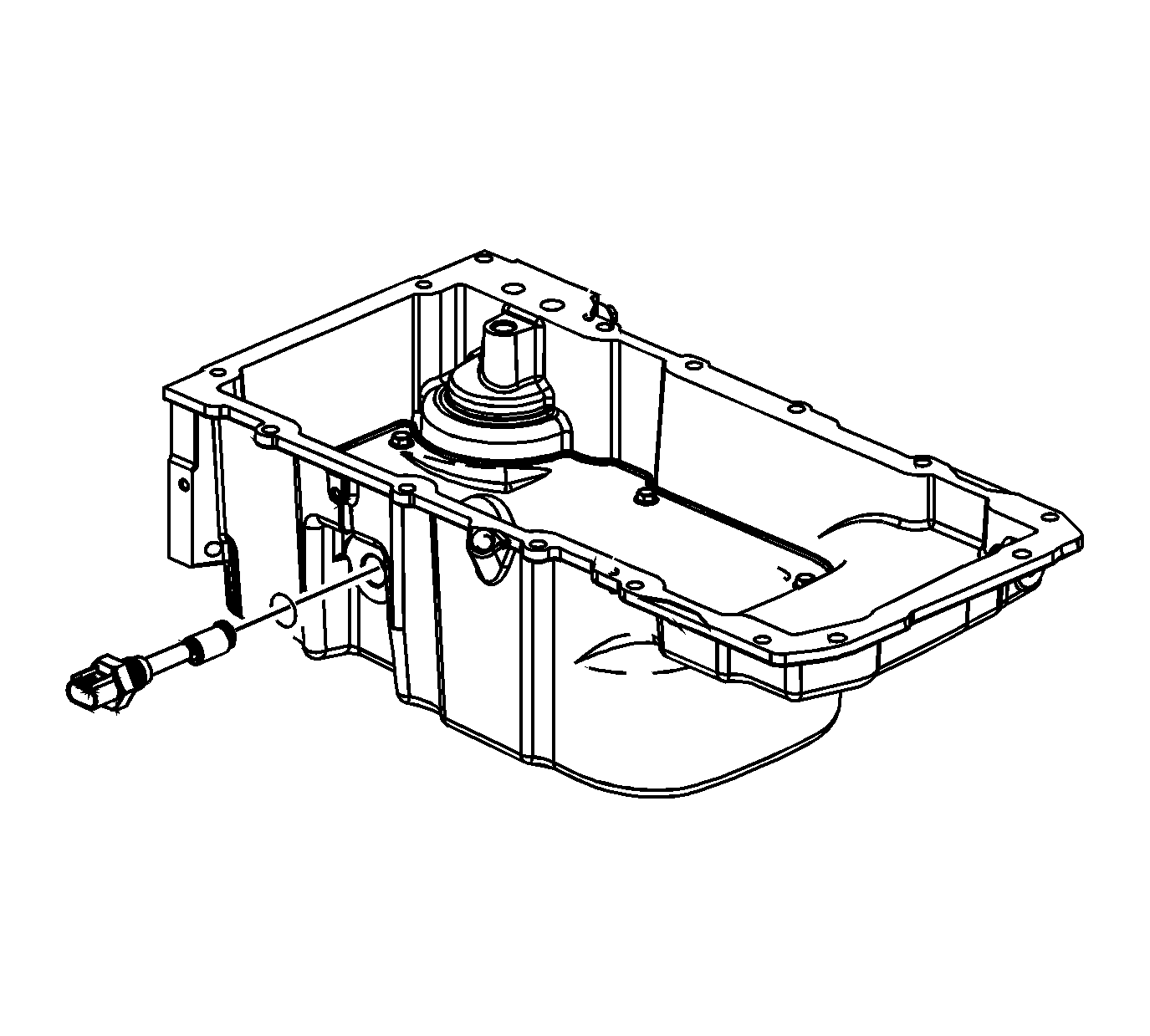

    4. Fig 4: Oil Level Sensor And O-Ring
    GM1593666Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil level sensor and O-ring.

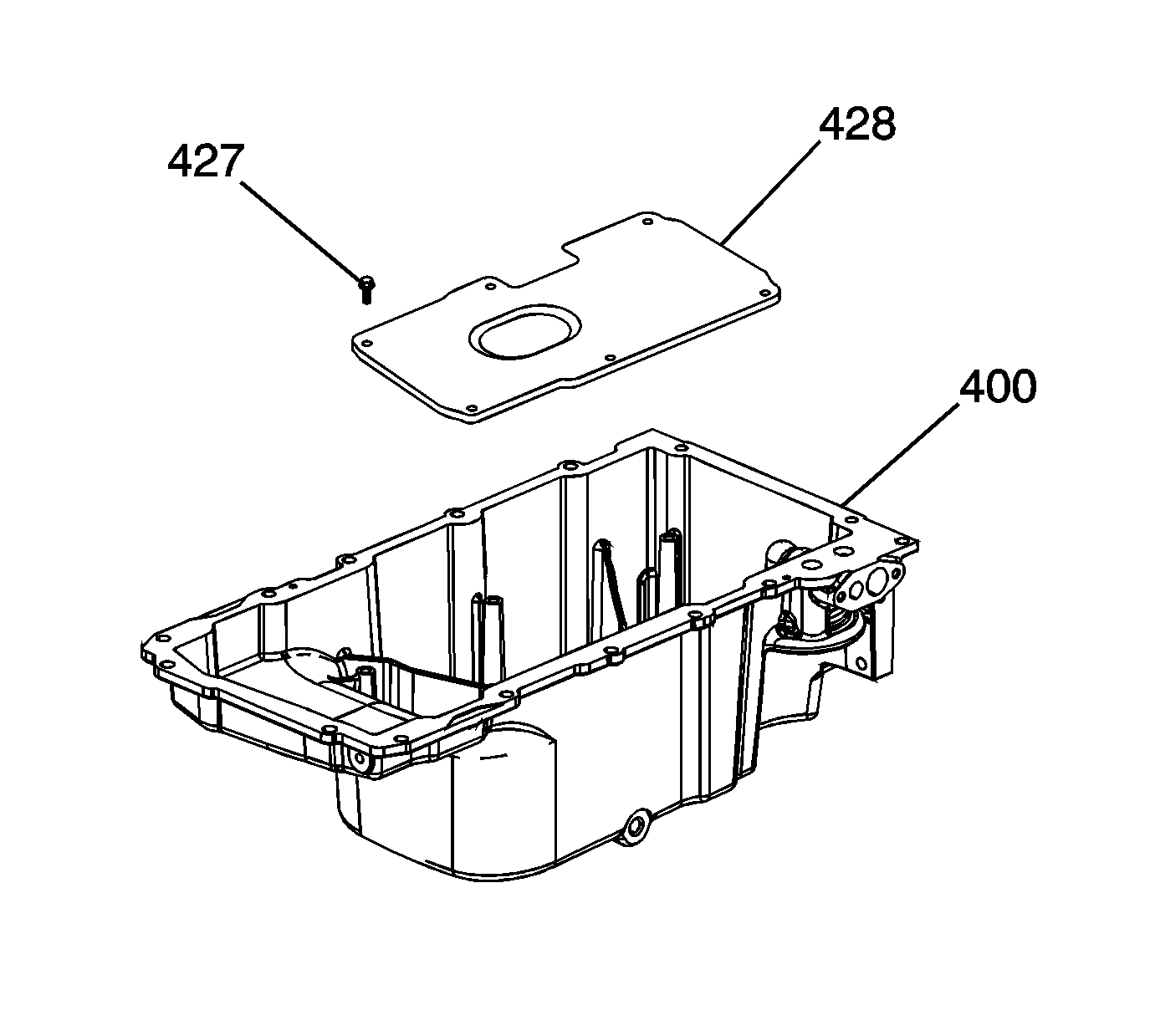

    5. Fig 5: Bolts And Baffle
    GM1565289Courtesy of GENERAL MOTORS COMPANY
  5. Remove the bolts (427) and baffle (428).
  6. Clean the oil pan in solvent.
    7. WARNING:

    Refer to Safety Glasses and Compressed Air Warning .

  7. Dry the oil pan with compressed air.

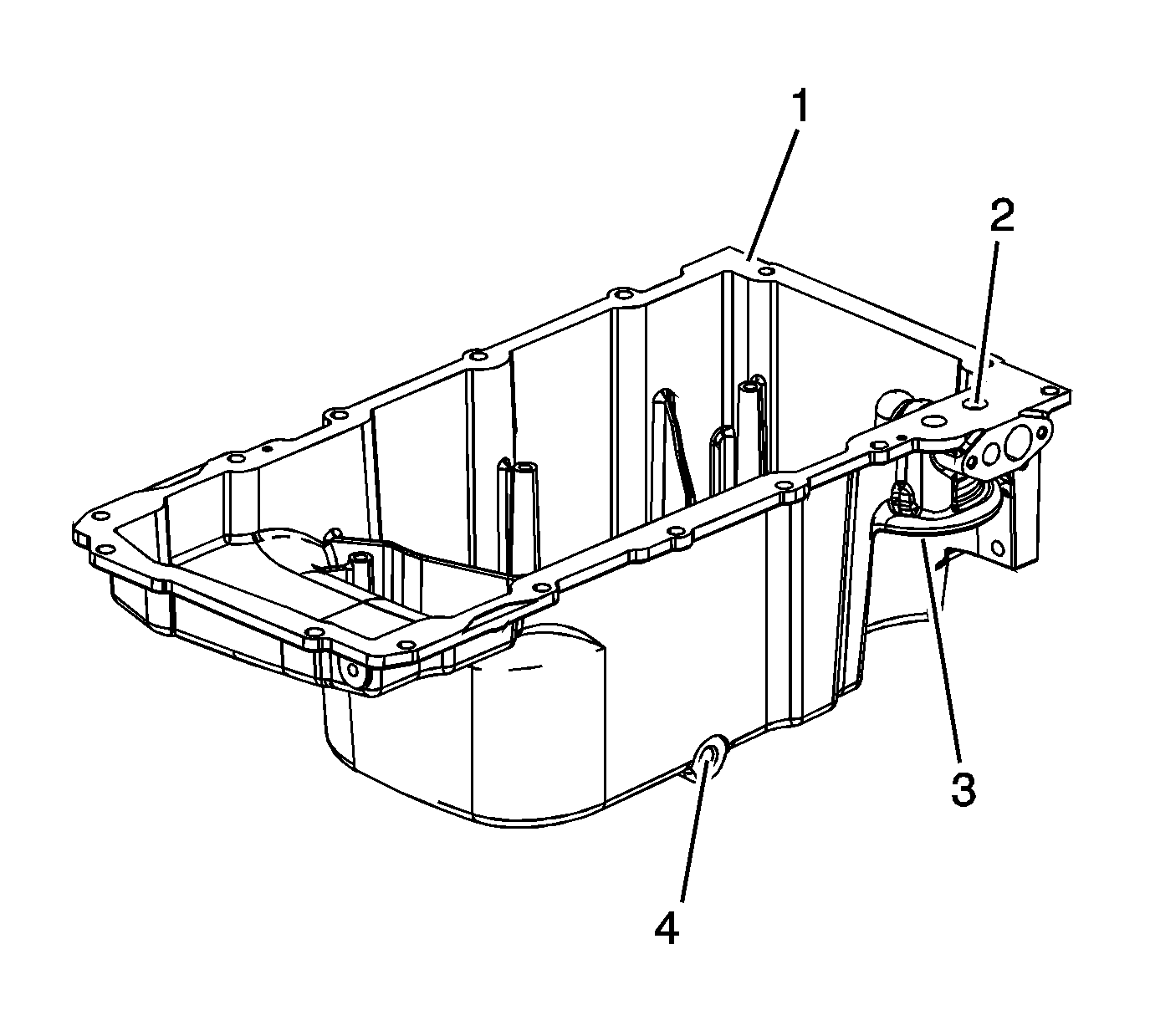

    8. Fig 6: Oil Pan Components
    GM1565292Courtesy of GENERAL MOTORS COMPANY
  8. Inspect the oil pan for the following conditions:
    • Damaged gasket surfaces (1)
    • Restrictions within the oil passages (2) of the pan
    • Damaged oil filter seal surface (3)
    • Threaded bolt holes (4) for damage
    9. Fig 7: Bolts And Baffle
    GM1565289Courtesy of GENERAL MOTORS COMPANY
  9. Install the baffle (428) and baffle bolts (427).
    10. CAUTION:

    Refer to Fastener Caution .

  10. Tighten the baffle bolts (427) to 10 N.m (89 lb in).
    11. Fig 8: Oil Level Sensor And O-Ring
    GM1593666Courtesy of GENERAL MOTORS COMPANY
  11. Install the oil level sensor O-ring seal.
  12. Install the oil level sensor and tighten to 20 N.m (15 lb ft).
    13. Fig 9: Oil Pressure Relief Valve & Washer
    GM1593663Courtesy of GENERAL MOTORS COMPANY
  13. Install the active fuel management oil pressure relief valve (455) and washer (458).
  14. Tighten the active fuel management oil pressure relief valve (455) to 27 N.m (20 lb ft).
    15. Fig 10: Oil Filter Fitting
    GM1565281Courtesy of GENERAL MOTORS COMPANY
  15. Install the oil filter fitting (438) as required.
  16. Tighten the oil filter fitting to 55 N.m (40 lb ft).
