Oil Level Indicator and Tube Removal (LSA)

WARNING: This page is about a different variant/trim than selected.

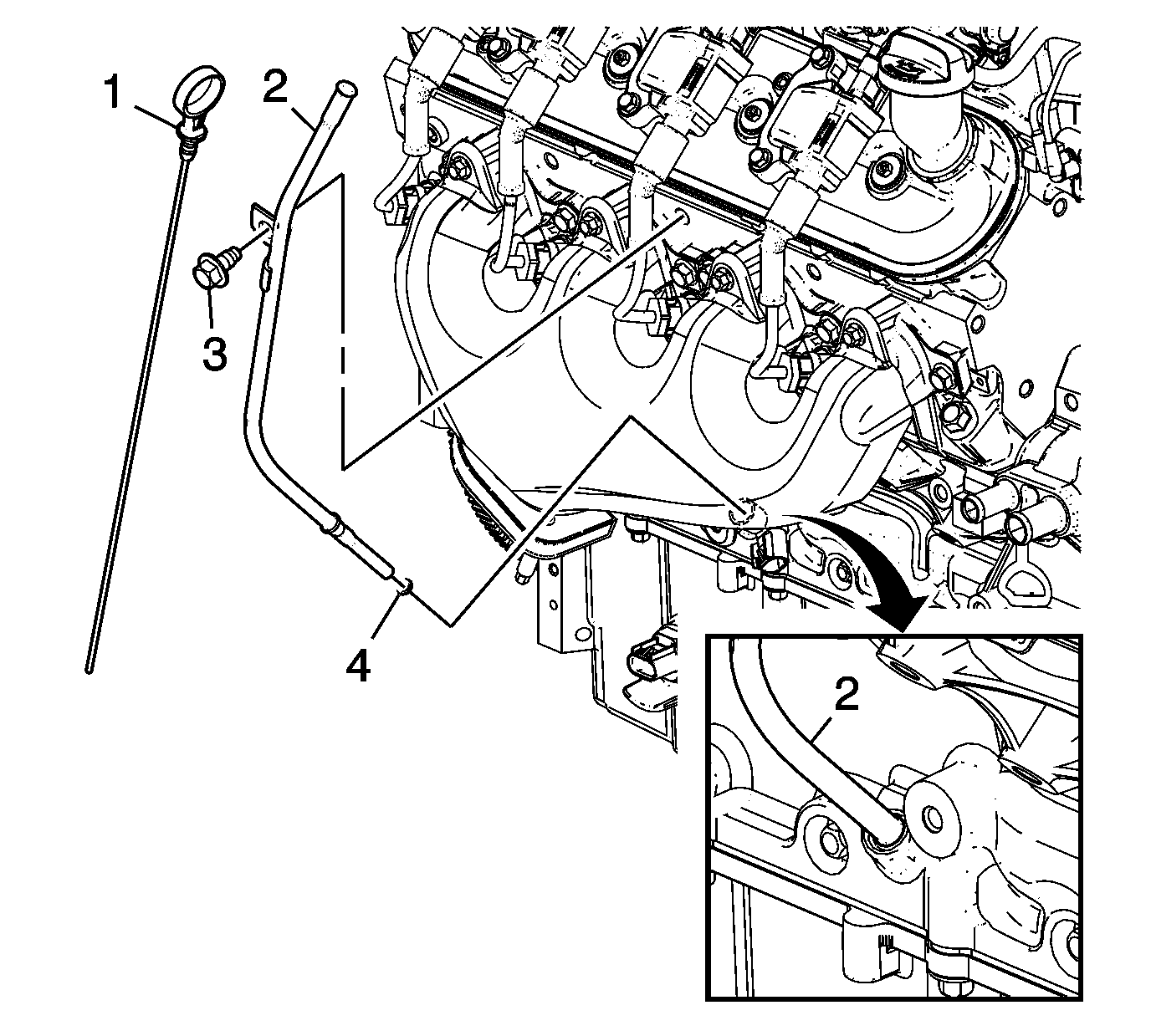

    Fig 1: Identifying Oil Level Indicator Components
    GM2156315Courtesy of GENERAL MOTORS COMPANY
  1. Remove the oil level indicator (1) from the tube (2).
  2. Remove the oil level indicator tube bolt (3).
  3. Remove the oil level indicator tube (2) from the engine block.
    4. NOTE:

    Inspect the O-ring for cuts or damage. The O-ring may be used again if it is not cut or damaged.

  4. Remove the O-ring (4) from the tube, as required.
