Fuel Rail and Injectors Removal (LSA)

WARNING: This page is about a different variant/trim than selected.

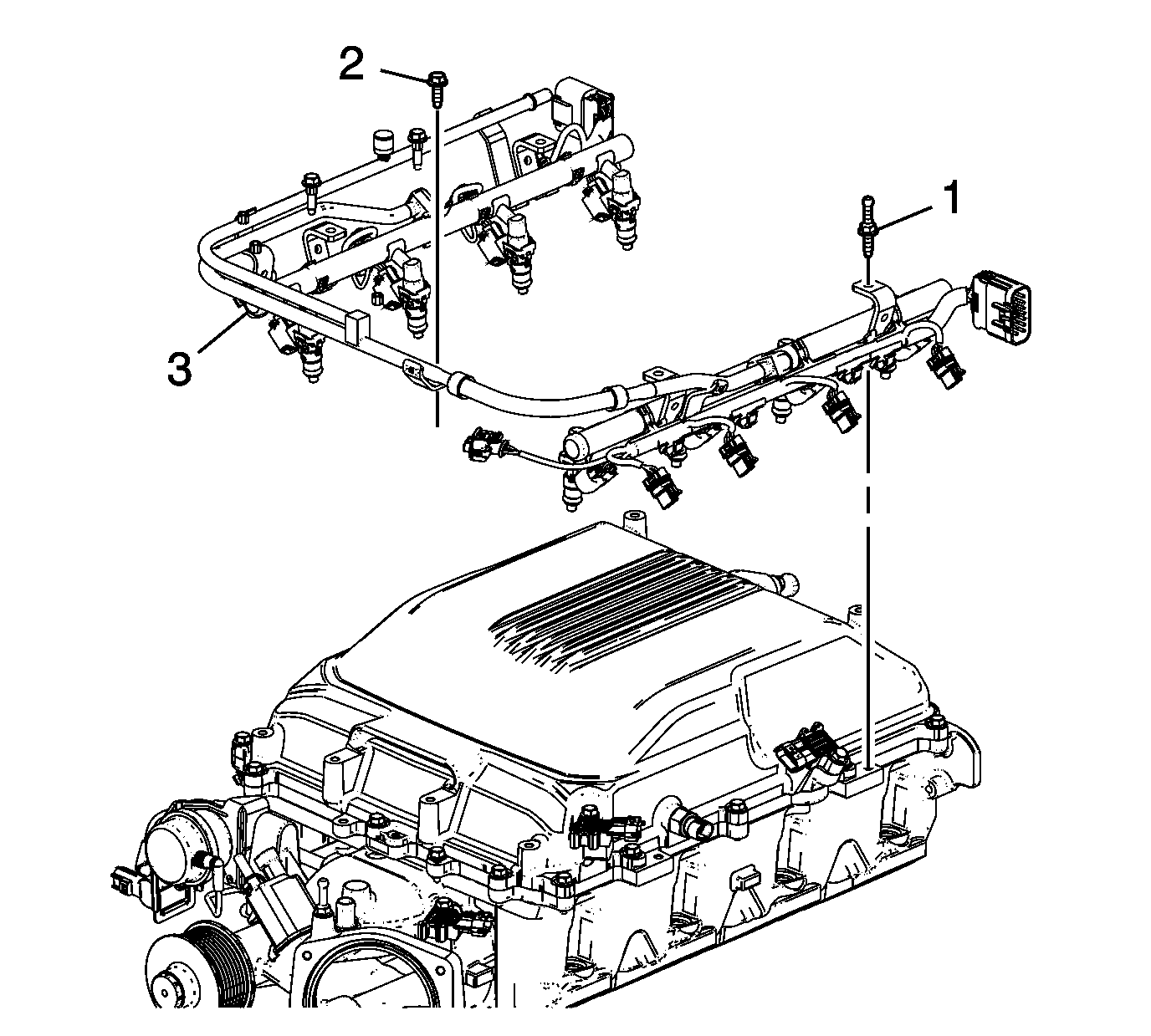

    Fig 1: Identifying Fuel Rail Components
    GM2173554Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The supercharger, throttle body, fuel injection rail and fuel injectors may be removed as an assembly. If not servicing the individual components, remove the supercharger as an assembly.
    • Do not separate the fuel injectors from the fuel rail, unless component service is required.
    • Use cleanliness and care when handling the fuel system components. Do not allow dirt or debris to enter the fuel injectors or fuel rail components. Cap ends as necessary.
  1. Remove the studs (1), bolt (2) and fuel rail (3). Remove the left side of the fuel rail with flex-hose first, then remove the right side of the fuel rail until all injectors have left their bores.

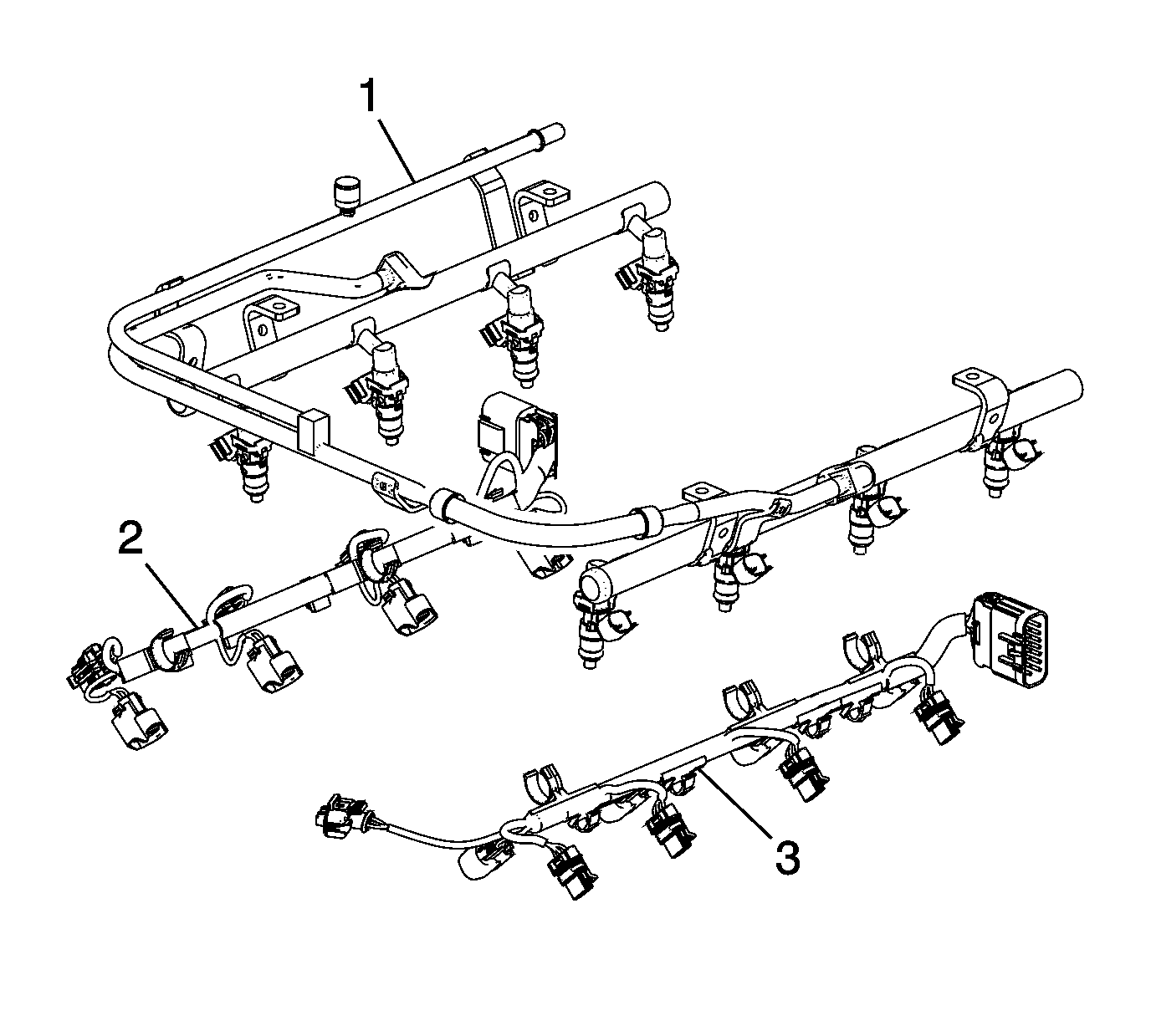

    2. Fig 2: Identifying Fuel Rail & Wiring Harnesses
    GM2156724Courtesy of GENERAL MOTORS COMPANY
  2. Remove the wiring harnesses (2) and (3) from the fuel rail (1).

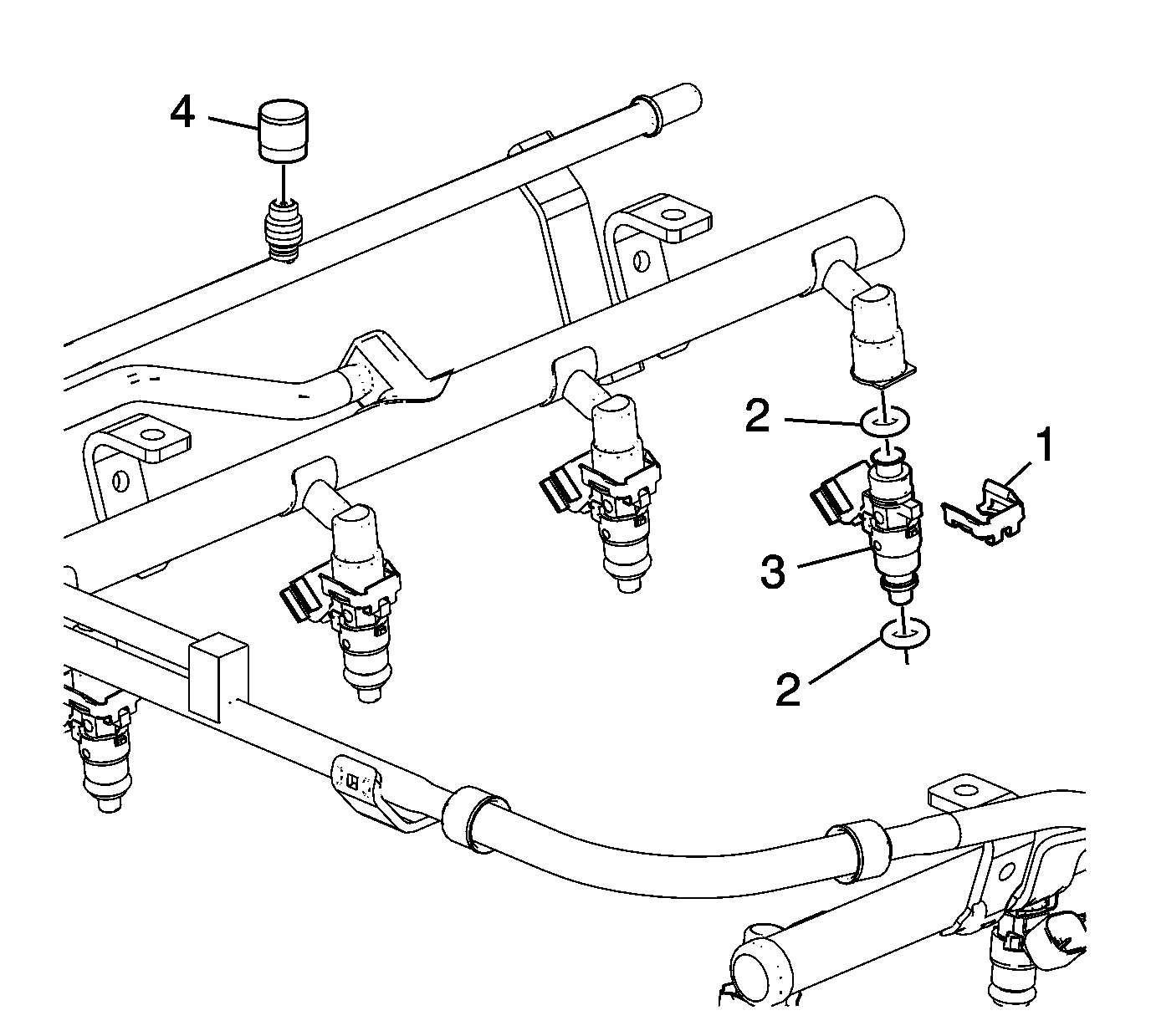

    3. Fig 3: Identifying Fuel Injector Components
    GM2156729Courtesy of GENERAL MOTORS COMPANY
  3. Remove the retainers (1) and fuel injectors (3).
  4. Remove the O-rings (2), as required.
  5. Remove the service port cap (4), as required.
