Exhaust Manifold Removal - Right Side (LSA)

WARNING: This page is about a different variant/trim than selected.

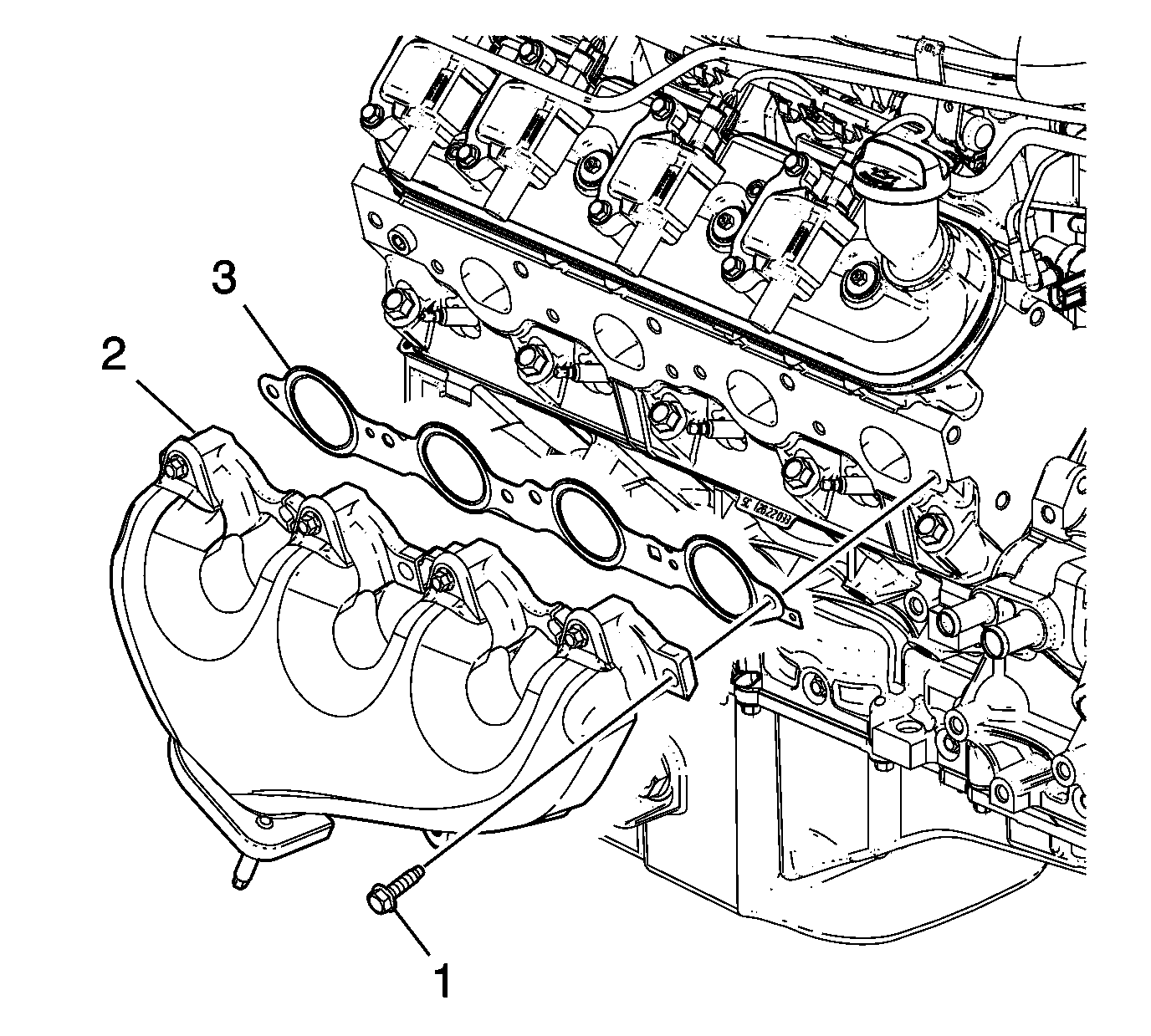

    Fig 1: Identifying Exhaust Manifold, Bolts & Gasket (Right Side)
    GM2156977Courtesy of GENERAL MOTORS COMPANY
  1. Remove the spark plug wires from the spark plugs.
  2. Remove the exhaust manifold (2), bolts (1), and gasket (3).
  3. Discard the gasket.

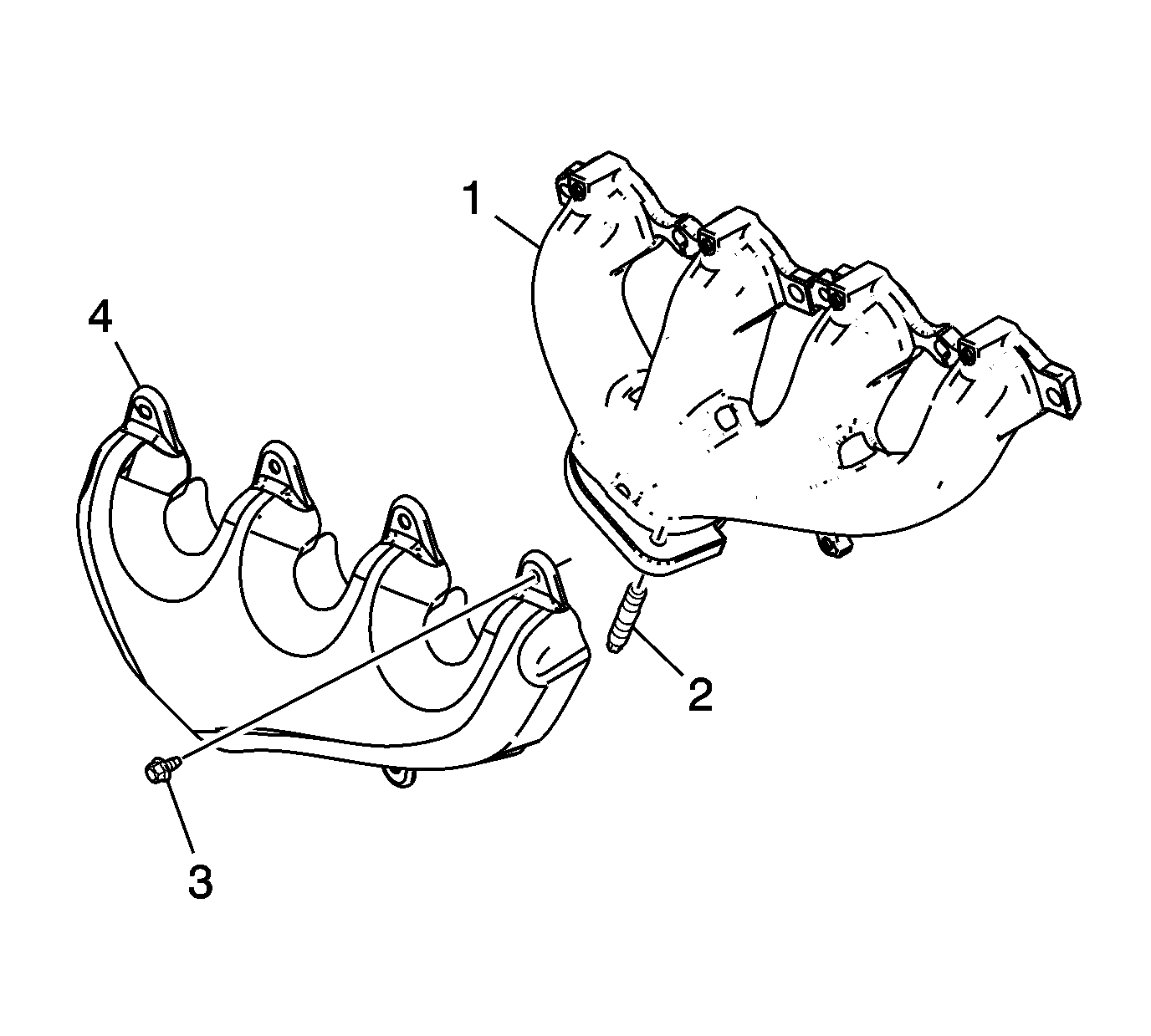

    4. Fig 2: Identifying Manifold Components (Right Side)
    GM2156341Courtesy of GENERAL MOTORS COMPANY
  4. Remove the heat shield (4) and bolts (3) from the manifold (1), as required.
  5. Remove the studs (2), as required.
