Exhaust Manifold Removal - Right Side (LS3 or L99)

WARNING: This page is about a different variant/trim than selected.

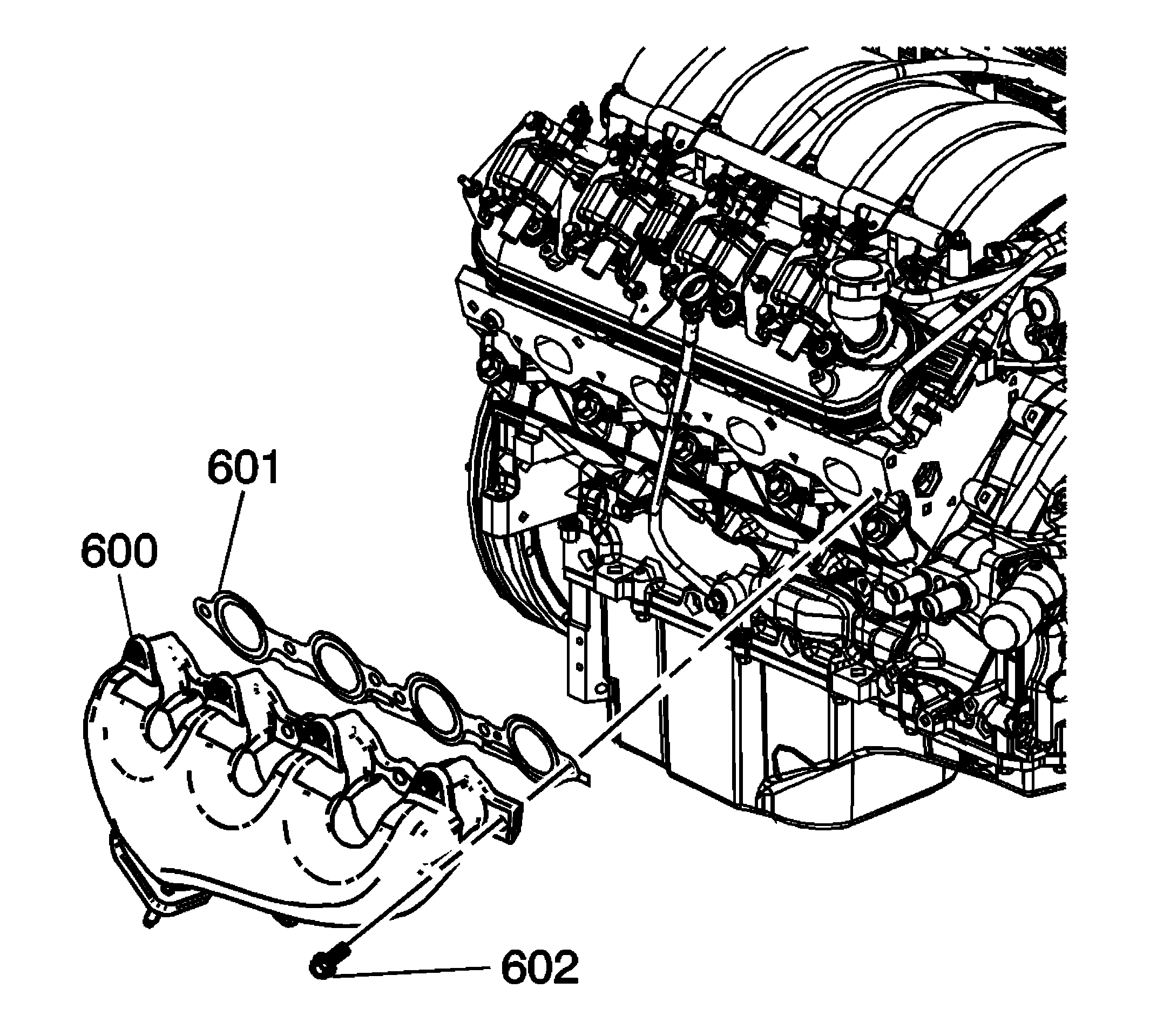

    Fig 1: Exhaust Manifold, Bolts And Gasket
    GM1565271Courtesy of GENERAL MOTORS COMPANY
  1. Remove the spark plug wires from the spark plugs.
  2. Remove the exhaust manifold (600), bolts (602), and gasket (601).
  3. Discard the gasket.
    4. Fig 2: View Of Heat Shield & Retaining Bolts
    GM1199294Courtesy of GENERAL MOTORS COMPANY
  4. Remove the heat shield (603) and bolts (604) from the manifold (600), as required.
