Exhaust Manifold Removal - Left Side (LS7)
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

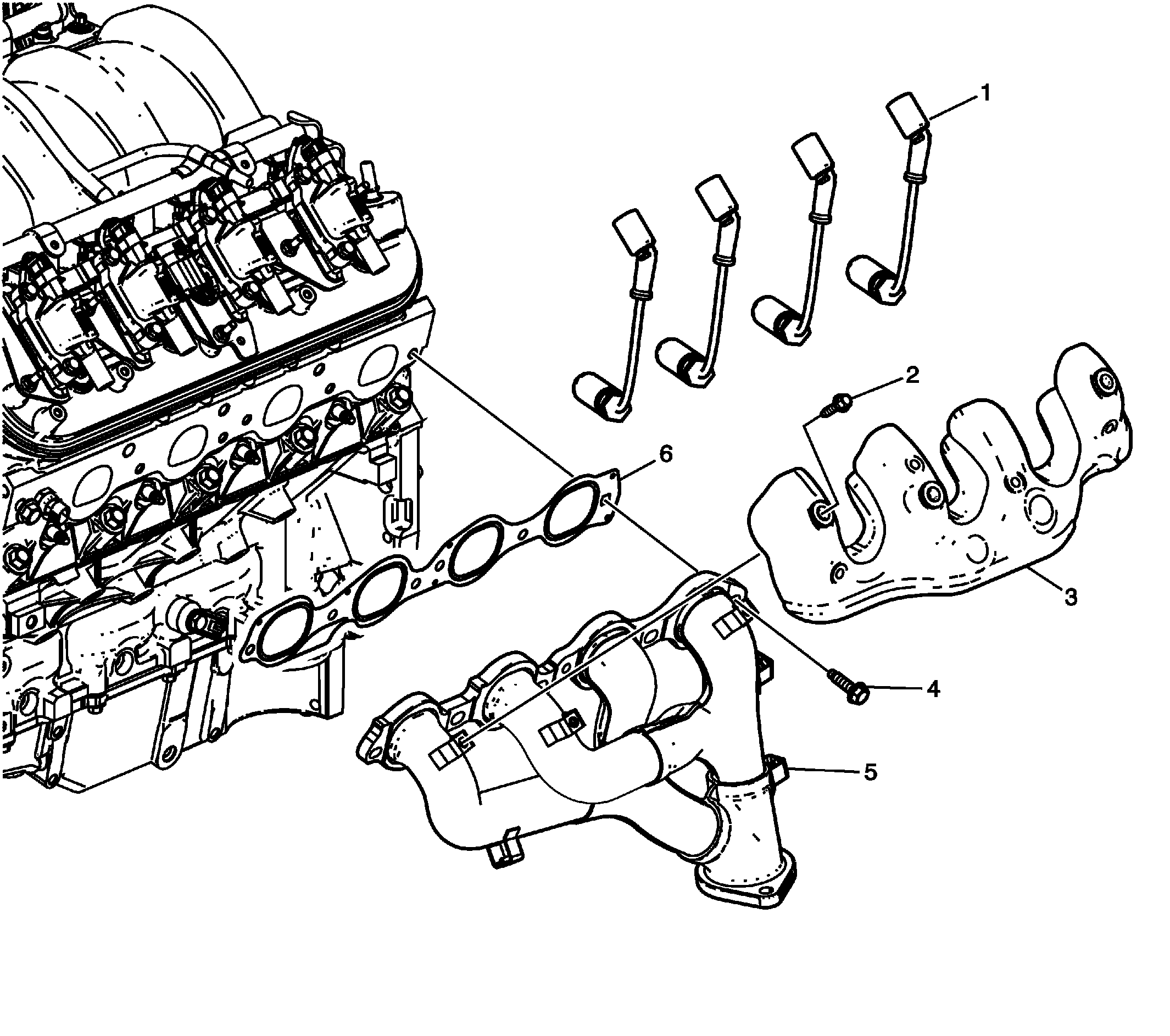

| Callout |
Component Name |
| 1 |
Spark Plug Wire |
| 2 |
Heat Shield Bolt (Qty: 3) |
| 3 |
Heat Shield |
| 4 |
Exhaust Manifold Bolt (Qty: 6) |
| 5 |
Exhaust Manifold |
| 6 |
Exhaust Manifold Gasket
NOTE:
Discard gasket, it is not reusable.
|
