Exhaust Manifold Removal - Left Side (LS3 or L99)

WARNING: This page is about a different variant/trim than selected.

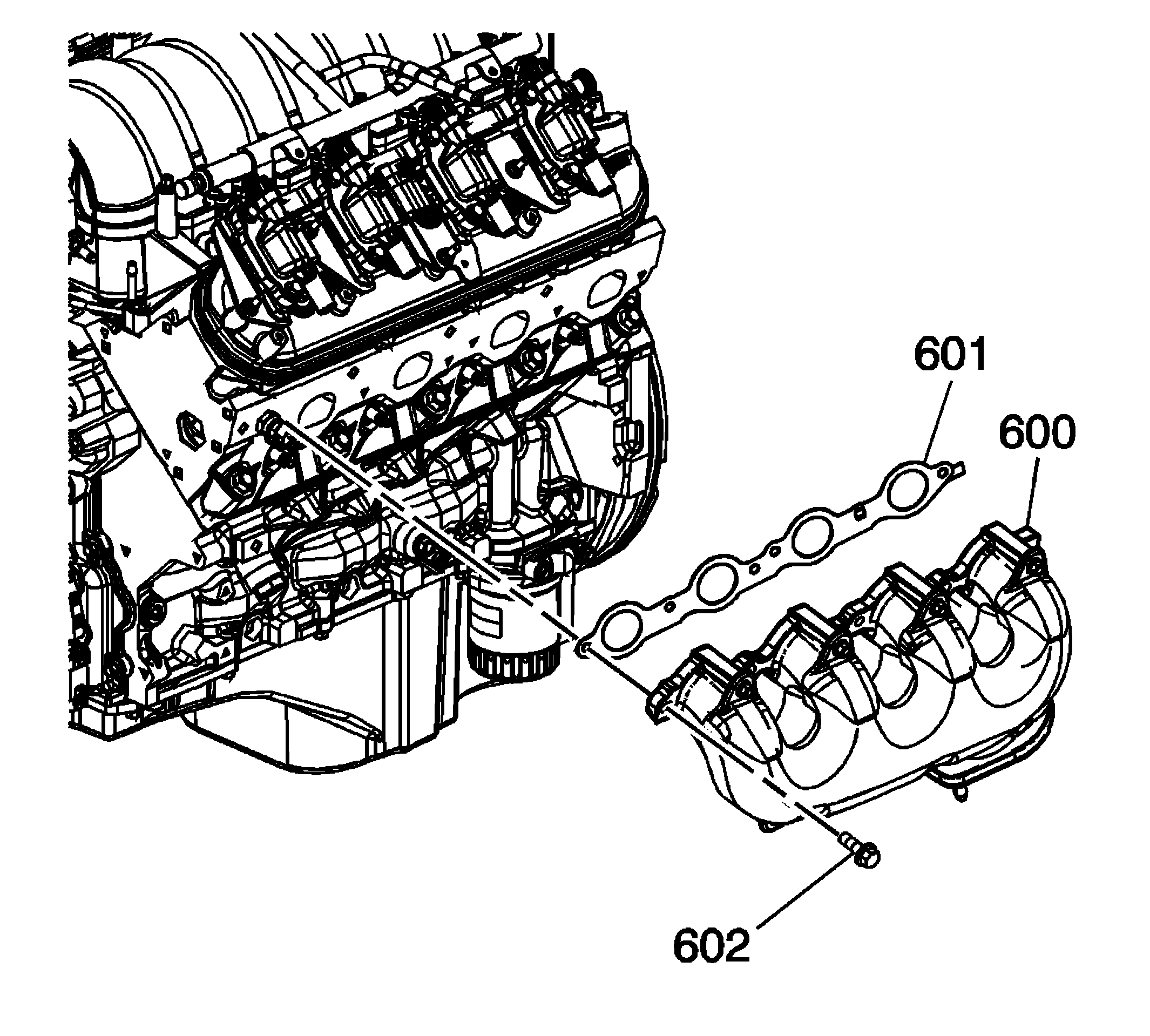

    Fig 1: Left Exhaust Manifold, Gasket And Bolts
    GM1559844Courtesy of GENERAL MOTORS COMPANY
  1. Remove the spark plug wires from the spark plugs.
  2. Remove the exhaust manifold (600), bolts (602), and gasket (601).
  3. Discard the gasket.
    4. Fig 2: View Of Exhaust Manifold, Heat Shield & Mounting Bolts
    GM1199292Courtesy of GENERAL MOTORS COMPANY
  4. Remove the heat shield (603) and bolts (604) from the manifold (600), as required.
