Exhaust Manifold Cleaning and Inspection (LS7)

WARNING: This page is about a different variant/trim than selected.

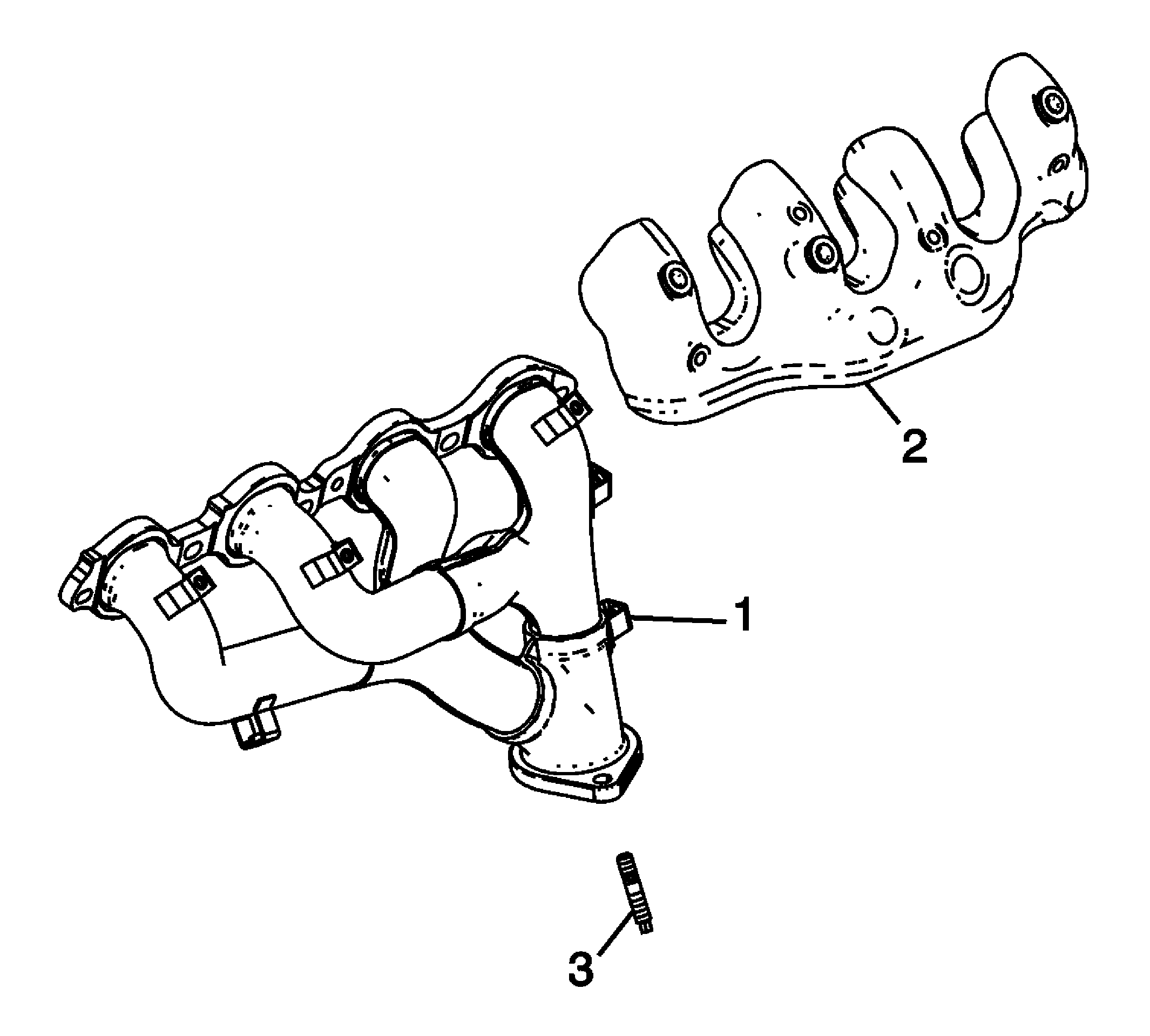

Fig 1: Exhaust Manifold Cleaning and Inspection (LS7)

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Do not use the exhaust manifold-to-cylinder head gaskets again. Upon installation of the exhaust manifold, install a NEW gasket. An improperly installed gasket or leaking exhaust system may effect on-board diagnostics (OBD) II system performance.

Clean the exhaust manifold (1) and heat shield (2) in solvent.

WARNING:

Refer to Safety Glasses Warning .

Dry the exhaust manifold with compressed air.
Inspect the exhaust manifold-to-cylinder head gasket surface for excessive scratches or gouging.
Inspect for a loose, damaged, or cracked heat shield (2).
Inspect the exhaust pipe studs (3) for damaged threads.

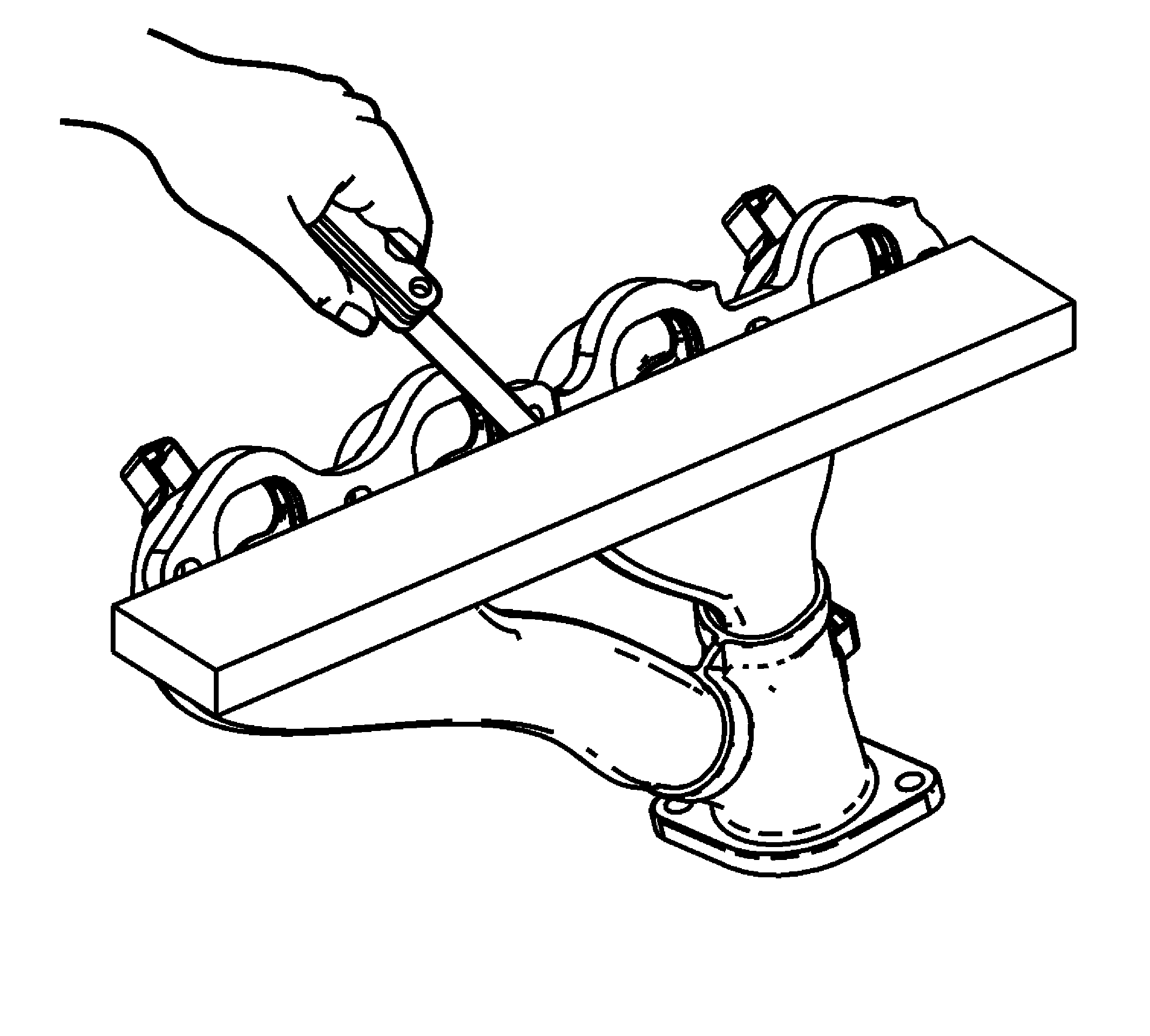

Fig 2: Measure The Exhaust Manifold Cylinder Head Deck

Courtesy of GENERAL MOTORS COMPANY

Use a straight edge and a feeler gauge to measure the exhaust manifold cylinder head deck for warpage.
An exhaust manifold deck with warpage in excess of 0.25 mm (0.01 in) within the 2 front or 2 rear runners or 0.5 mm (0.02 in) overall, may cause an exhaust leak and may effect OBD II system performance. Exhaust manifolds not within specifications must be replaced.
