Engine Prelubing

Special Tools

J 45299  Engine Preluber

For equivalent regional tools, refer to Special Tools

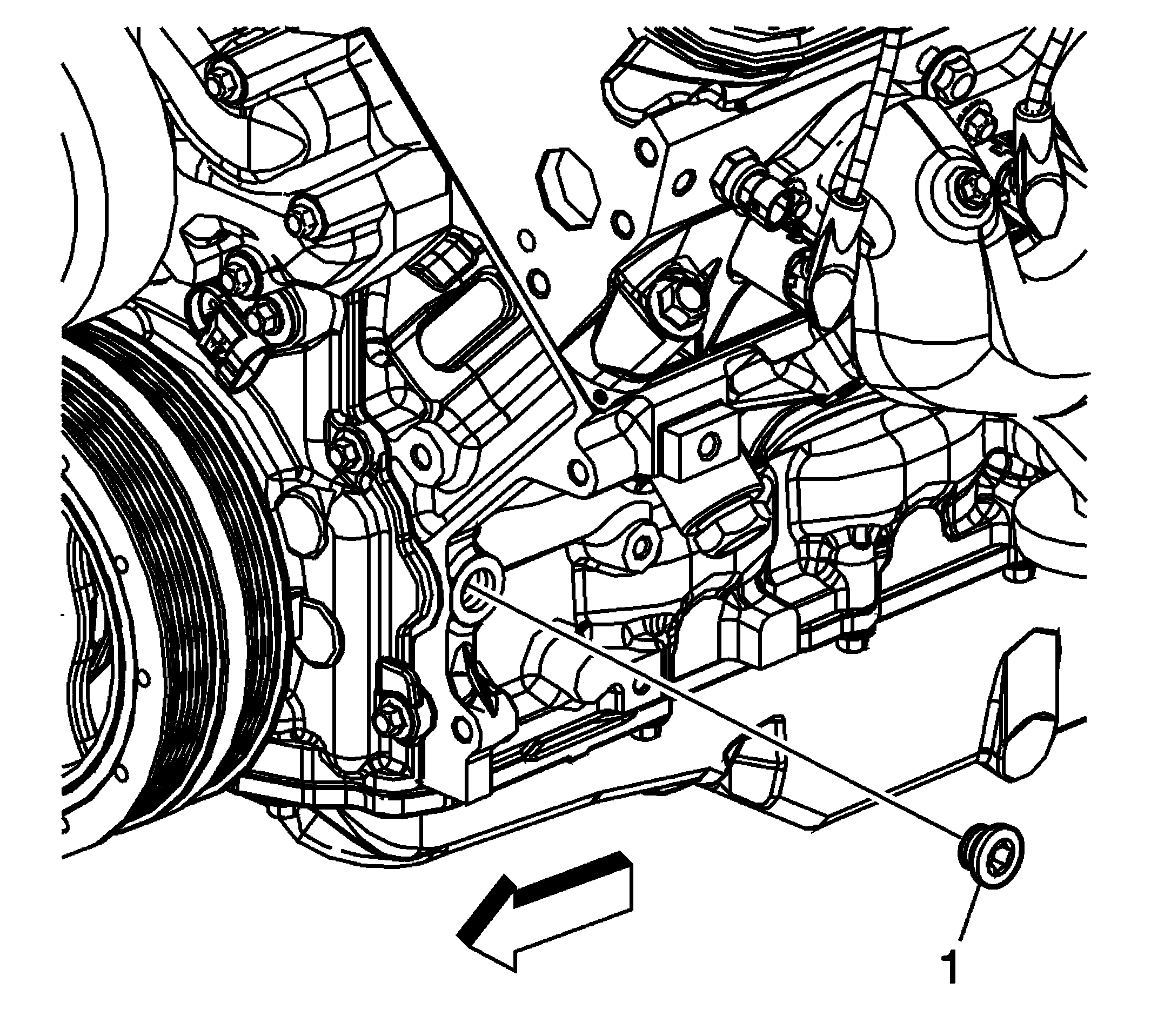

Fig 1: Engine Block Left Front Oil Gallery Plug
Courtesy of GENERAL MOTORS COMPANY
NOTE:

A constant and continuous flow of clean engine oil is required in order to properly prime the engine. Be sure to use an approved engine oil, as specified in the owners manual.

1. Remove the engine oil filter, and fill with clean engine oil.
CAUTION:

Refer to Fastener Caution

2. Install the oil filter and tighten to 30 N.m (22 lb ft).
3. Locate the engine block left front oil gallery plug (1).
4. Install the M16 x 1.5 adapter P/N 509375.
Fig 2: Preluber Flexible Hose
Courtesy of GENERAL MOTORS COMPANY
5. Install the flexible hose to the adapter and open the valve.
6. Pump the handle on the J 45299  preluber in order to flow a minimum of 1-1.9 liters (1-2 quarts) engine oil. Observe the flow of engine oil through the flexible hose and into the engine assembly.
7. Close the valve and remove the flexible hose and adapter from the engine.
8. Install the oil gallery plug to the engine and tighten to 60 N.m (44 lb ft).
9. Top-off the engine oil to the proper level.
