Engine Front Cover Removal (LS7)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of CMP Wiring Harness
    GM1669841Courtesy of GENERAL MOTORS COMPANY
  1. Remove the camshaft position (CMP) sensor wire harness (737).
    2. Fig 2: View Of Front Engine Cover, Gasket & Bolts
    GM1552543Courtesy of GENERAL MOTORS COMPANY
  2. Remove the front cover bolts (501).
  3. Remove the front cover (502) and gasket (503).

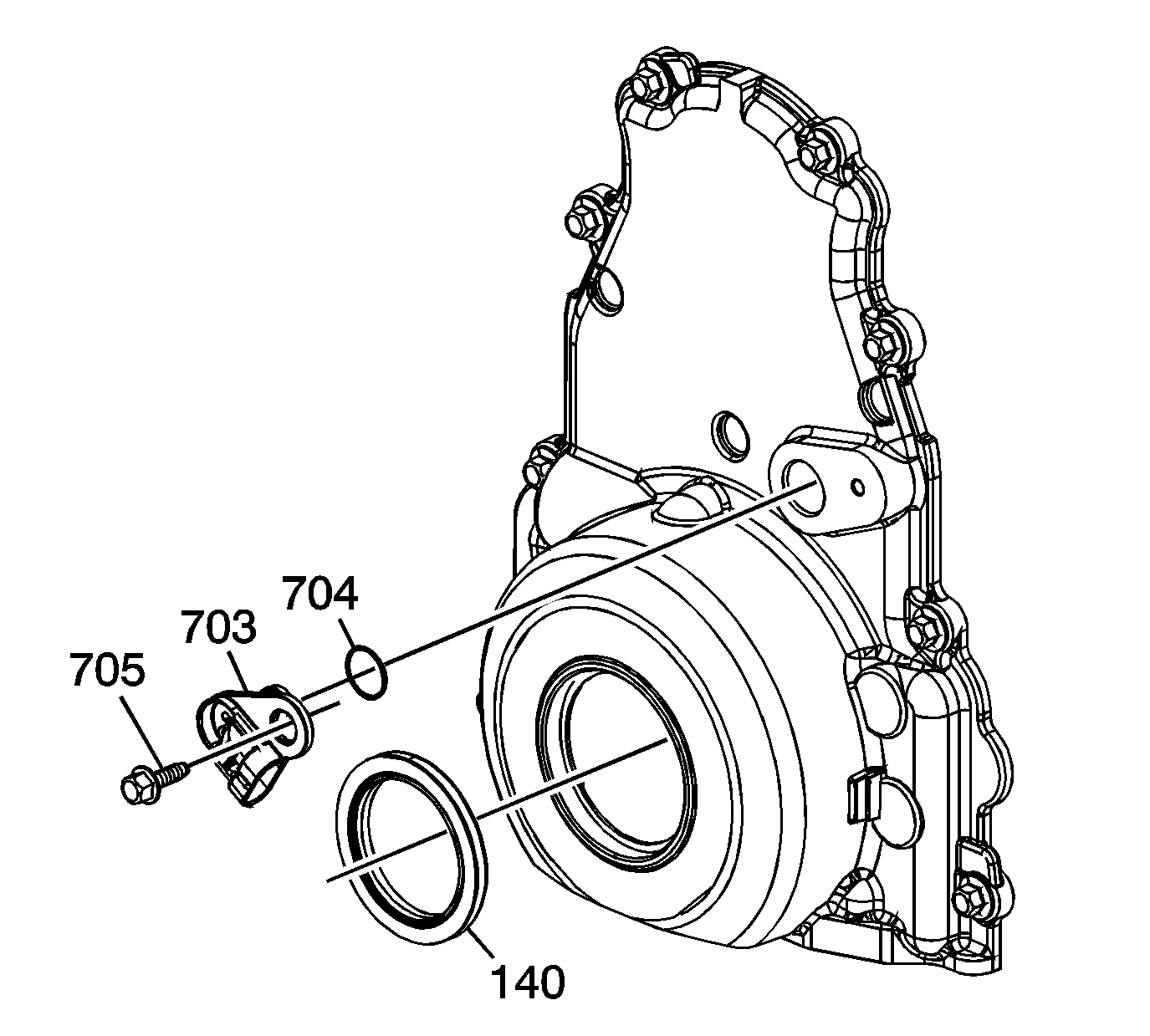

    4. Fig 3: Removing The Oil Seal
    GM1552506Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil seal (140).
  5. Remove the bolt (705) and CMP sensor (703).
  6. Remove the seal (704) from the sensor, as required.
