Engine Flywheel Cleaning and Inspection (LSA)
WARNING: This page is about a different variant/trim than selected.
NOTE:
In order to maintain the proper component balance, contact surface taper, and heat transfer, manual transmission flywheels are NOT to be machined.

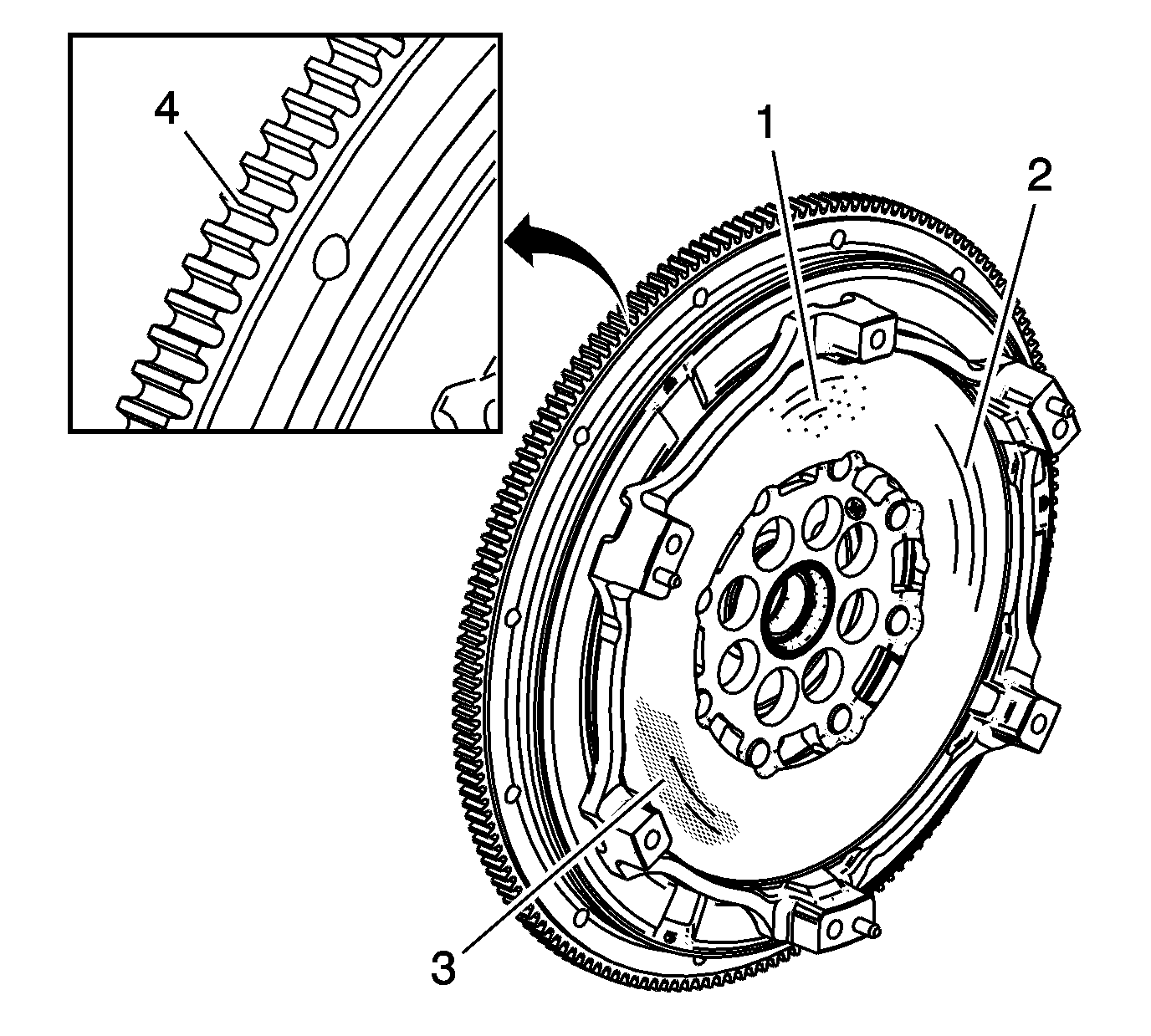

Inspect the dual-mass manual transmission flywheel for the following conditions:
- Pitted surface (1)
- Grooved or scored surface (2)
- Rusted surface (3)
- Damaged ring gear teeth (4)
- Loose or improperly positioned ring gear
The ring gear has an interference fit onto the flywheel and should be positioned completely against the flange of the flywheel.
- Missing, bent or damaged pressure plate locating pins
- The flywheel friction disc contact surface is tapered for improved disc contact. If using a straight edge to determine surface wear, the technician may note less material or a taper to the inner or ID area. This condition is considered normal and not a determining factor when replacing the flywheel.
