Engine Coolant Air Bleed Pipe and Hole Cover Removal (LSA)

WARNING: This page is about a different variant/trim than selected.

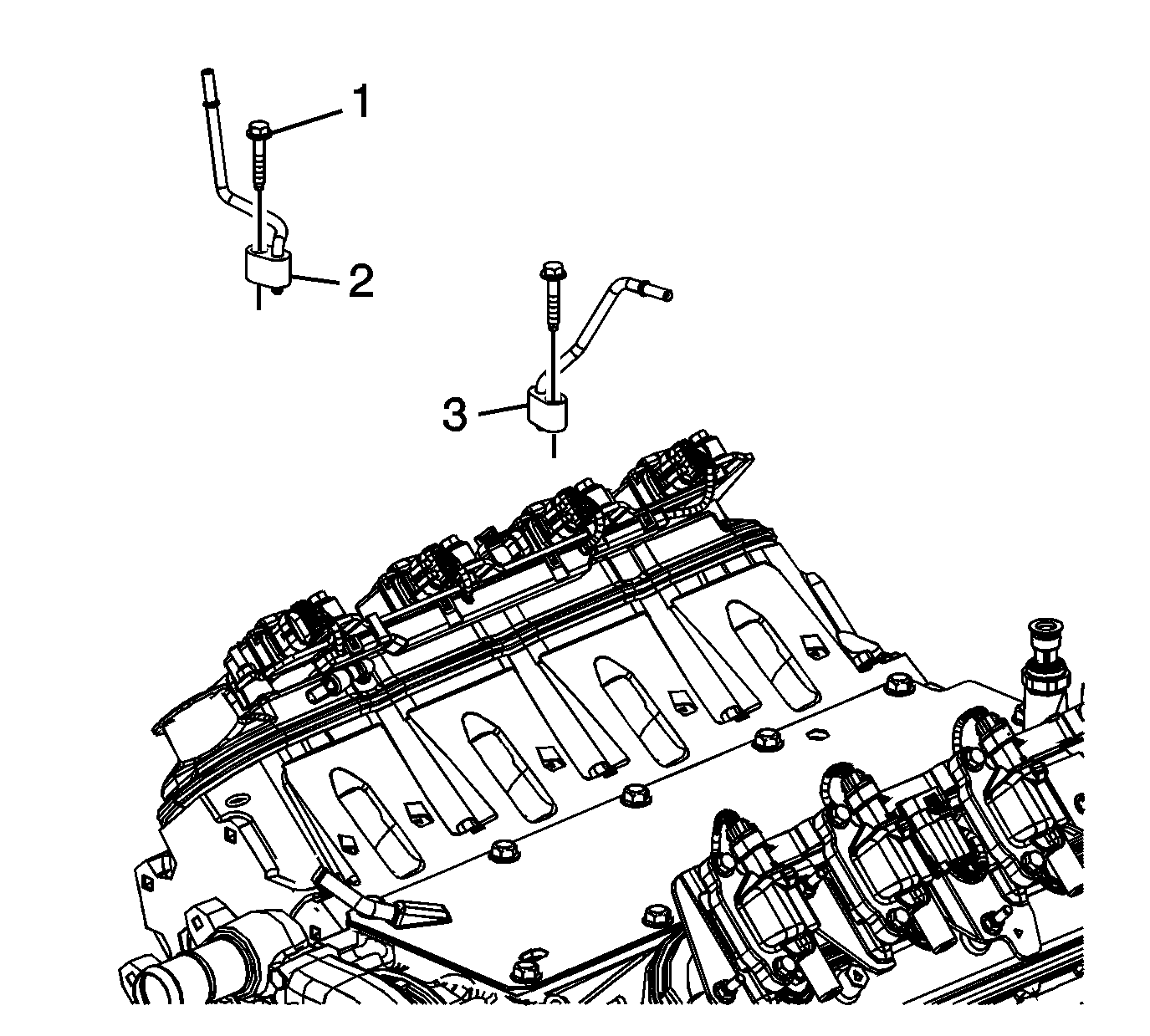

    Fig 1: Identifying Engine Coolant Air Bleed Pipe Components
    GM2054151Courtesy of GENERAL MOTORS COMPANY
  1. Remove the engine coolant air bleed pipe bolts (1).
  2. Remove the pipes (2 and 3).
    3. Fig 2: Identifying Seals
    GM2054156Courtesy of GENERAL MOTORS COMPANY
  3. Remove the seals (1) from the pipes.
  4. Discard the seals.
