Engine Block Valley Cover Removal (LS3, LSA, or LS7)

WARNING: This page is about a different variant/trim than selected.

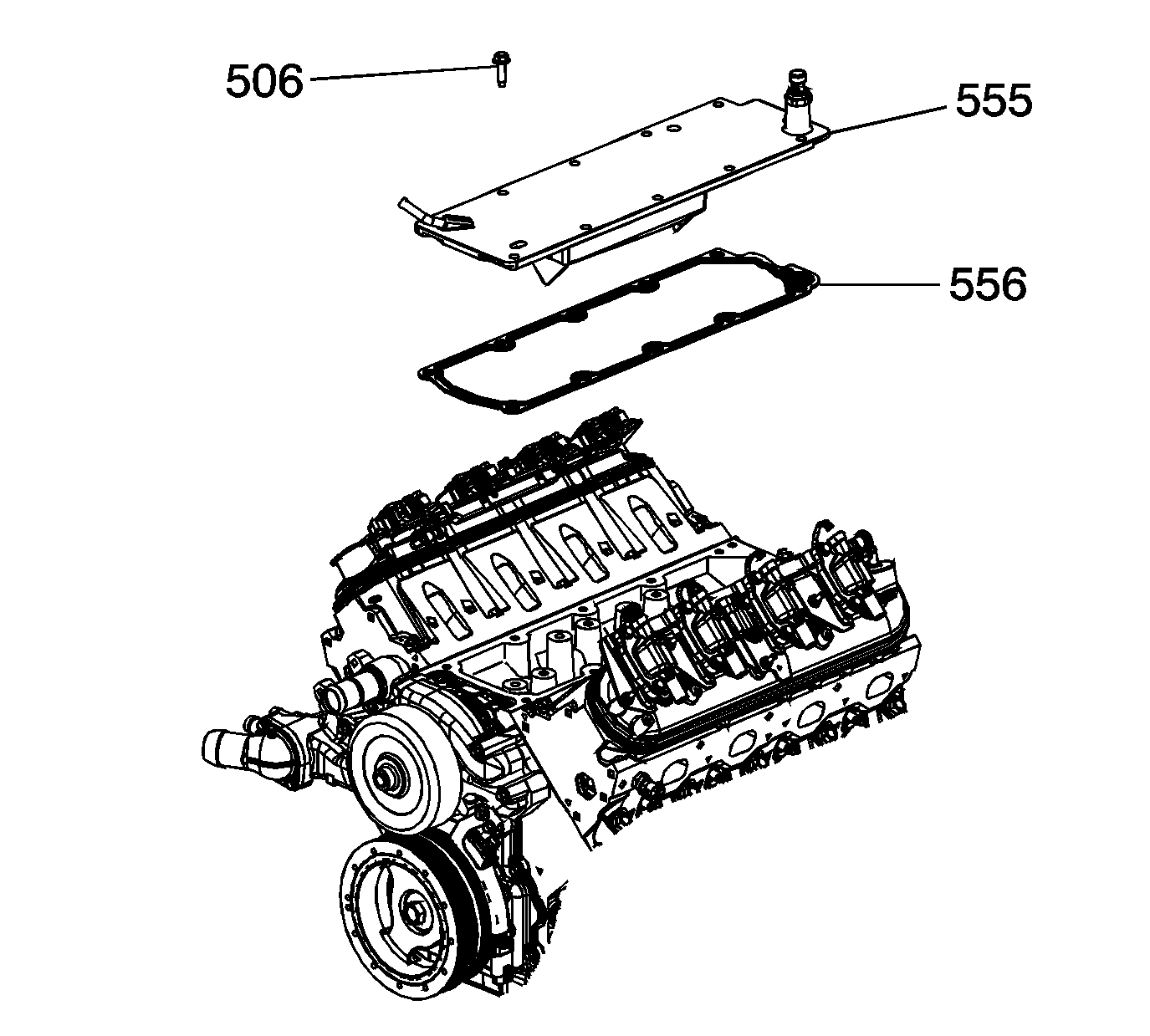

    Fig 1: View Of Engine Valley Cover & Gasket
    GM1559856Courtesy of GENERAL MOTORS COMPANY
  1. Remove the engine block valley cover bolts (506).
  2. Remove the valley cover (555) and gasket (556).
    3. Fig 2: Valley Cover Seals & Gasket
    GM1552536Courtesy of GENERAL MOTORS COMPANY
  3. Remove the seals (537) from the cover.
    4. Fig 3: Oil Pressure Sensor & Washer
    GM1408864Courtesy of GENERAL MOTORS COMPANY
  4. Remove the engine oil pressure sensor (706) and seal (707), as required.
