Automatic Transmission Flex Plate Removal

WARNING: This page is about a different variant/trim than selected.

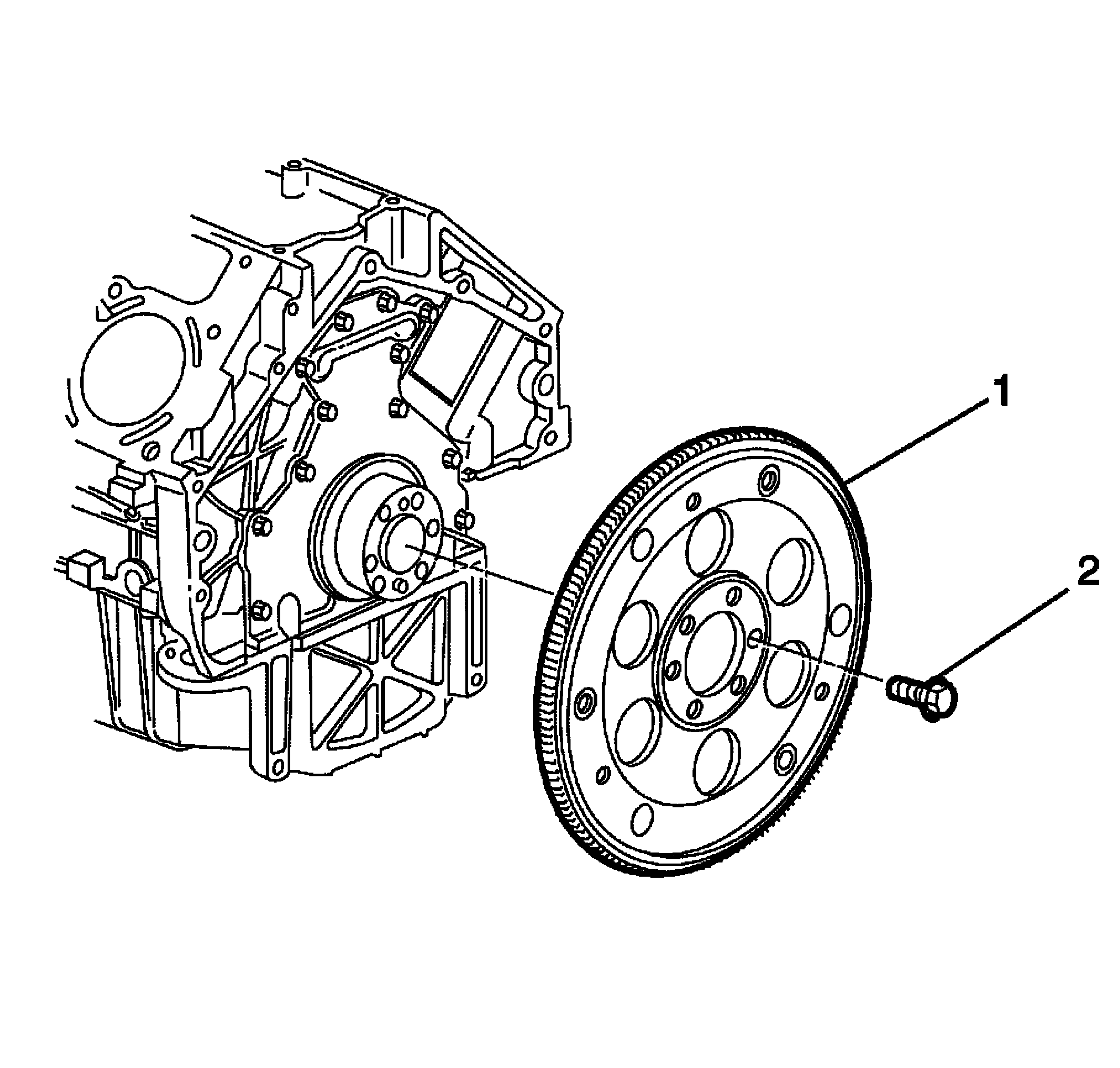

    Fig 1: Identifying Flexplate To Crankshaft Retaining Bolts
    GM1950986Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the position and direction of the flex plate (1) before removal. The flex plate (1) does not use a locating pin for alignment. Mark or scribe the end of the crankshaft and the flex plate (1) before component removal.

  1. Remove the flex plate to crankshaft retaining bolts (2).
  2. Remove the flex plate (1).
