Valve Rocker Arm Cover Replacement - Left Side

WARNING: This page is about a different variant/trim than selected.

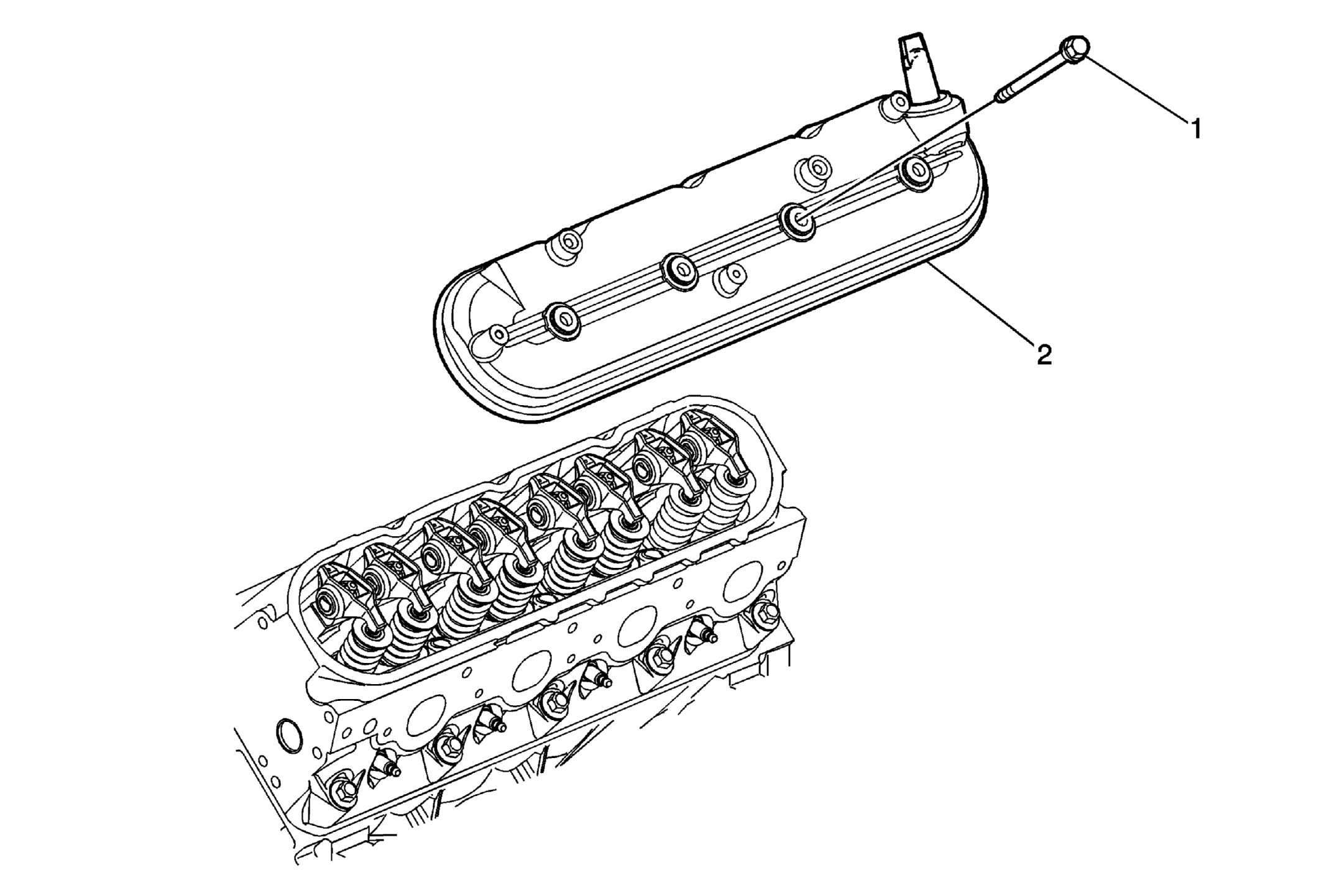

Fig 1: Identifying Valve Rocker Arm Cover - Left Side
GM2160415Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the crankcase ventilation hoses/pipes. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air - L99, LS3, LSA) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air - L99, LS3, LSA) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air - LS7) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air - LS7) .
  2. Remove the ignition coil. Refer to Ignition Coil Replacement (L99, LS3, LS7)Ignition Coil Replacement (LSA)Ignition Coil Replacement (LS7) .
1 Valve Rocker Arm Cover Fastener (Qty: 4)
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
If valve rocker arm cover grommets are cracked, or damaged, replace the valve rocker arm cover bolts. The grommet is serviced with the rocker arm cover bolt.
Tighten
12 N.m (106 lb in)
2 Valve Rocker Arm Cover

Procedure

  1. Disconnect any electrical connectors.
  2. Transfer components as necessary.
