Supercharger Belt Idler Pulley Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

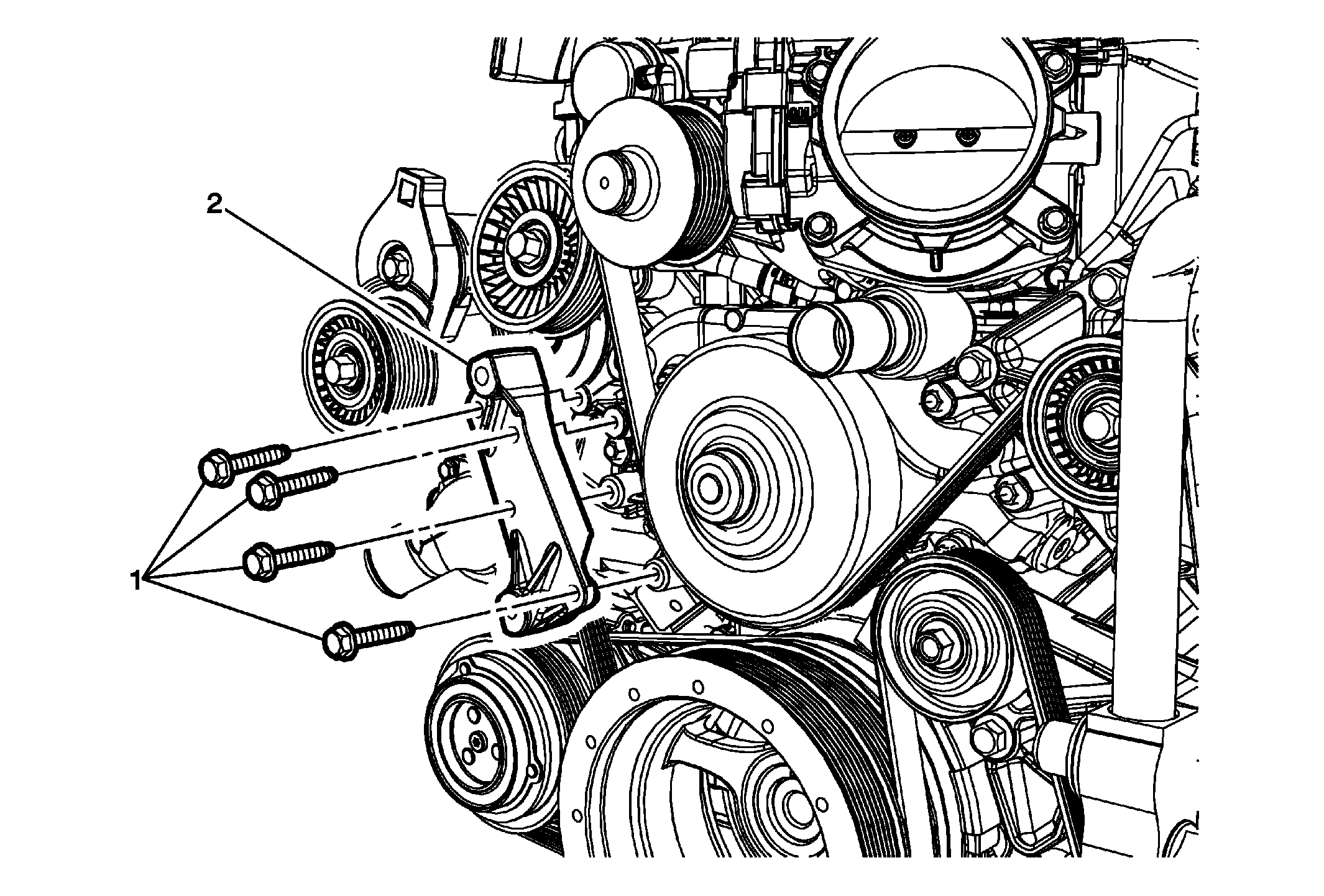

Fig 1: Supercharger Belt Idler Pulley Bracket & Fasteners
GM2718394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the supercharger belt idler pulley. Refer to Supercharger Belt Idler Pulley Replacement .
1 Supercharger Belt Idler Pulley Bracket Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Supercharger Belt Idler Pulley Bracket
