Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement (LSA, LS3, L99) Engine Oil and Oil Filter Replacement (LS7) .
    2. Fig 1: Outlet Hose And Oil Tank Nut
    GM3681356Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Anytime the oil tank inlet and outlet hoses are serviced, the oil seals must be replaced.

  2. Remove the outlet hose to oil tank nut (1) and disconnect the hose (2) from the oil tank. Discard the oil seal (3).

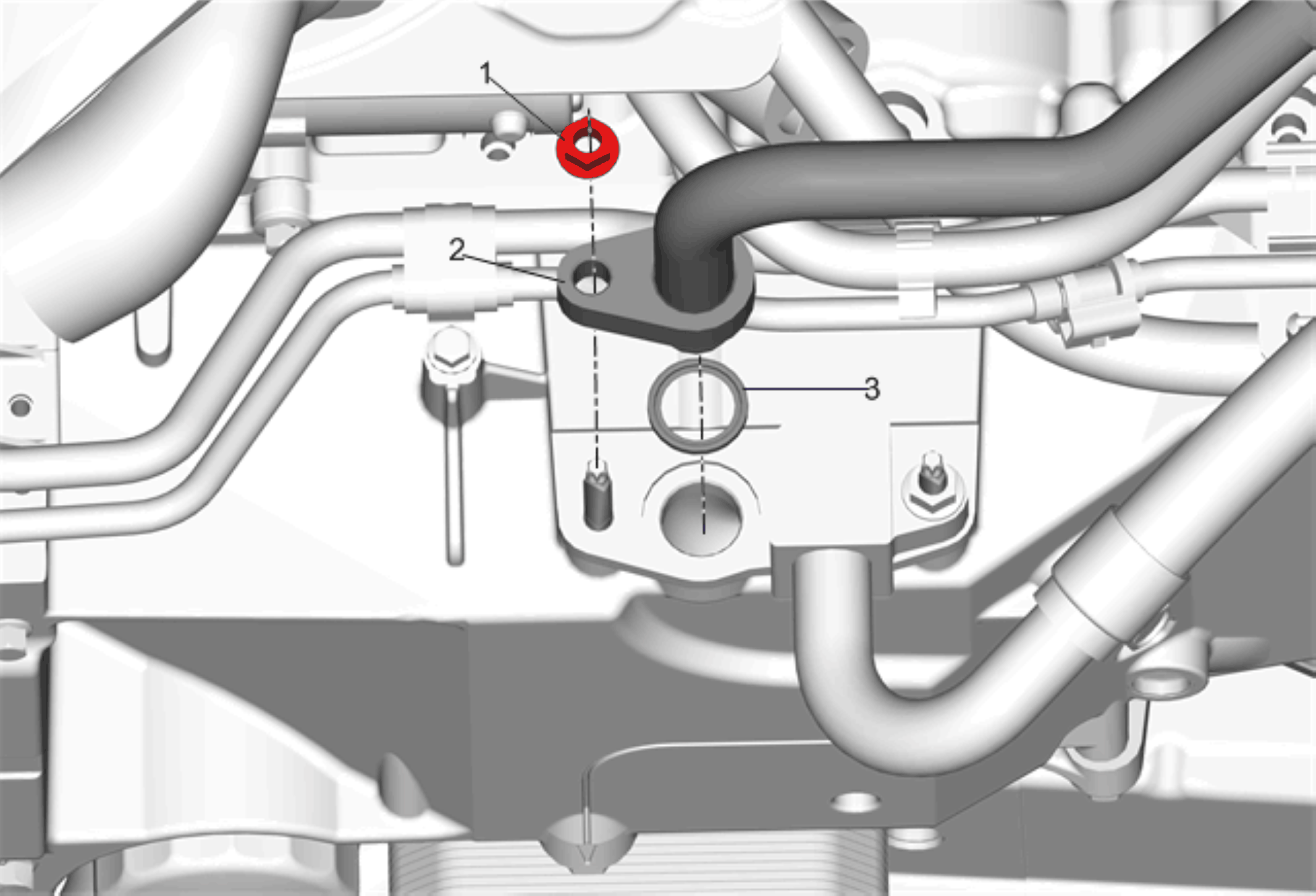

    3. Fig 2: Outlet Hose To Oil Pan
    GM3681580Courtesy of GENERAL MOTORS COMPANY
  3. Remove the outlet hose to oil pan nut (1) and disconnect the hose (2) from the oil pan. Discard the oil seal (3).
  4. Remove the oil outlet hose.
