Installation Procedure

WARNING: This page is about a different variant/trim than selected.
CAUTION:

Refer to Engine Oil Tank Debris Caution .

    NOTE:

    If any malfunction is experienced that may have caused debris to enter the oil supply, NEW oil lines must be used.

  1. Position the oil inlet hose.

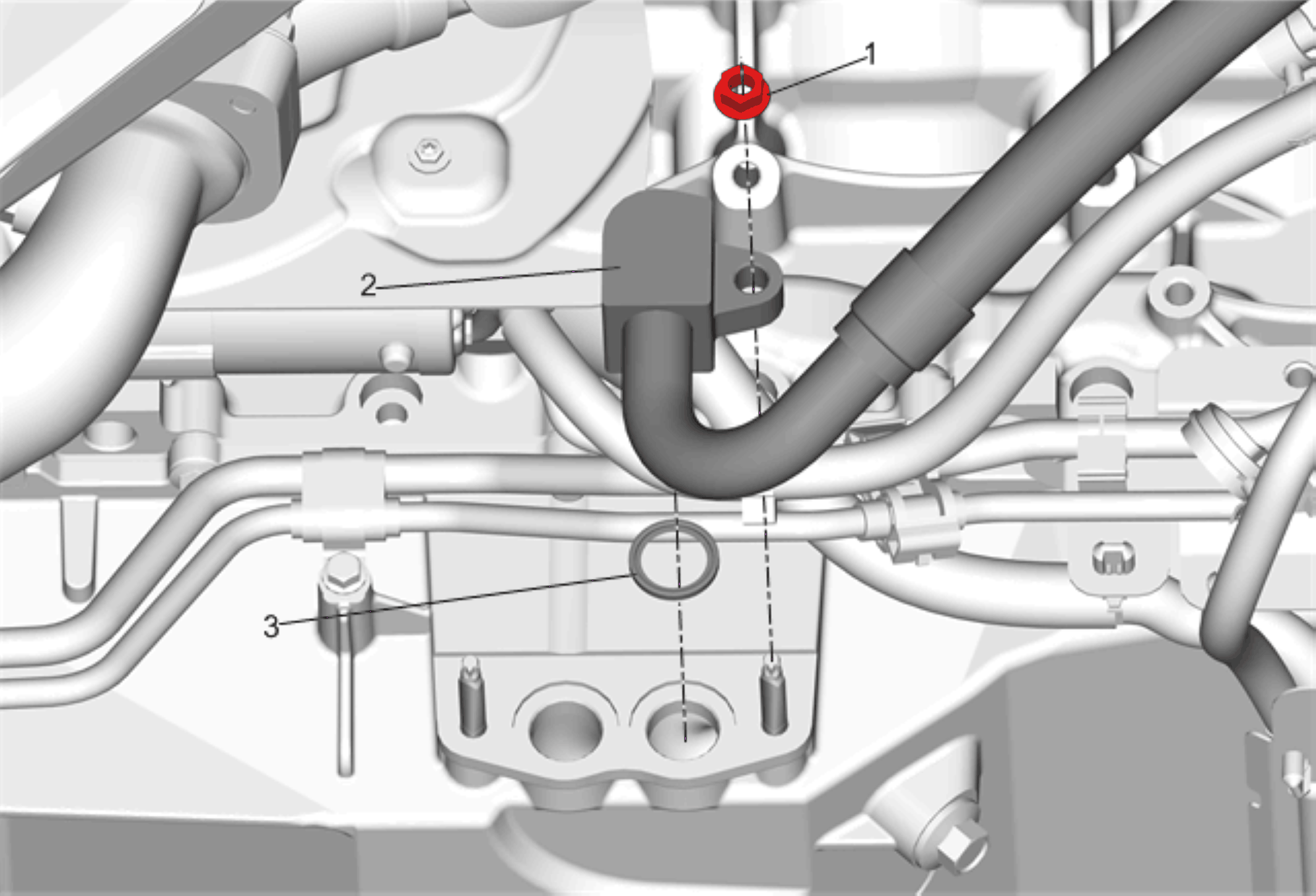

    2. Fig 1: Oil Inlet Hose
    GM3681578Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Using a NEW oil seal (3), install the oil inlet hose (2) and nut (1) to the oil pan. Tighten the inlet hose to oil pan nut to 22 N.m (16 lb ft).
    3. Fig 2: Oil Tank Inlet Hose And Seal
    GM3681349Courtesy of GENERAL MOTORS COMPANY
  3. Using a NEW oil seal (3), install the oil inlet hose (2) and nut (1) to the oil tank. Tighten the inlet hose to oil tank nut to 22 N.m (16 lb ft).
  4. Change the engine oil. Refer to Engine Oil and Oil Filter Replacement (LSA, LS3, L99) Engine Oil and Oil Filter Replacement (LS7) .
